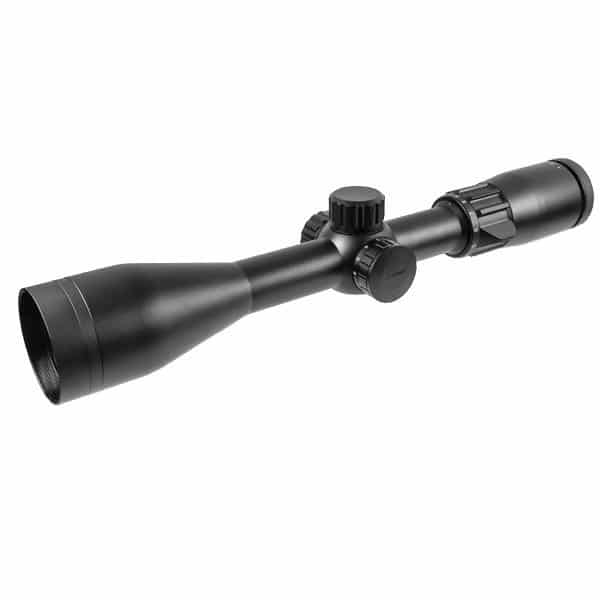

Truglo INTERCEPT Illuminated Reticle Hunting Scope TG8541BIB
Designed to meet the demands of practical hunters, INTERCEPT™ offers a bright image, generous eye relief, and an illuminated glass-etched reticle for optimum clarity and contrast. With the choice of a precise duplex reticle, or an MOA-based bullet drop-compensating reticle, INTERCEPT provides options for all hunting styles. Aggressively machined grip surfaces, covered turrets, and an included neoprene scope cover are designed for practical and effective use when operating conditions are less than ideal.
- Available in 3-9x43mm (TG8539BI, TG8539BIB) and 4-12x44mm (TG8541BI, TG8541BIB) magnification ranges
- Glass-etched reticle can be used without illumination (black crosshairs)
- Water-resistant / Fogproof / Nitrogen gas-filled
- Specially formulated multi-coating provides maximum brightness, clarity, and contrast
- Aggressive grip machining on control surfaces (zoom ring and turret caps) for easy use with winter gloves
- Protective caps cover fingertip-adjustable windage and elevation turrets
- Available with a duplex reticle or an MOA-based bullet drop-compensating reticle
- One-screw turret dial design to easily slip the dial back to zero after making an adjustment
- Rubber-coated speed-focus eyepiece
- Generous eye relief (3.75 - 4.10 inches)
- Durable scratch-resistant non-reflective matte finish
- Neoprene scope cover included
- Lifetime Limited Warranty
INTERCEPT User Manual
MODEL |
MAGNIFICATION |
OBJECTIVE LENS |
RETICLE |
TUBE SIZE |
TURRET STYLE |
CLICK ADJUSTMENT |
TG8539BI |
3-9x |
42mm |
Illuminated Duplex |
1 inch |
Covered hunting turrets with indexing zero |
1/4 MOA |
TG8539BIB |
3-9x |
42mm |
Illuminated BDC (MOA) |
1 inch |
Covered hunting turrets with indexing zero |
1/4 MOA |
TG8541BI |
4-12x |
44mm |
Illuminated Duplex |
1 inch |
Covered hunting turrets with indexing zero |
1/4 MOA |
TG8541BIB |
4-12x |
44mm |
Illuminated BDC (MOA) |
1 inch |
Covered hunting turrets with indexing zero |
1/4 MOA |
ILLUMINATED BDC RETICLE
The INTERCEPT™ series offers a simple but effective drop-compensating reticle, calibrated in minutes of angle. The stadia lines can be referenced for any cartridge, and even be used for estimating targets range.
BDC holdover lines are 2, 4, 6, and 8-MOA below the reticle center.
TG8541BIB reticle is calibrated at 12x (max magnification.
