SureFire SOCOM Shim Kit 1/2-28 for FH556RC Flash Hider | Z-70031

Overview of the SureFire SOCOM Shim Kit 1/2-28 | Z-70031

Time Your Muzzle Device Right the First Time

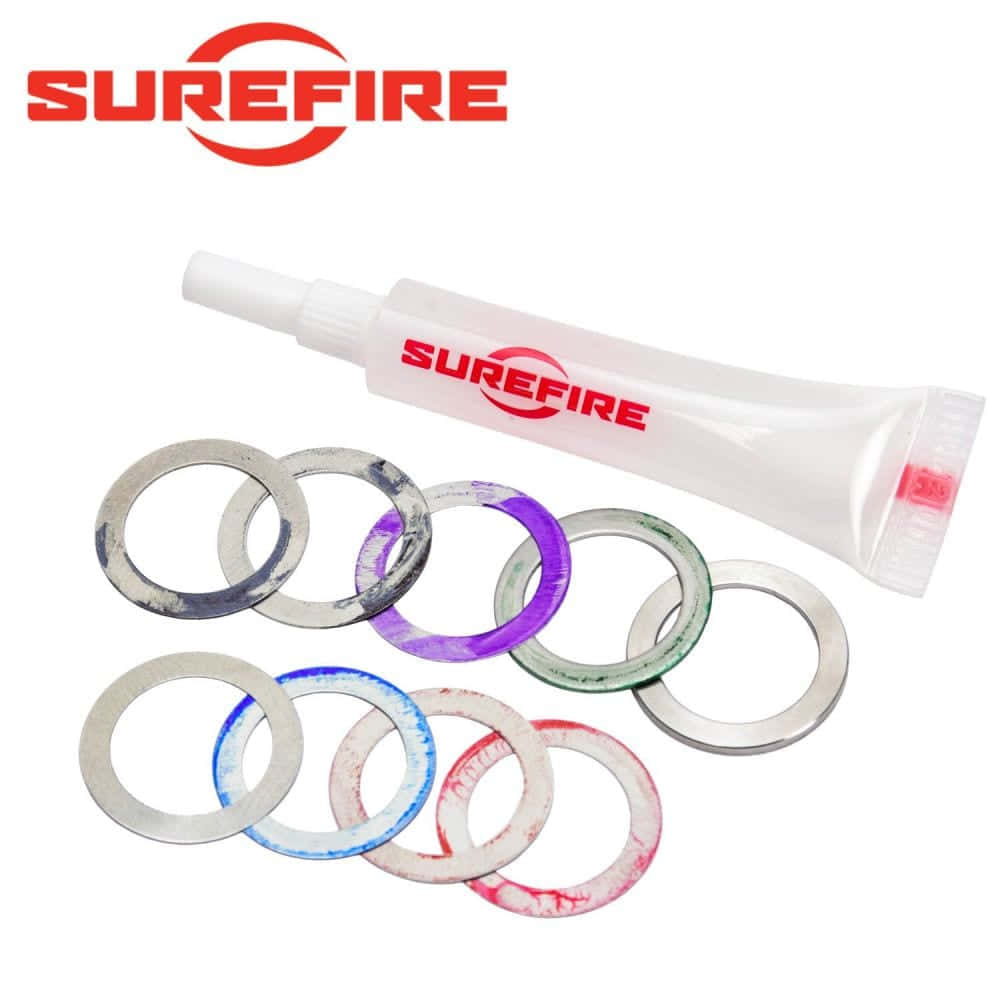

The SureFire SOCOM Shim Kit 1/2-28 (Z-70031) gives you nine stainless steel shims and a tube of Rocksett to index a muzzle device on a 1/2"-28 TPI threaded barrel. SureFire built this kit as the direct replacement shim set for its FH556RC-1/2-28 SOCOM 4-prong flash hider, and it works with other muzzle devices that accept a .700" outer diameter, .510" inner diameter shim.

Why Shims Matter

A flash hider or brake that stops a few degrees off its intended position vents gas the wrong way and can throw off a suppressor mount. Shims let you add exact thickness behind the device so it tightens down at the correct clock position.

• 9 shims, color coded by thickness
• .700" outer diameter for a flush, slim profile
• Fits .22, 5.56mm, and 9mm barrels with 1/2-28 threads

Agency armorers, patrol rifle officers, and home AR builders reach for this kit when installing or swapping a SureFire muzzle device.

Key Features

• Matched to SOCOM Devices: SureFire lists this kit as the replacement shim set for the FH556RC-1/2-28 flash hider, the 4-prong mount for SureFire SOCOM 5.56mm suppressors.
• Nine Thicknesses: Stack different shims to fine-tune lockup until the device stops exactly where you want it.
• Color Coded: Each color marks a specific thickness, so you pick the right shim without measuring it.
• Stainless Steel Construction: 300-series stainless steel resists corrosion, heat, and carbon buildup at the muzzle.
• Slim Profile: The .700" outer diameter sits flush with slim barrels and muzzle devices instead of sticking out past them.
• Rocksett Included: A tube of Rocksett, a high-temperature thread locking compound, holds the device in place under heat and recoil. One or two drops is enough.

Specifications

Compatibility

• Barrels: Any barrel threaded 1/2"-28 TPI, including most 5.56mm and .223 AR-15 barrels and many .22 and 9mm barrels.
• Muzzle devices: The SureFire FH556RC-1/2-28, plus other 1/2-28 flash hiders, brakes, and compensators that accept a .700" by .510" shim.
• Other SureFire 1/2-28 devices: SureFire's listed kit for the SF3P, SFA2, SFCT, SFMB, and WARCOMP 1/2-28 devices is the 12-shim Z-71652. Choose that kit if you want the exact set matched to those devices.
• Not compatible: 5/8"-24 threaded barrels for .30 caliber, 7.62mm, and .300 Blackout. SureFire sells separate 5/8-24 shim kits for those.
• Check first: Devices with a proprietary shim size or a larger rear bore may need a different kit.

Intended Users

Agency armorers use this kit to install and re-time SureFire SOCOM flash hiders on department patrol rifles. SWAT and patrol officers who run SureFire suppressors use it to keep their mounts aligned after a barrel swap. Military armorers and unit maintainers keep spare shims on hand for field service. Gunsmiths and home AR-15 builders use it to time flash hiders, brakes, and compensators on 1/2-28 barrels. Competitive shooters use it to set a brake at the exact position that controls muzzle rise.

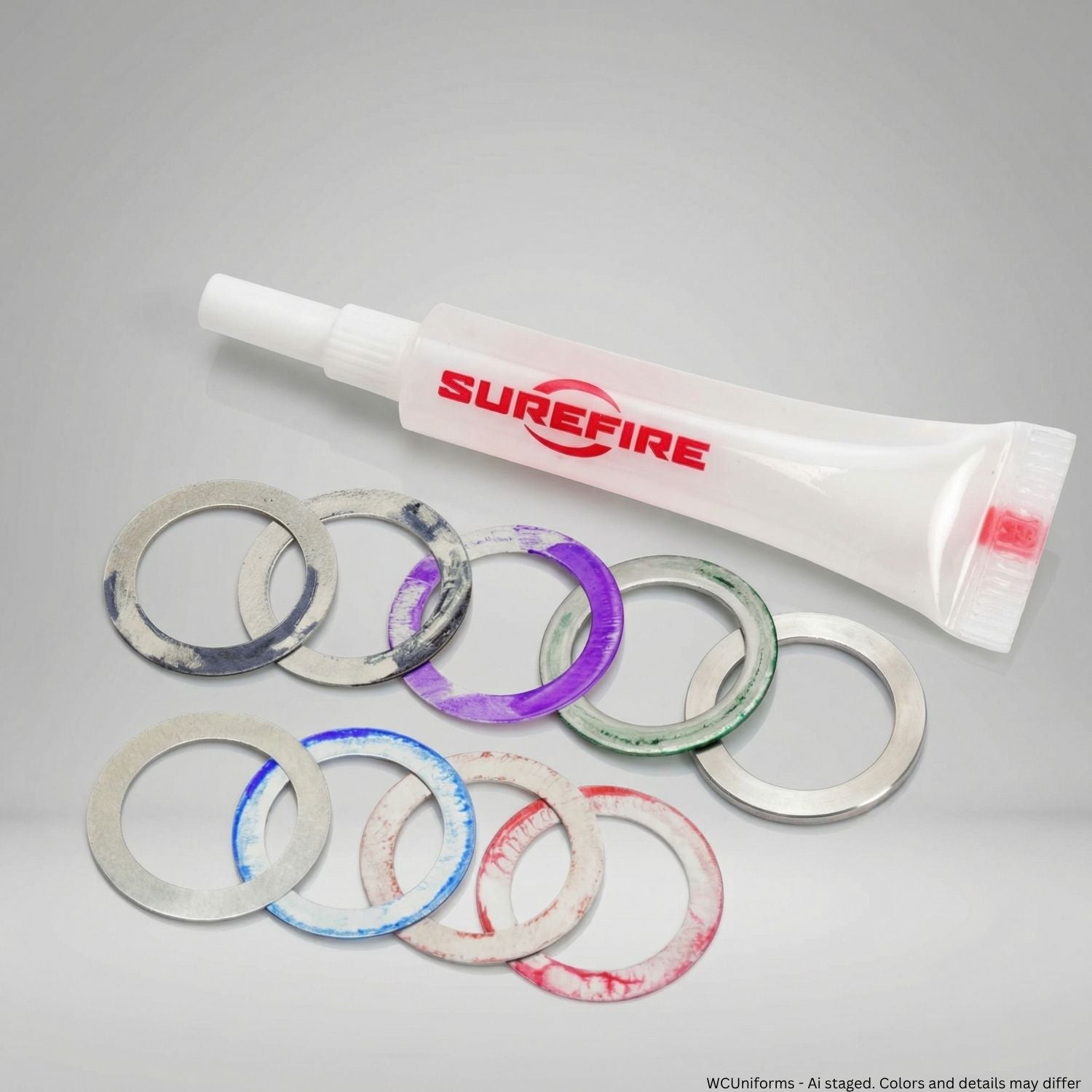

What's Included

• 9 stainless steel shims, color coded by thickness
• 1 tube of Rocksett

Not included: muzzle device, armorer's wrench such as the TRUGLO AR-15 Armorer's Wrench & Multi-Tool, upper receiver vise block, and a thread degreaser. Order these separately.

Available at WCUniforms

WCUniforms is a San Diego retailer of uniforms, tactical gear, and public safety equipment, owned by a U.S. Marine veteran and a U.S. Coast Guard veteran who also served as a city police officer and EMT. We have outfitted agency armorers and patrol officers since 2013, and this SureFire shim kit ships from our Michigan warehouse to customers across the United States. For a full bench setup, pair it with the Real Avid AR15 Armorer's Master Kit.
