Overview of the Streamlight TLR Battery Door Switch | 691136
The Streamlight TLR Switch Assembly 691136 is the genuine OEM rear battery door and switch for TLR-1 and TLR-2 series weapon lights. If your door cracked, the hinge snapped, or the switch paddles stopped working, this part puts your light back in service.
Your light head, LED, and body are often fine when the rear door fails. Swapping in the 691136 restores your gun light for a fraction of the cost of a new Streamlight TLR-1.
Built for Duty Lights
-

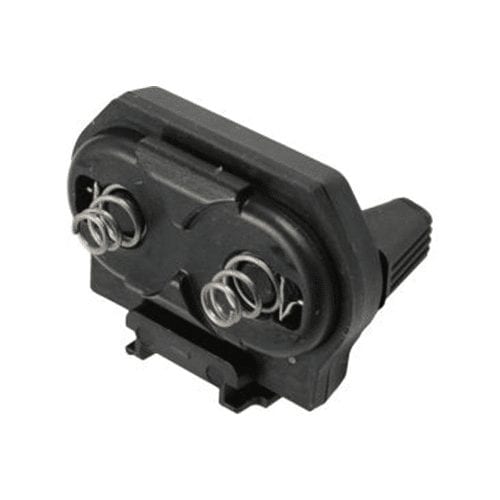

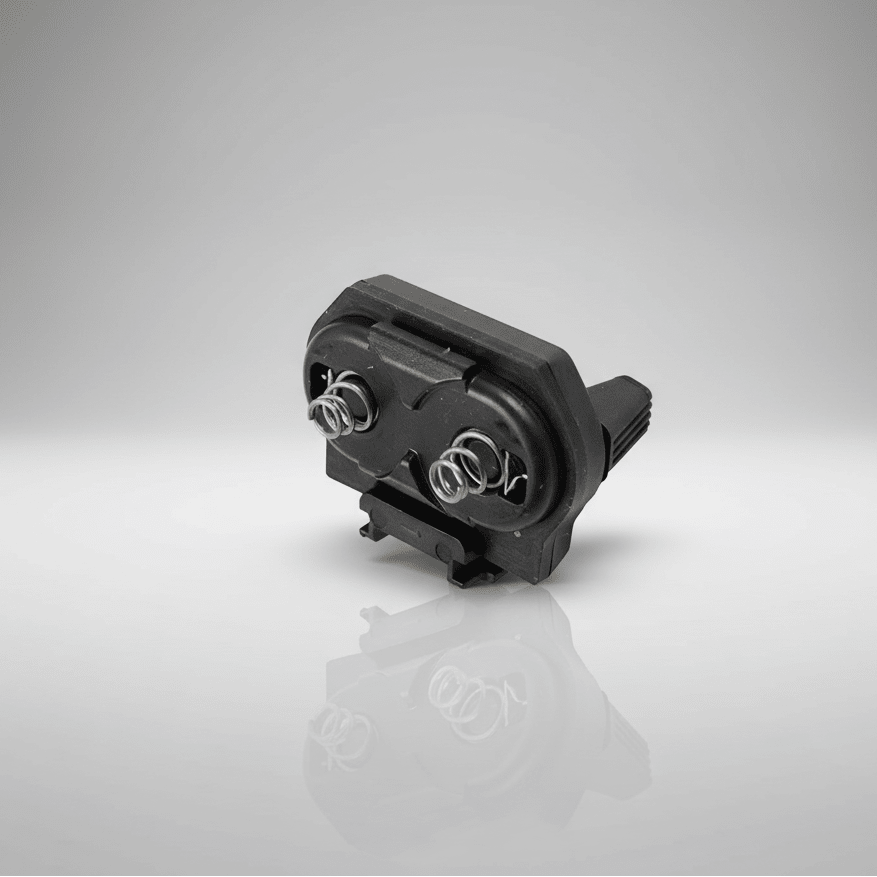

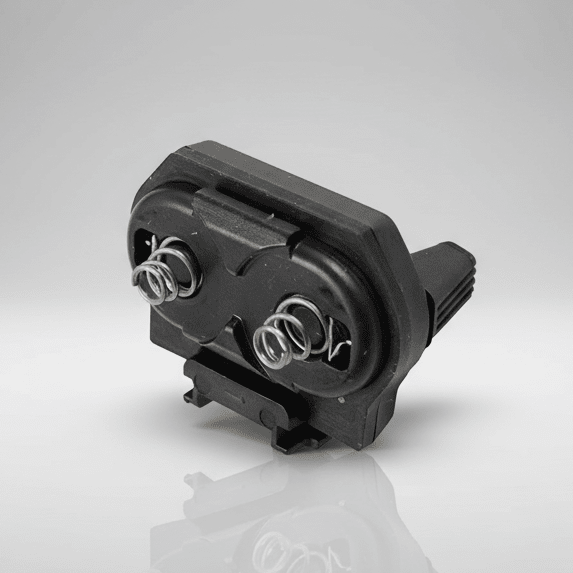

Complete rear assembly: door, ambidextrous switch paddles, and two spring battery contacts in one piece.
-
Exact OEM fit: matches the factory door on TLR-1 and TLR-2 lights.
-

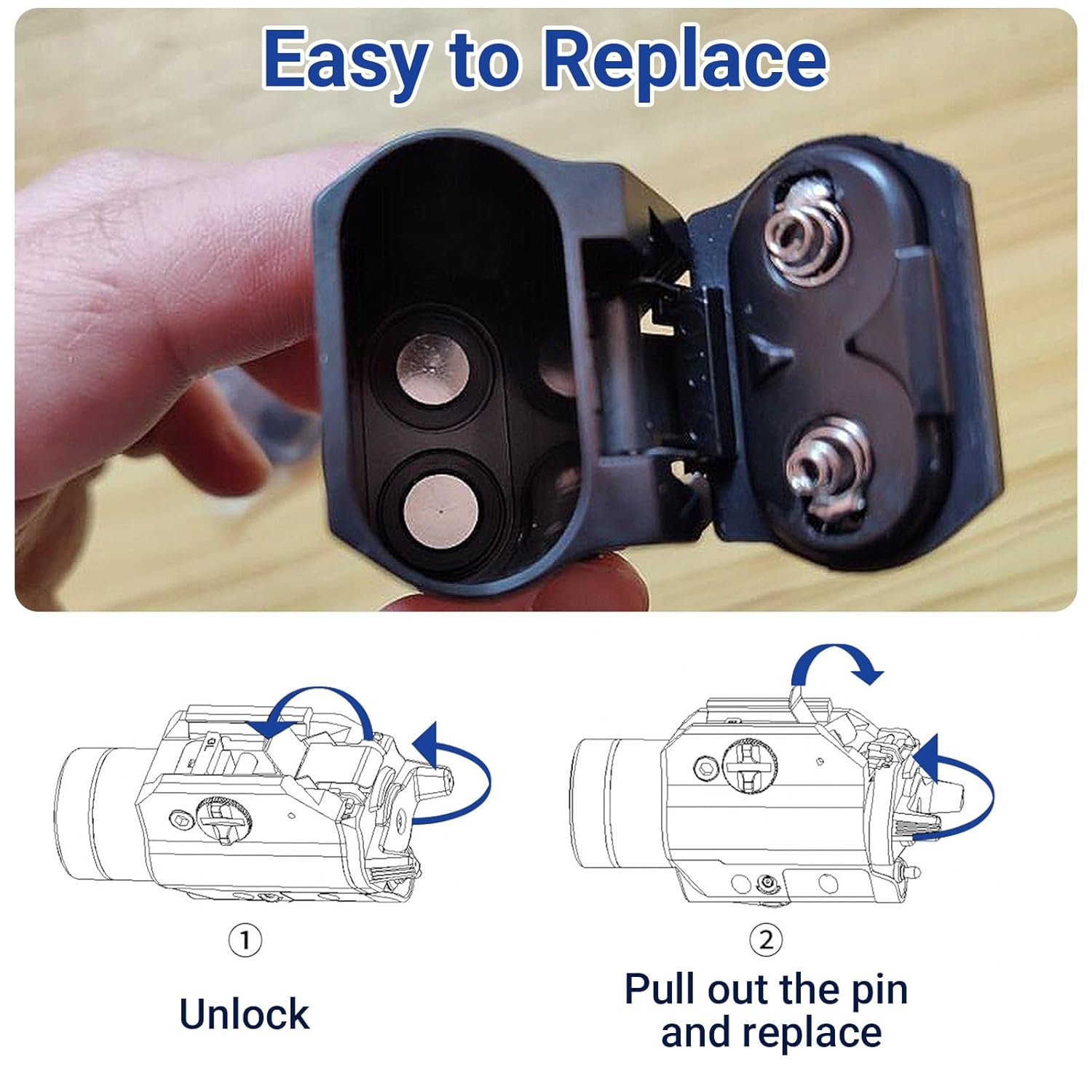

Fast swap: unlock the door, push out the hinge pin, and install the new door.
Who It Helps
Patrol officers, department armorers, and civilian home defenders use it to keep a trusted light on the gun.
Key Features
-
Genuine Streamlight part: OEM replacement sold under part number 691136.
-
Switch built in: the door carries the ambidextrous rear switch, so one part fixes a broken door and a worn switch.
-
Dual spring contacts: two coiled springs press against the two CR123A cells for steady power.
-
Wide compatibility: fits the TLR-1, TLR-1 HL, TLR-1 HP, TLR-1s, TLR-1s HP, TLR-1 HPL, TLR-1 Game Spotter, TLR-2, TLR-2 HL, TLR-2s, and TLR-2 IRW, per retailer fitment lists.
-

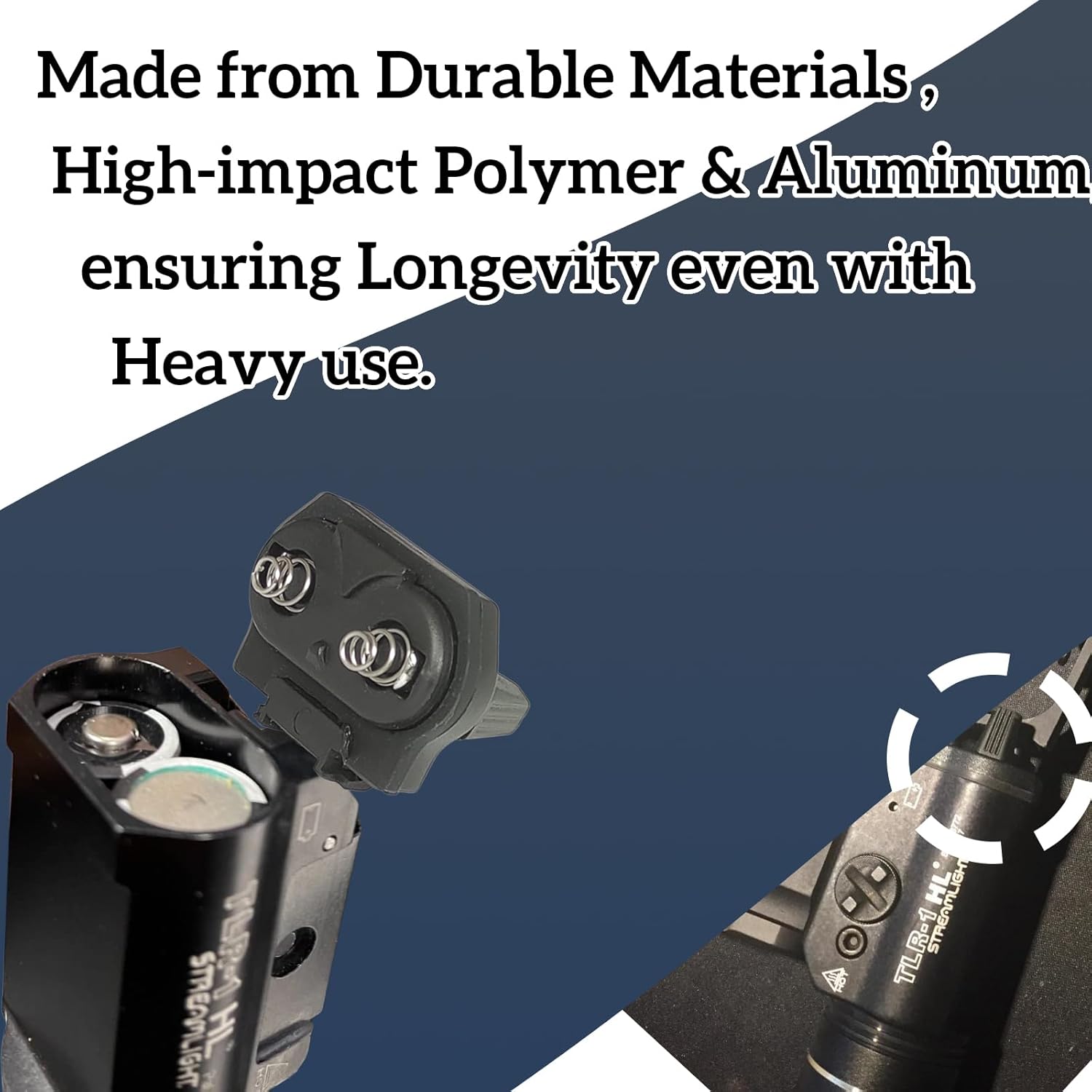

Black polymer housing: matches the factory finish on black TLR lights.
-
Simple install: no special tools; a small punch or needle nose pliers helps seat the pin.
Specifications
| Brand |
Streamlight |
| Product |
TLR Switch Assembly / Battery Door |
| MPN |
691136 |
| SKU |
691136 |
| Fits |
TLR-1 and TLR-2 series weapon lights |
| Switch |
Ambidextrous rear paddle switch |
| Battery Contacts |
2 coiled springs (2 x CR123A) |
| Material |
Polymer housing, metal spring contacts |
| Color |
Black |
| Quantity |
1 assembly |
| Country of Origin |
Taiwan |
Compatibility
-

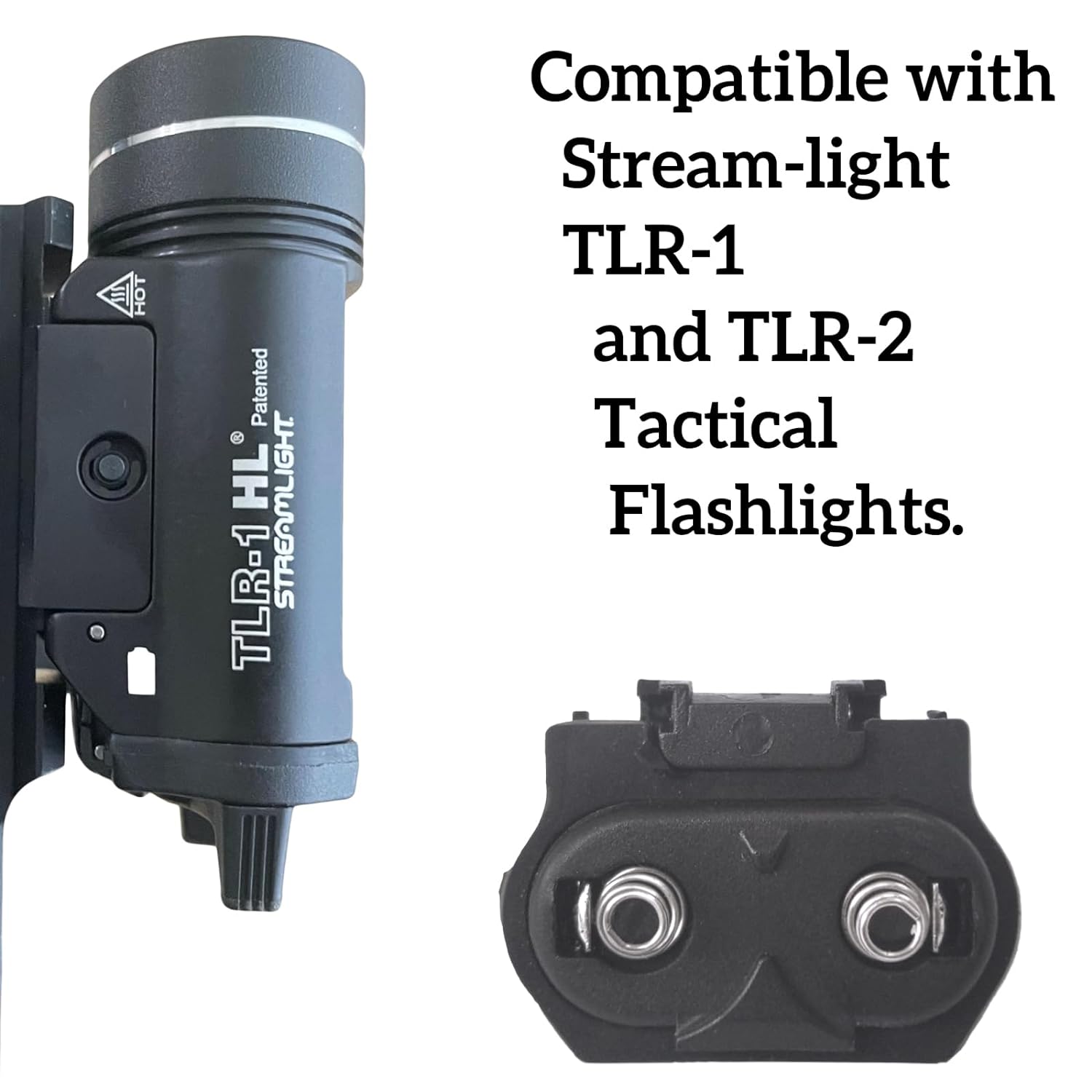

Fits: TLR-1, TLR-1 HL, TLR-1 HP, TLR-1s, TLR-1s HP, TLR-1 HPL, TLR-1 Game Spotter, TLR-2, TLR-2 HL, TLR-2s, and TLR-2 IRW.
-
Platforms: works wherever your TLR-1 or TLR-2 is mounted, including pistols, rifles, and shotguns.
-
Remote switch users: this door has no remote port. To run a tape or coil remote switch, choose the Streamlight TLR Remote Battery Door Switch 69130 instead.
-
Does not fit: TLR-3, TLR-4, TLR-6, TLR-7, TLR-8, TLR-9, TLR-RM, ProTac, or other Streamlight families.
-
Check first: match the model name printed on your light body before you order.
Intended Users
Patrol officers and deputies use it to repair a duty light after a drop, a holster strike, or a cracked hinge, without waiting on a full replacement.
Department armorers and range staff keep spares on hand so training and qualification lights stay running.
Military members, security officers, and civilian home defenders use it to restore a TLR-1 or TLR-2 they already trust on their pistol, rifle, or shotgun.
What's Included
- 1 x Streamlight TLR Switch Assembly / Battery Door, part 691136
Not included: the metal hinge pin (reuse the pin from your original door), installation instructions, and CR123A lithium batteries. Order these separately.
