Streamlight ProTac Rail Mount HL-X Laser USB Long Gun Light 88090

Overview of the Streamlight ProTac Rail Mount HL-X Laser | 88090

Light and Laser in One Rail-Mounted Unit

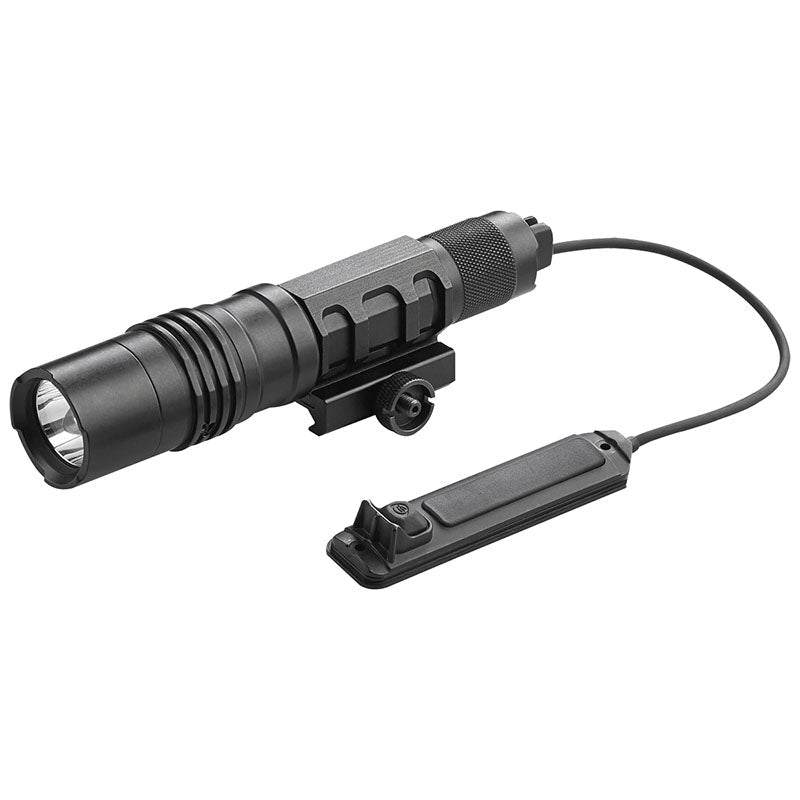

The Streamlight ProTac Rail Mount HL-X Laser USB (88090) is a 1,000-lumen long gun light with a fully integrated red aiming laser. It clamps directly to a MIL-STD-1913 Picatinny rail on your rifle, carbine, or shotgun, so you can light up a dark room and put a laser on target without crowding your rail with a second device.

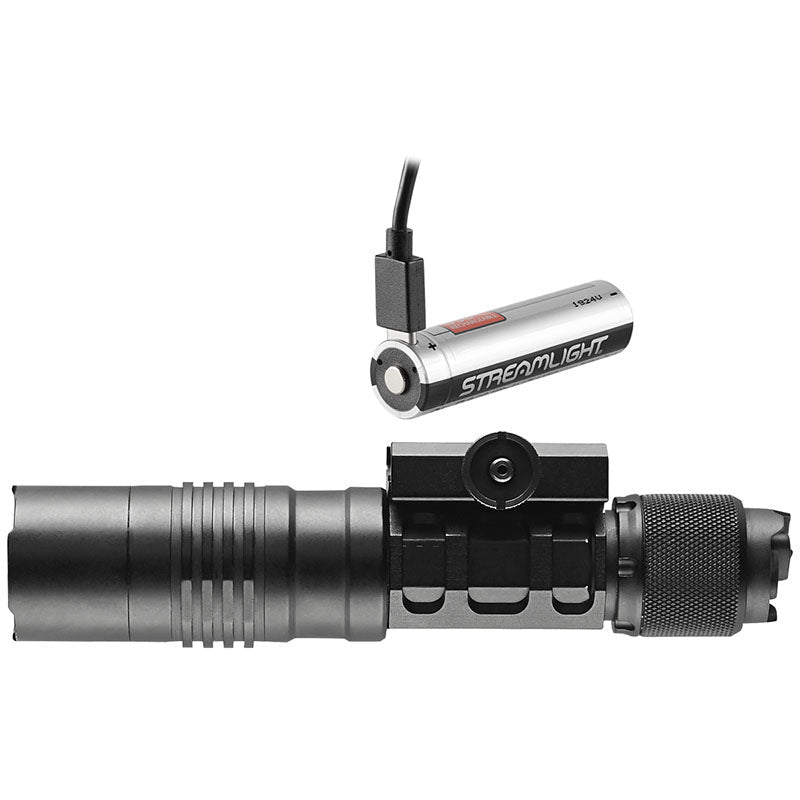

This USB version ships with Streamlight's SL-B26 protected Li-Ion rechargeable battery pack and a USB cord. If the pack runs low late in a shift, drop in two CR123A lithium batteries and keep working.

Built for Duty Use

Patrol officers, SWAT operators, and armed security staff get a remote pressure switch for a natural support-hand grip, plus a push-button tail switch. Streamlight machines the body from 6000 series aircraft aluminum and rates it IPX4 for water resistance.

• 1,000 lumens and 18,200 candela on high
• 270 m beam distance
• Limited lifetime warranty from Streamlight

Key Features

• Integrated red aiming laser: Class 3R, 640 to 660 nm, under 5 mW output, with windage and elevation screws you adjust using the included Allen wrench.

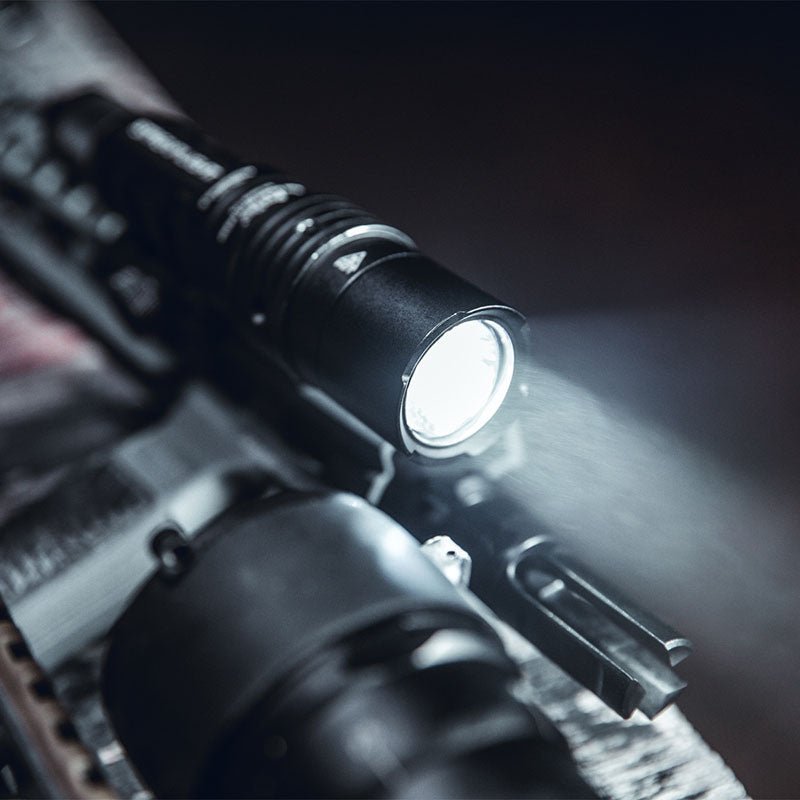

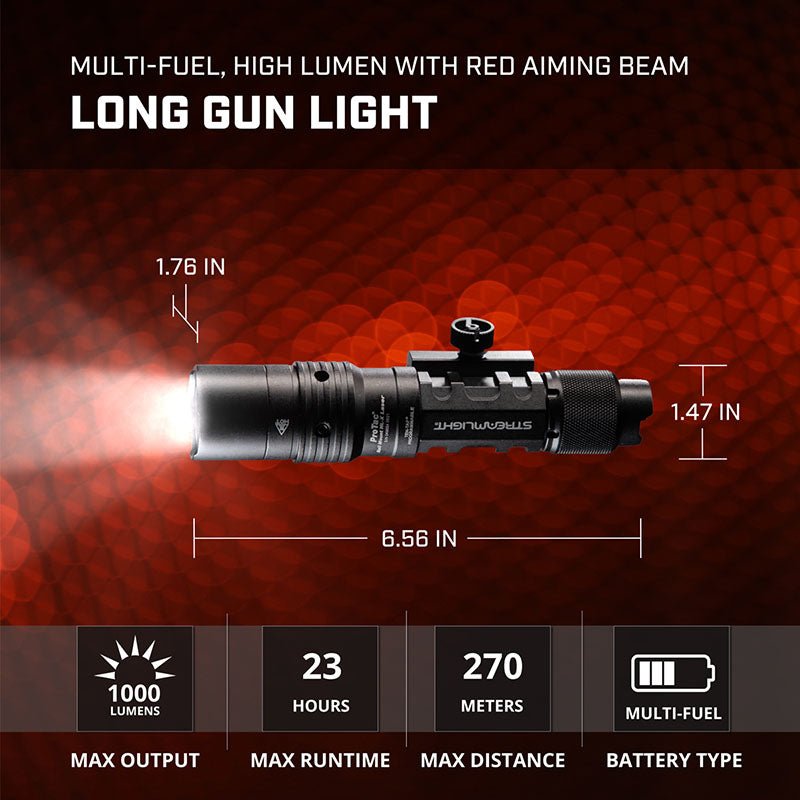

• High output: 1,000 lumens, 18,200 candela, and 270 m beam distance on high; 60 lumens, 1,100 candela, and 66 m on low.
• TEN-TAP programming: choose High/Strobe/Low, High only, or Low/High to match your agency's policy or your own preference.
• Multi-fuel power: runs on one SL-B26 USB rechargeable pack (included) or two CR123A lithium batteries.

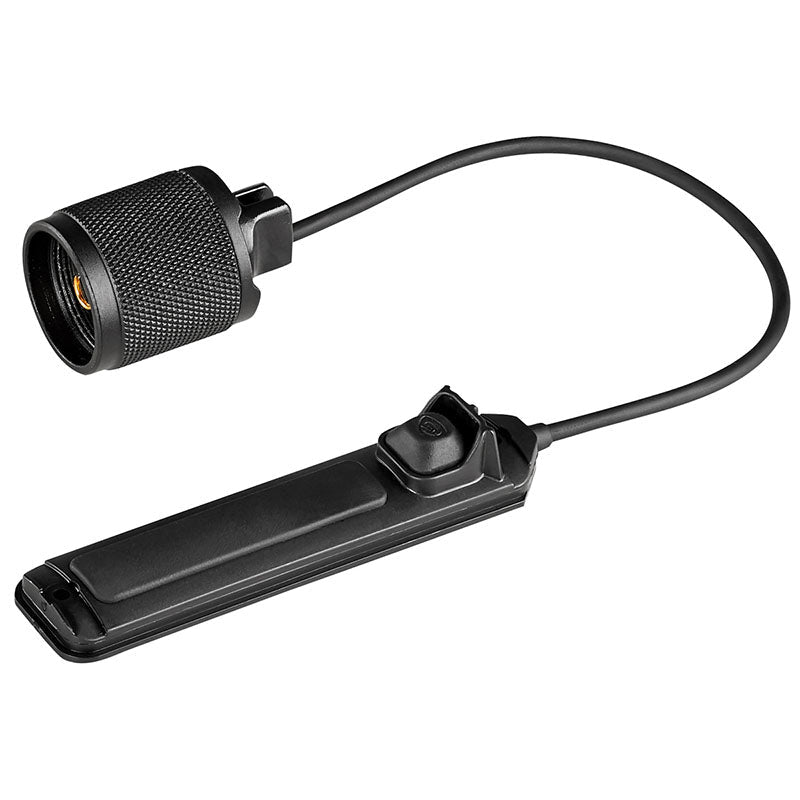

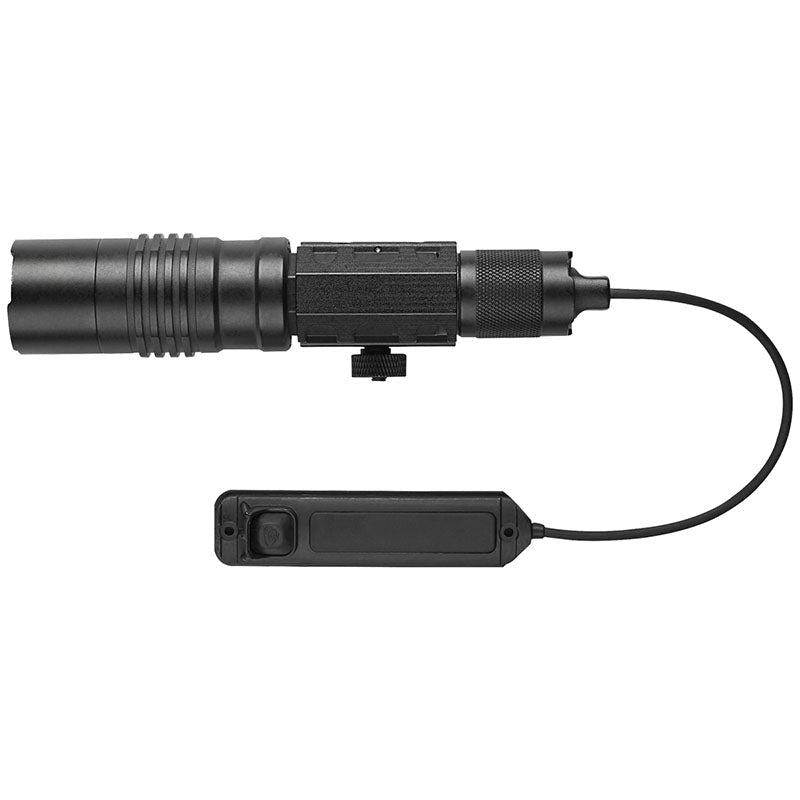

• Two switch options: the push-button tail switch has separate light and laser buttons; the remote pressure switch runs the light and laser together. Both offer momentary and constant-on operation.

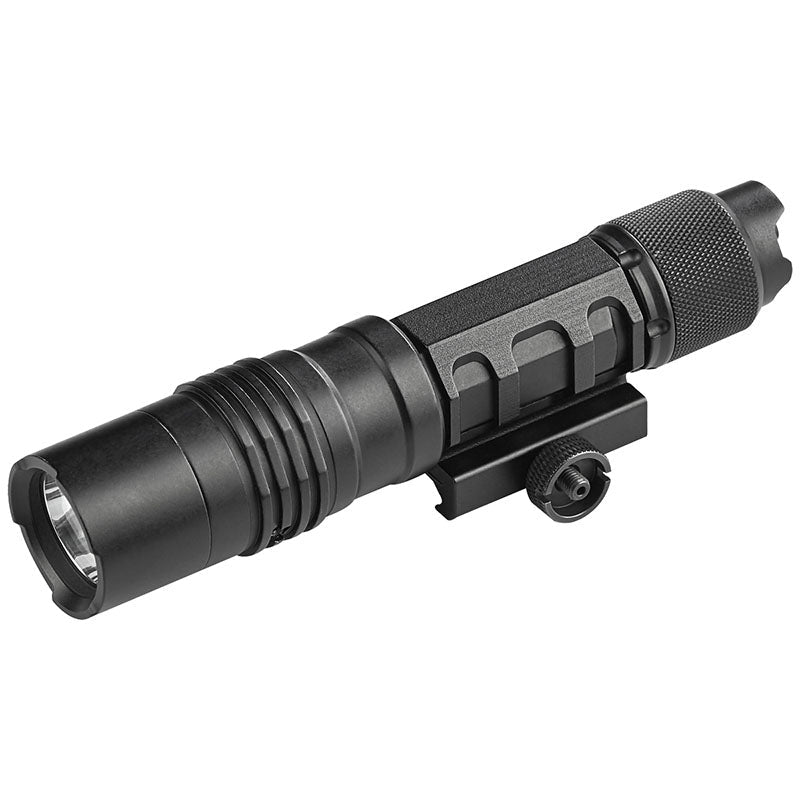

• Adjustable rail clamp: Streamlight states the rail grabber is separate from the light body, so you can rotate the light within the clamp and keep your windage and elevation settings.
• Rugged construction: anodized 6000 series machined aircraft aluminum, gasket-sealed glass lens, and IPX4 water resistance.
• Proven in the field: NTOA Member Tested and Recommended (2019).
• Care: clean the lens with a soft cloth and mild detergent, and keep the body O-ring lubricated.
• Warranty: Streamlight limited lifetime warranty; rechargeable batteries, chargers, switches, and electronics carry a 2-year warranty with proof of purchase.

Specifications

Compatibility

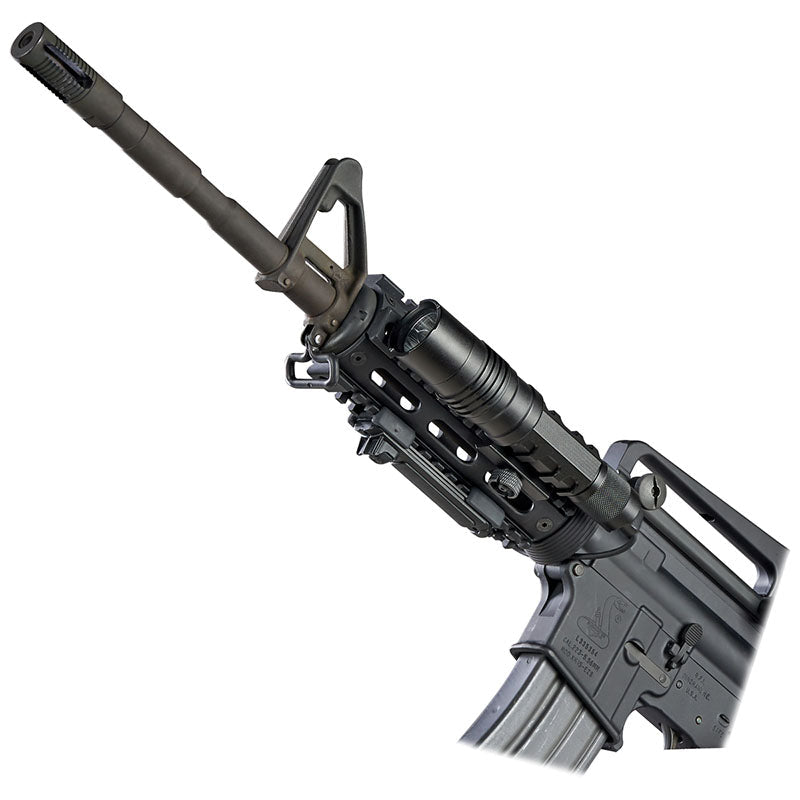

• Rails: fits any MIL-STD-1913 (Picatinny) rail, including AR-15 style rifles, carbines, and shotguns with a rail section. M-LOK and KeyMod handguards need a separate Picatinny rail segment.
• Batteries: one Streamlight SL-B26 pack, the Streamlight 18650 Battery with USB Charger 22101, or two CR123A lithium batteries. Streamlight states the light is not designed for rechargeable CR123 cells.
• Charging: charge the SL-B26 through its built-in USB port, or add the Streamlight 22100 Charger for 18650 Batteries cradle or the Streamlight 18650 Charger Kit USB 22010 for spare packs.
• Weather: the IPX4 rating covers rain and splashes. It is not rated for submersion.
• Need the CR123A kit or no laser? Streamlight model 88089 is the same light shipped with two CR123A batteries. If you don't need a laser, the Streamlight ProTac Railmount HL-X Weapon Light 88066 is shorter and lighter, at 5.43 in and 6.4 oz per Streamlight.

Intended Users

Patrol officers who carry a rifle or shotgun in the cruiser can identify threats and hold a laser aiming point in low light. SWAT and tactical team members get a remote pressure switch that keeps light and laser activation on the support hand during room clearing. Military personnel and firearms instructors get a duty-grade rail light with adjustable laser zero. Armed security officers and civilians who keep a carbine for home defense get a bright, rechargeable light that runs on common CR123A batteries in a pinch.

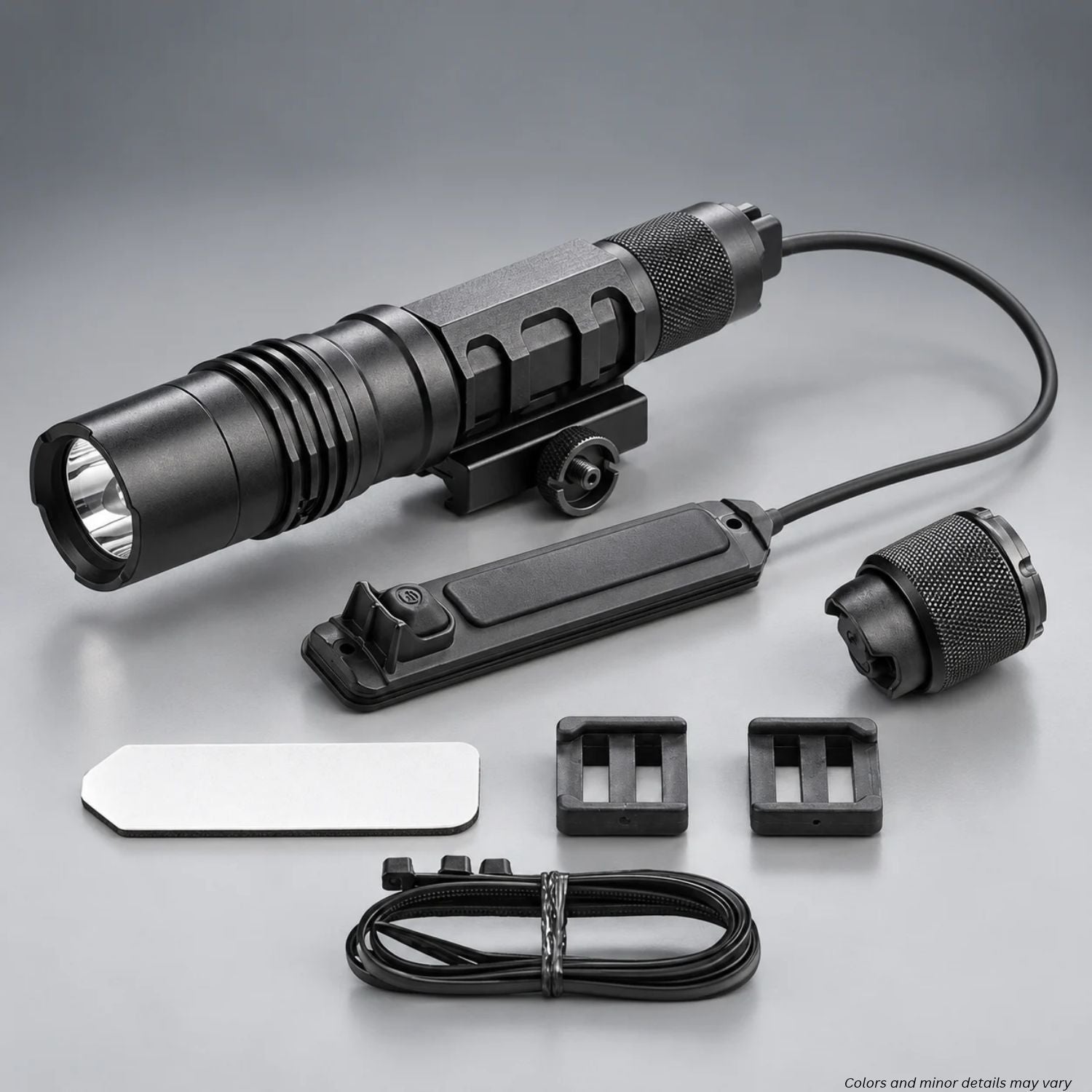

What's Included

• 1 Streamlight ProTac Rail Mount HL-X Laser with rail clamp
• 1 remote pressure switch
• 1 push-button tail switch
• 2 remote retaining clips
• 1 SL-B26 protected Li-Ion USB rechargeable battery pack
• 1 USB charging cord
• Mounting hardware with Allen wrenches
• Double-sided tape and zip ties for routing the remote switch cable

Not included: USB wall adapter, CR123A lithium batteries such as Streamlight 3V CR123A Lithium Batteries (2 Pack) 85175, spare SL-B26 packs such as the Streamlight SL-B26 USB Battery 2-Pack 22102, and extra Streamlight Remote Retaining Clip 88178 clips. Order these separately.

Available at WCUniforms

WCUniforms ships the Streamlight ProTac Rail Mount HL-X Laser USB from our Michigan warehouse to customers across the United States. WCUniforms is owned by a U.S. Marine veteran and a U.S. Coast Guard veteran who also served as a city police officer and EMT, so we know how much a dependable weapon light matters when the lights go out. Unlike big-box sellers, we stock the matching Streamlight batteries and chargers, so you can outfit your long gun in one order.
