Overview of the Radian Takedown and Pivot Pin Set | R0077

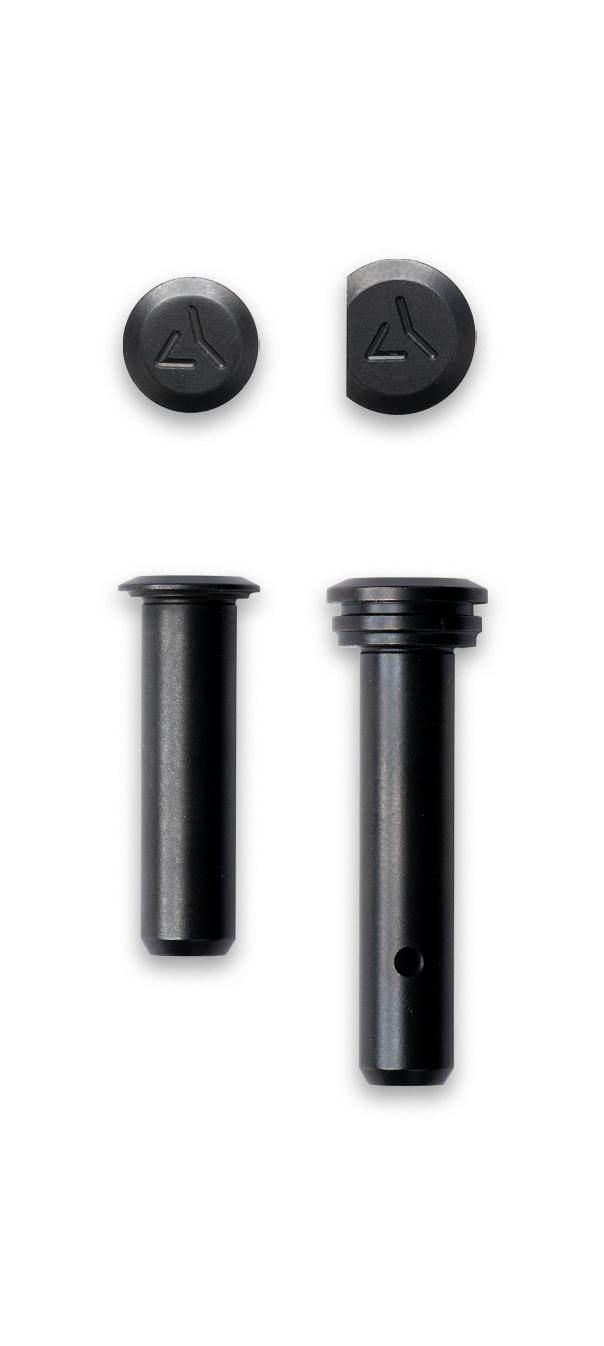

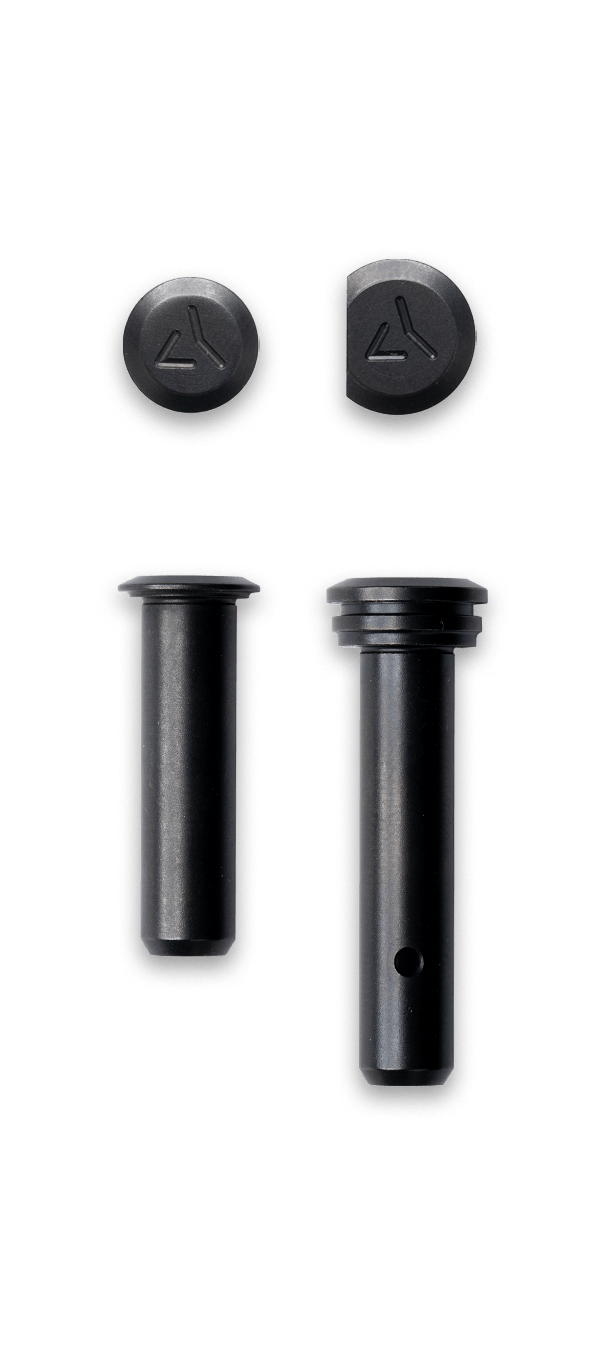

The Radian Takedown and Pivot Pin Set (R0077) replaces the two pins that hold your AR15 upper and lower receivers together. Radian Weapons CNC machines both pins from high-strength steel and finishes them in black salt bath nitride, with the Radian logo engraved on each pin head.
Stock pins can seize in a tight lower, and a stubborn pin during cleaning or a parts swap wastes time and scratches your receiver. This set is built to come apart cleanly.
Easier Field Stripping
-
Dimpled tails accept a cartridge tip or punch, so you push the pin out without marring the finish.
-
Fingernail groove around the forward pivot pin head gives you a solid grip to pull it free.
Who It Serves
Patrol rifle armorers, law enforcement officers, and civilian AR builders use this set to upgrade or refresh a standard AR15 or M16 lower receiver.
Key Features
-
Material: High-strength steel, precision CNC machined.
-
Finish: Black salt bath nitride for corrosion and wear resistance.
-
Removal: Dimpled tail on each pin for a cartridge tip or punch.
-
Grip: Fingernail groove around the forward pivot pin head.
-
Branding: Engraved Radian logo on both pin heads.
-
Complete set: Includes both pins plus 2 detents and 2 springs.
-
Fit: Built for standard AR15 and M16 lower receivers.
-
Warranty: Radian Weapons limited lifetime warranty, according to authorized retailers.
Specifications
| Brand |
Radian Weapons |
| Product |
Takedown and Pivot Pin Set |
| MPN |
R0077 |
| SKU |
RAD-R0077 |
| UPC |
817093020767 |
| Material |
High-strength steel, CNC machined |
| Finish |
Black salt bath nitride |
| Color |
Black |
| Pin Diameter |
0.250 in |
| Pieces |
6 (2 pins, 2 detents, 2 springs) |
| Compatibility |
Standard AR15 and M16 lower receivers |
| Country of Origin |
USA |
| Warranty |
Limited lifetime (Radian Weapons) |
Compatibility
-
Fits: Standard AR15 and M16 pattern lower receivers, including rifles, carbines, and AR pistols chambered in 5.56 NATO, .223 Remington, and .300 Blackout.
-
Does not fit: Large-frame AR10 or SR25 pattern receivers, which use different pins.
-
Fit note: Tolerances vary between receiver makers. Some billet lowers may feel snug at first.
-
Installation: Radian recommends that a qualified, trained gunsmith install its parts.
Intended Users
Agency armorers use this set to service patrol rifles and keep pins moving freely during routine inspections. Law enforcement officers and military veterans who maintain their own AR15s use it to make field stripping faster and cleaner. Civilian builders add it to a new lower or a custom build for a finished look. Home defense and competition shooters use it to refresh worn or stuck factory pins.
Building from the ground up? The Radian Builder Kit includes this enhanced pin set, and the Radian Extended Bolt Catch R0323 pairs well with it on a lower upgrade.
What's Included
- 1 x Radian takedown pin
- 1 x Radian pivot pin
- 2 x Detents
- 2 x Springs
Not included: A pivot pin detent installation tool, such as the Real Avid AR15 Pivot Pin Tool AVAR15PPT or the Wheeler Engineering Delta Series AR Pivot Pin/Roll Pin Install Tool 156243, plus a punch and eye protection. Order these separately.
Available at WCUniforms
WCUniforms is owned by a U.S. Marine veteran and a U.S. Coast Guard veteran who also served as a city police officer and EMT, so the rifles these pins go into are gear we know firsthand. Founded in 2013 and headquartered in San Diego, California, we ship this Radian set from our Michigan warehouse to customers across the United States. Unlike generic pin kits, this set adds removal features you will use every time you clean your rifle.
