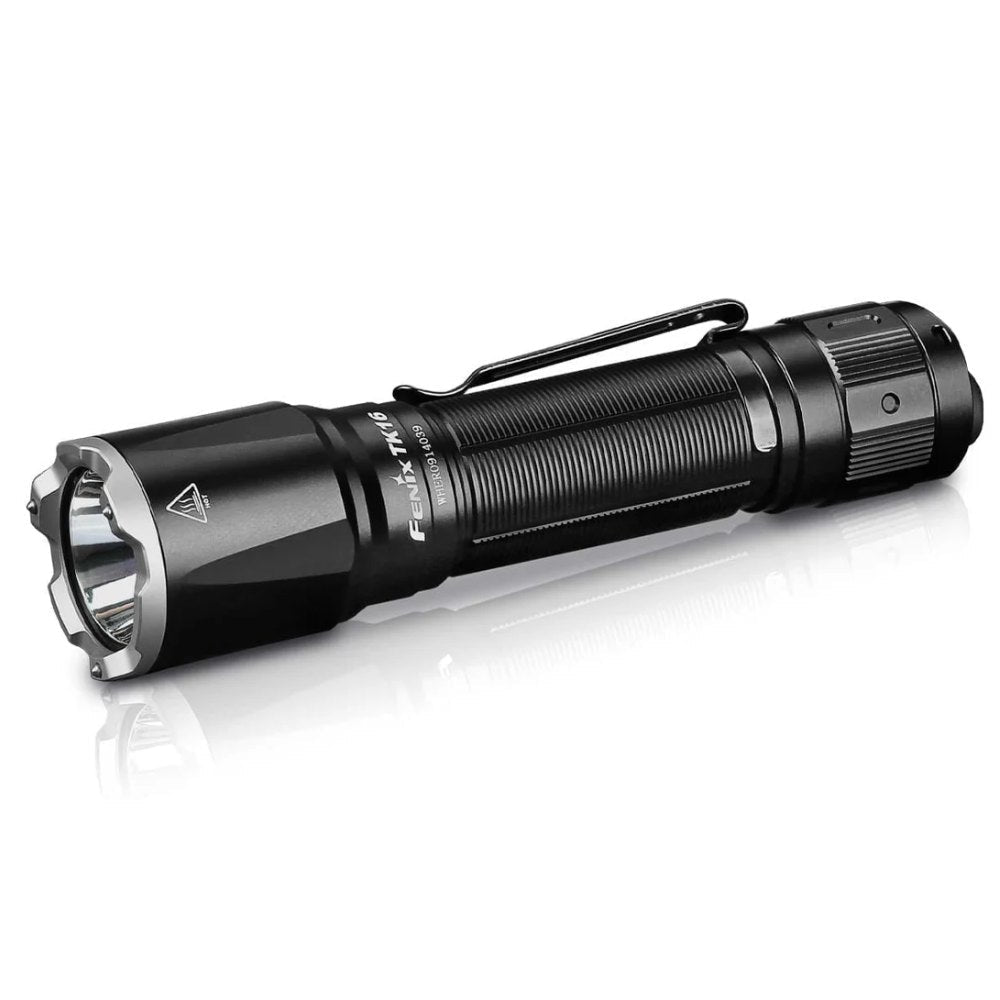

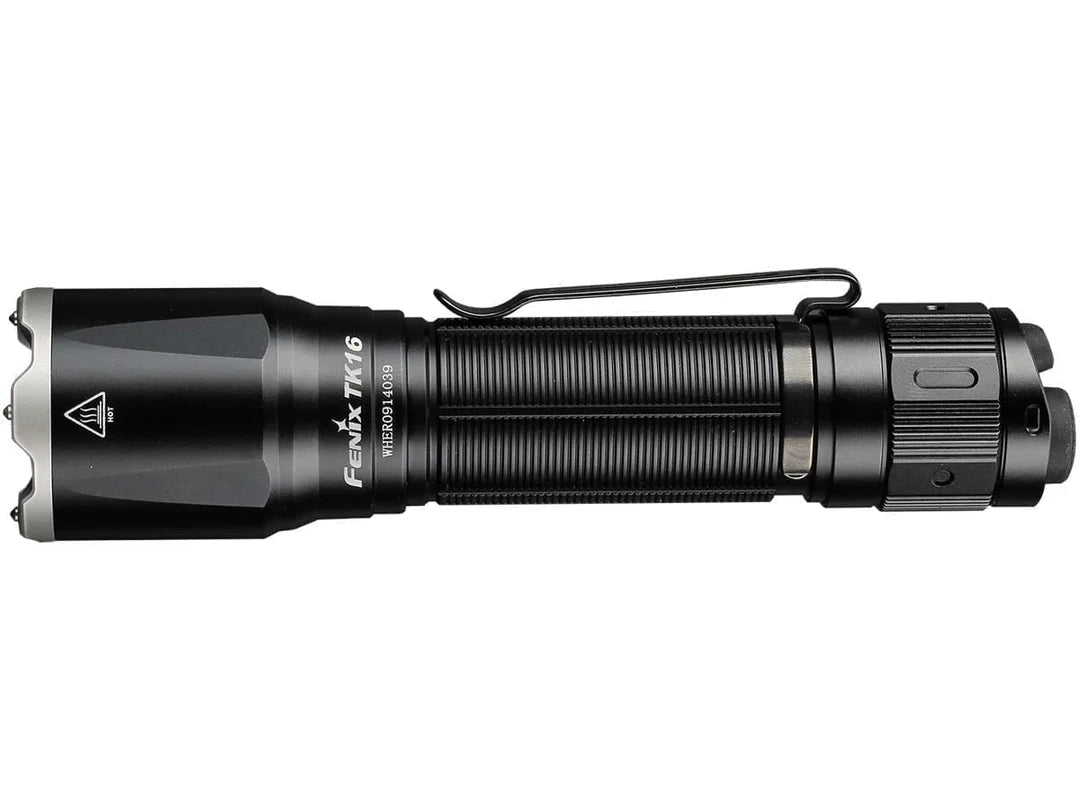

Fenix TK16 V2.0 Tactical Flashlight TK16V2BK

Fenix TK16 V2.0 Tactical Flashlight: Your Ultimate Tactical Companion

The Fenix TK16 V2.0 Tactical Flashlight stands as a paragon of innovation and reliability, offering exceptional performance and durability for any tactical situation. With an astounding maximum output of 3100 lumens and a beam that reaches up to 1247 feet (380 meters), this flashlight ensures you have the visibility you need, no matter the environment. Its dual tactical tail switches allow for quick and intuitive operation, providing access to six lighting modes to suit any scenario. Whether you’re in law enforcement, security, or simply need a dependable flashlight for outdoor adventures, the TK16 V2.0 is designed to meet and exceed your expectations.

Exceptional Performance and Versatility

At the heart of the TK16 V2.0 is the Luminus SST70 LED, which offers a lifespan of 50,000 hours. This advanced LED, combined with Fenix’s Advanced Pulse-Frequency Transmission System (APF), ensures consistent and powerful illumination. The flashlight features five brightness levels and a strobe mode, allowing you to adapt to any situation with ease. The highest setting delivers a staggering 3100 lumens, while the lowest provides a long-lasting runtime of up to 43 hours and 20 minutes, making it perfect for extended use.

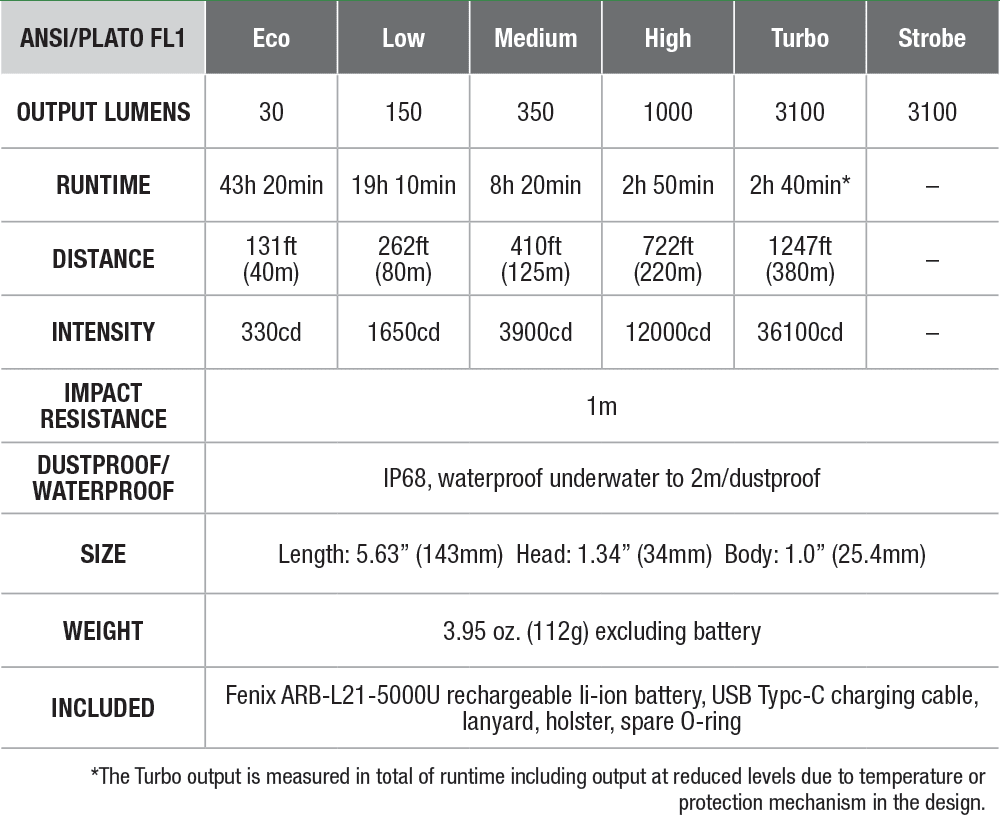

Key Features:

• Max Lumens: 3100
• Max Beam Distance: 1247 feet (380 meters)
• Max Runtime: 43 hours 20 min
• Lighting Modes: 5 brightness levels, and strobe
• Bulb Type: One Luminus SST70 LED
• Size: Length: 5.63” (143mm), Head: 1.34” (34mm), Body: 1.0” (25.4mm)
• Weight: 3.95 oz. (112g) excluding battery
• Battery: One included 21700 rechargeable li-ion battery
• Included: Fenix ARB-L21-5000U rechargeable li-ion battery, USB Type-C charging cable, lanyard, holster, spare O-ring
• Warranty: Limited Lifetime Guarantee from Fenix Lighting USA

Built for Durability and Tactical Use

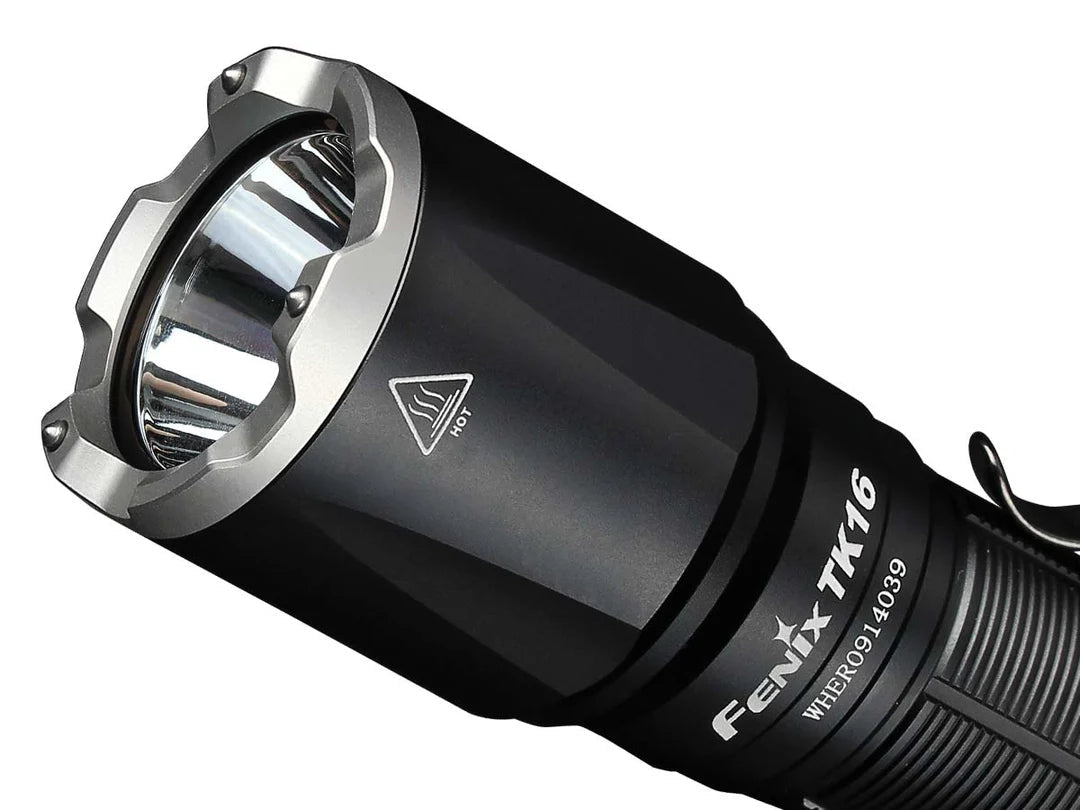

The Fenix TK16 V2.0 is constructed with high-grade materials to withstand the rigors of tactical operations. Its IP68 rating ensures that it is both dustproof and waterproof, capable of being submerged in up to 2 meters of water for 30 minutes. The flashlight's body is made from A6061-T6 aluminum, known for its excellent strength-to-weight ratio, and features a premium type HAIII hard-anodized anti-abrasive finish for enhanced durability. The stainless steel strike bezel, equipped with tungsten steel breaking tips, provides an added layer of functionality for emergency situations, allowing you to break glass or defend yourself if necessary.

Convenience and Reliability

In addition to its robust performance and build quality, the Fenix TK16 V2.0 is designed with user convenience in mind. The included 5000mAh li-ion battery can be easily recharged using the provided USB Type-C charging cable, ensuring that your flashlight is always ready when you need it. The dual tactical tail switches allow for instant activation and strobe mode, making it quick and easy to operate even in high-pressure situations. With a toughened ultra-clear glass lens featuring an anti-reflective coating, the TK16 V2.0 delivers a clear and focused beam, reducing glare and maximizing visibility.

The Fenix TK16 V2.0 Tactical Flashlight is more than just a light; it’s a critical tool for any tactical professional. With its unmatched performance, rugged durability, and user-friendly design, it’s the perfect companion for those who demand the best in their equipment. Illuminate your path with confidence and reliability with the Fenix TK16 V2.0

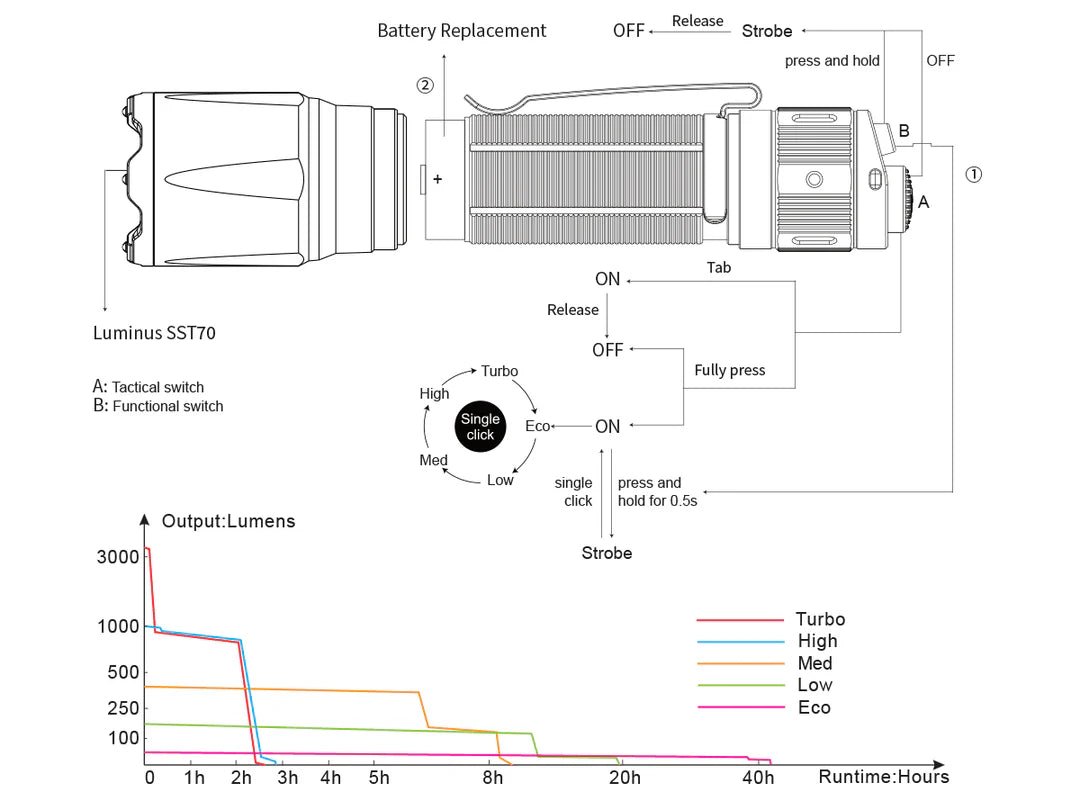

Operating Instructions:

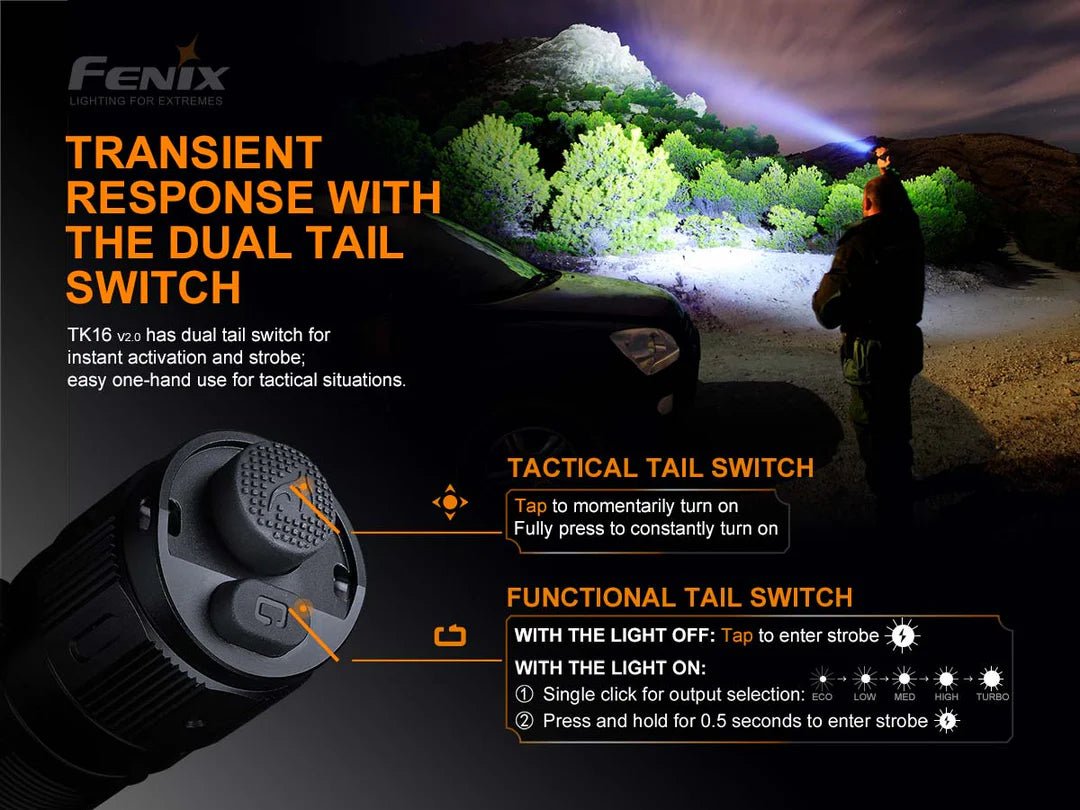

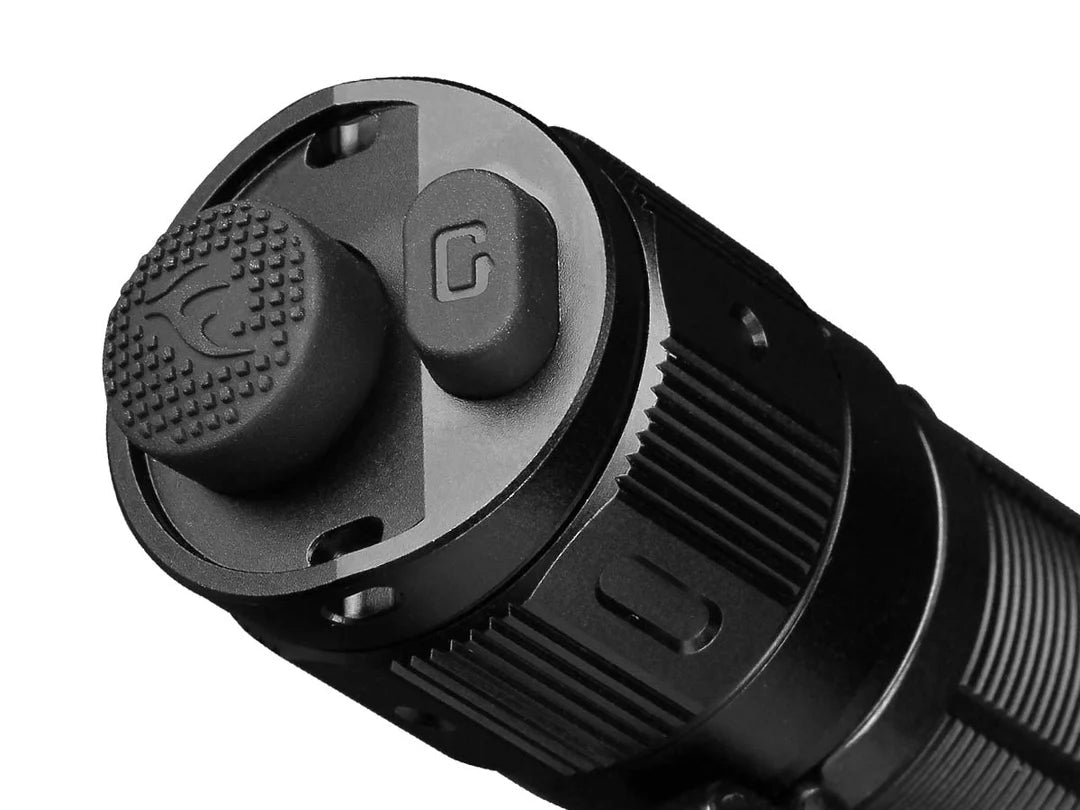

Switches of the Fenix TK16 V2.0 Tactical Flashlight

The round tail switch is the tactical switch for instant activation.

The oval tail switch is the functional switch for output selection and instant strobe.

On/off

Tap the tactical switch to silently and momentarily turn on the light, release the light will go out.

Fully press the tactical switch to constantly turn on the light, press again the light will go out.

Output Selection

With the light switched on, single click the functional switch to cycle through Eco→Low→Med→High→Turbo.

Strobe

With the light switched on, press and hold the functional switch for 0.5 seconds to enter strobe, click the functional switch once again to turn back to the general mode.

With the light switched off, press the functional switch to enter strobe, release the light will go out.

Intelligent Memory Circuit

The light memorizes the last selected output excluding strobe. When turned on again the previously used output of general mode will be recalled.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used on Turbo output levels for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user for the reselection of Turbo mode.

Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output mode, the light blinks 3 times every 5 minutes to remind you to timely recharge or replace the battery.

Charging

Remove the battery from the TK16 V2.0 and plug the included charging cord into the port on the battery, with the other end plugged into a USB wall brick.

Usage and Maintenance of the Fenix TK16 V2.0 Tactical Flashlight

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using an excellent quality battery.
• If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
• Unscrew the light tail or take out the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare．
• Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:
  A: The battery needs replacing.
  Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications).
  B: The threads, PCB board contact or other contacts are dirty.
  Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
  C: Use incompatible 21700 battery or the first-generation Fenix ARB-L21-5000 battery.
  Solution: Use the designated Fenix ARB-L21-5000U, or Fenix ARB-L21-4000P battery.

If the above methods don't work, please contact your authorized distributor.

Warning

• This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone's eyes.
• This flashlight will accumulate a lot of heat when used for extended periods, resulting in a high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
• All information provided in this manual is subject to change without prior notice

Frequently Asked Questions:

Q1. What are the key features and benefits of TK16 V2.0?

A:  1. Advanced Pulse-Frequency Transmission System (APF)

2. Instant activation and strobe with the dual tactical tail switches.

3. Stainless steel strike bezel with inlaid tungsten steel breaking tips.

4. Toughened ultra-clear glass lens with an anti-reflective coating.

Q2. What kind of LED is used in TK16 V2.0? And what are the beam angles?

A: LED: Luminus SST70 LED

Beam angles: spot beam angle - 11°, spill beam angle - 65°.

Q3. Does TK16 V2.0 have overheated protection?

A: Yes. The light will accumulate a lot of heat when used on Turbo output level for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user for the reselection of Turbo mode.

Q4. What battery does the TK16 V2.0 support?

A: It supports the designated Fenix ARB-L21-5000U, or Fenix ARB-L21-4000P battery.

Q5.  Can I bring the TK16 V2.0 on a plane?

A.  Apparently it seems to depend on the TSA Agent/Airport.  While our employees have not encountered an issue, we have received a report of TSA requiring the light be in checked bags due to the glass breaking tips.    As such, we highly recommend that you place the TK16 V2.0 into checked bags as a precaution in the event you encounter a TSA agent that will not allow it on the plane.   We would hate to have you lose the light to TSA.

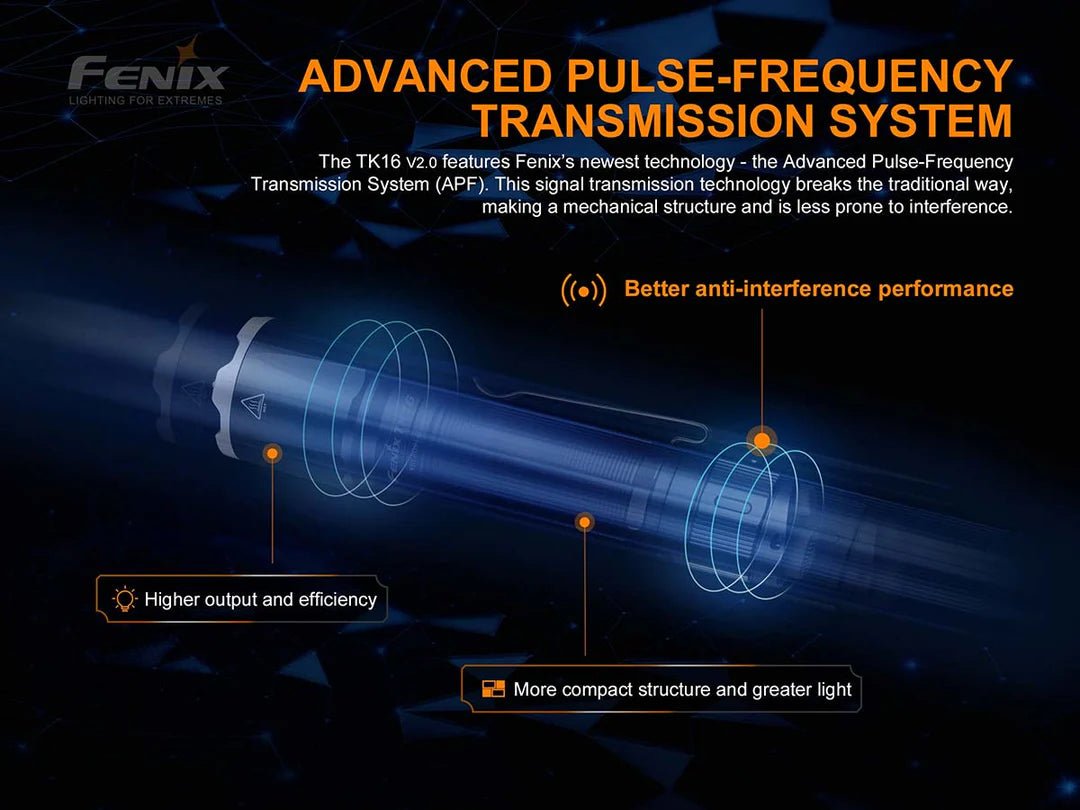

Q6.  What is the APF？

A：The APF (Advanced Pulse-Frequency Transmission System) was developed by the Fenix ​​laboratory, a major technology breakthrough in flashlight industry, allowing the tactical flashlight achieve a higher level of performance:

1. Takes light to the extreme. Traditional forward switches are limited by current, and it is difficult to achieve brightness above 2000 lumens. In the age of 21700 batteries gradually expanding, 3100 lumens tactical flashlights are almost impossible, whereas a flashlight using APF technology can reach these higher lumen levels.

2. Makes the functional tail cap simpler. Traditional multi-function tail caps need to achieve functionality through the double-layer body or additional channels. A flashlight using APF technology offers a strong reliable flashlight in a simple structure, specifically, a single layer body.

Q7. What should I do if the TK16 V2.0 needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 2-year free repair: Fenix will repair a light free of charge within 2 years of purchase if problems develop with normal use.

3. Lifetime maintenance: If repair is required after 2 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. If you need warranty service, fill out the warranty form at https://www.fenixlighting.com/pages/warranty-repairs to start your repair claim
