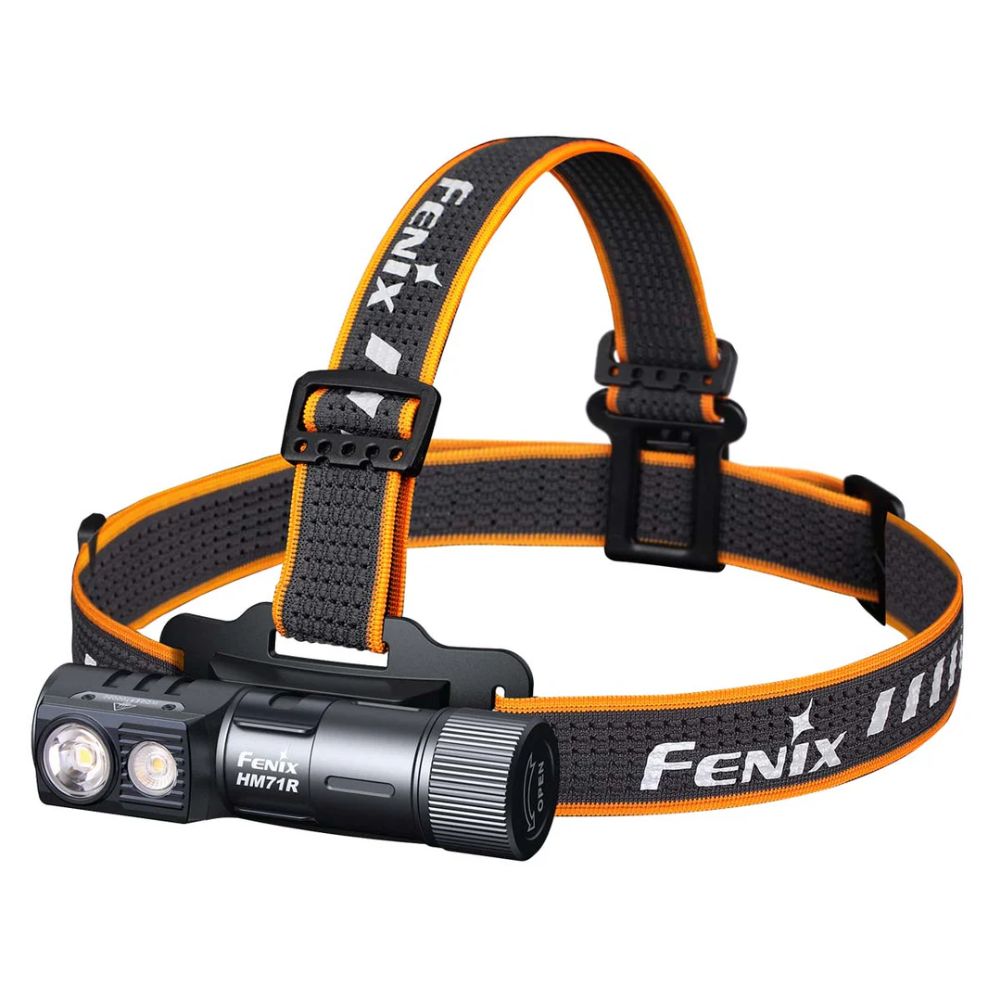

Fenix HM71R Rechargeable Headlamp

$119.95 $156.00 $36.05 Off

Shipping calculated at checkout.

Quantity
  • 3 In stock

FNX-HM71RSBK

Be careful to select ALL options (color, size, etc) before adding to cart

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Mastercard
  • Visa
Product Summary

The Fenix HM71R Rechargeable Headlamp offers a powerful 2700-lumen output with a beam distance of 755 feet. It features eight lighting modes, USB-C charging, and can be used as a headlamp or flashlight. Durable and versatile, it’s ideal for both professional and outdoor use.

Ships from: MI

Country of Origin: CN

MPN: HM71RSBKHM71RSBK

UPC:

Ask a question
Tags: Fenix, Lights, Ships from MI, Specialty & Wearable
Collections: Lights, Newest Arrivals, Products, Specialty & Wearable, Tactical & Duty Gear

Illuminate Your Path with the Fenix HM71R Rechargeable Headlamp


The Fenix HM71R Rechargeable Headlamp is designed to be the ultimate lighting solution for both professionals and outdoor enthusiasts. With a maximum output of 2700 lumens and a beam distance of up to 755 feet (230 meters), this headlamp provides unmatched brightness and clarity. Whether you're navigating a job site in the dark or exploring the wilderness at night, the HM71R ensures you can see and be seen.


Versatile Lighting Modes for Any Situation


This headlamp features eight distinct lighting modes to suit a variety of tasks and environments. From the high-intensity spotlight to the softer floodlight, the HM71R offers the flexibility you need. The floodlight's neutral light improves color rendering, making it ideal for detailed tasks, while the 5-lumen reading light is perfect for up-close work. The large, glove-friendly switch allows you to cycle through modes effortlessly, even in harsh conditions.


Key Features:

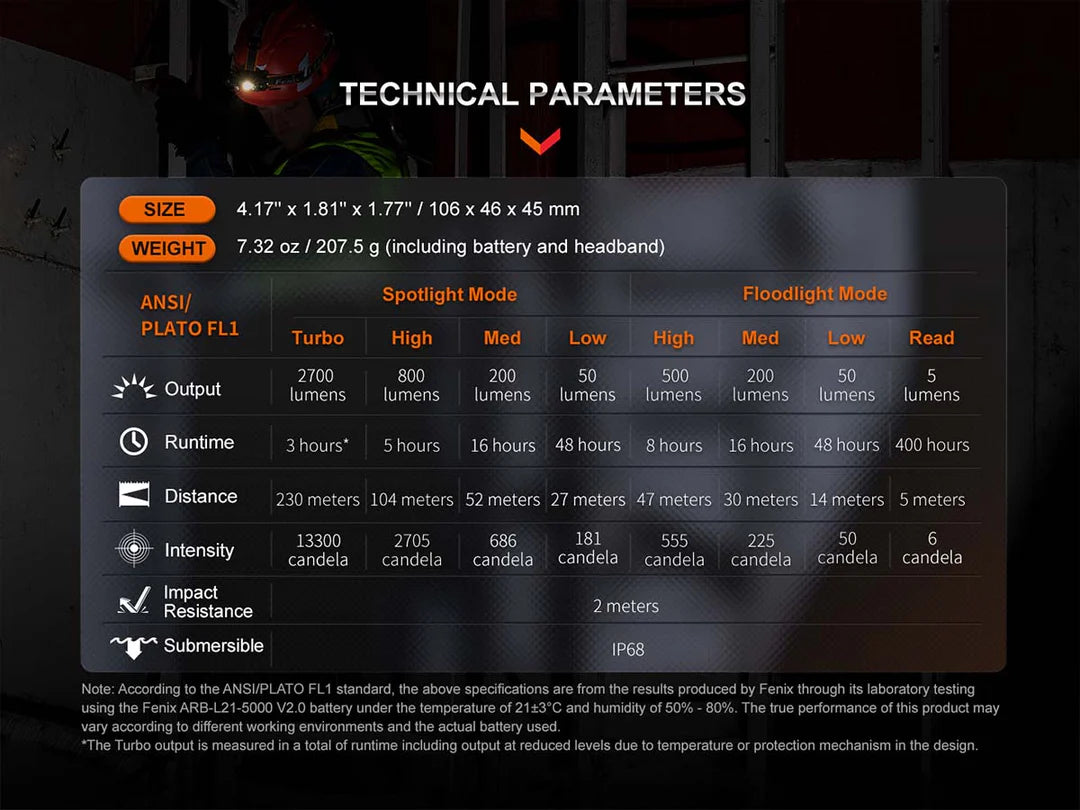

  • Max Lumens: 2700
  • Max Beam Distance: 755 feet (230 meters)
  • Max Runtime: 400 hours
  • Lighting Modes: Eight, including four spotlight levels and four floodlight levels
  • Bulb Type: Luminus SFT70 white light LED and Luminus SST20 CRI90 neutral white LED
  • Color Temperature: Spotlight: around 6000K, Floodlight: around 4000K
  • Size: 4.17” (106mm) x 1.81” (46mm) x 1.77” (45mm)
  • Weight: 7.32 oz. (207.5g) with battery and headband
  • Battery: 21700 rechargeable Li-ion battery (included)
  • Included Accessories: ARB-L21-5000 battery, USB Type-C charging cable, spare O-ring
  • Warranty: Limited Lifetime Guarantee from Fenix Lighting USA


Durability and Convenience Combined

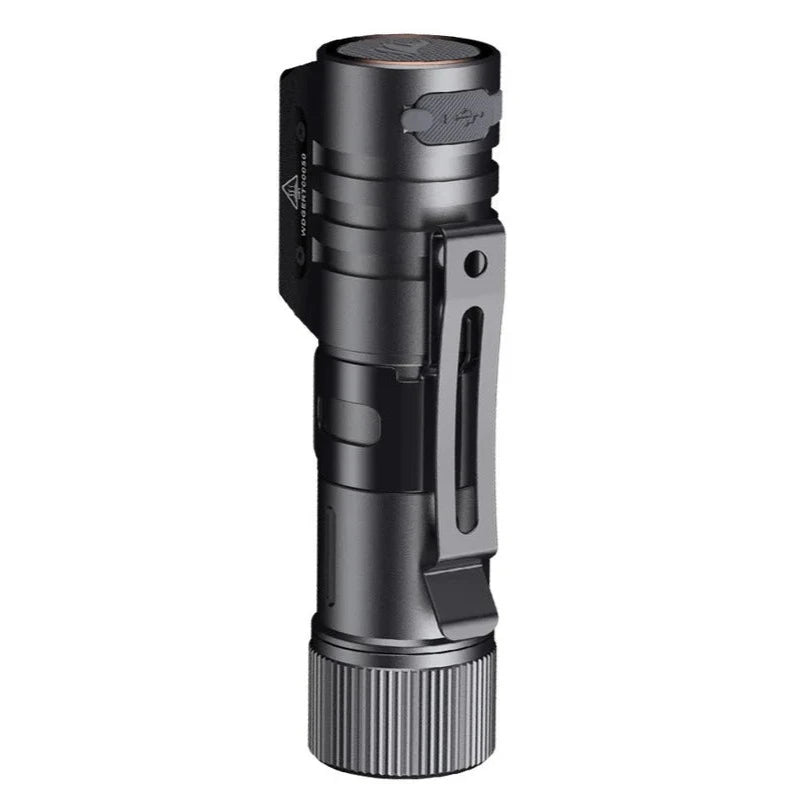

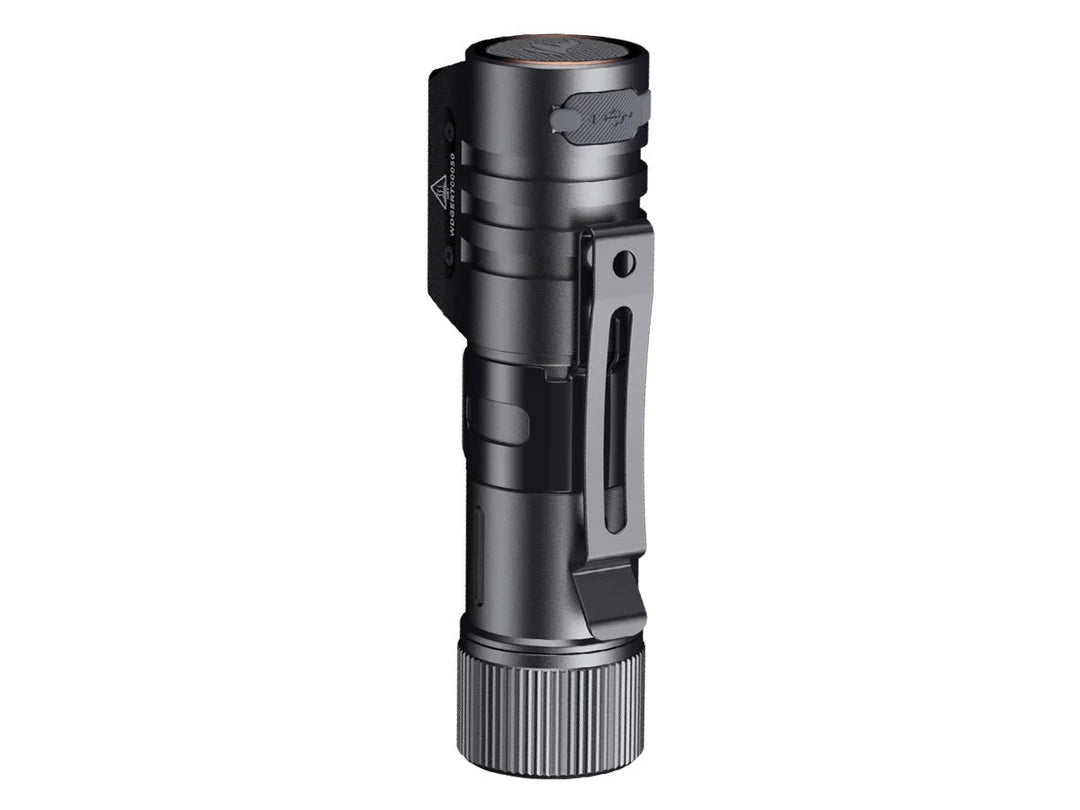

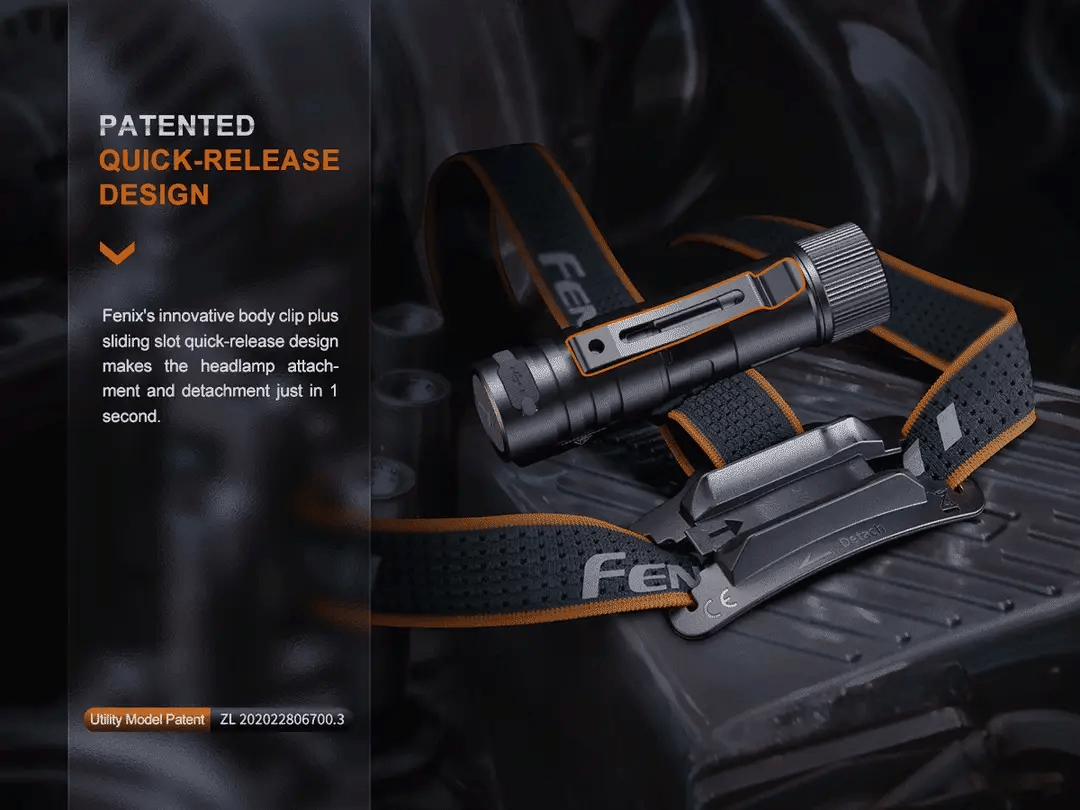

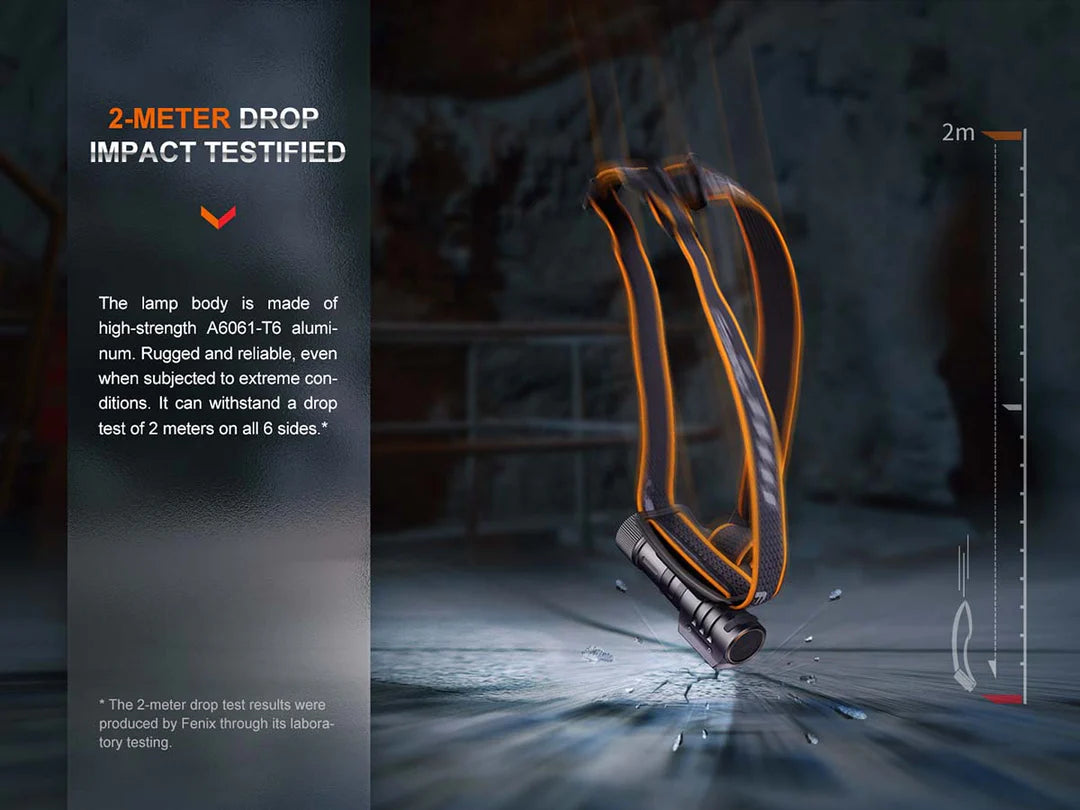

Constructed from durable A6061-T6 aluminum with a premium type HAIII hard-anodized anti-abrasive finish, the Fenix HM71R is built to withstand tough environments. The headlamp is not only robust but also highly functional. It can be detached from its base and used as a right-angle flashlight, and the magnetic base provides additional hands-free lighting options, making it a versatile tool for various applications.

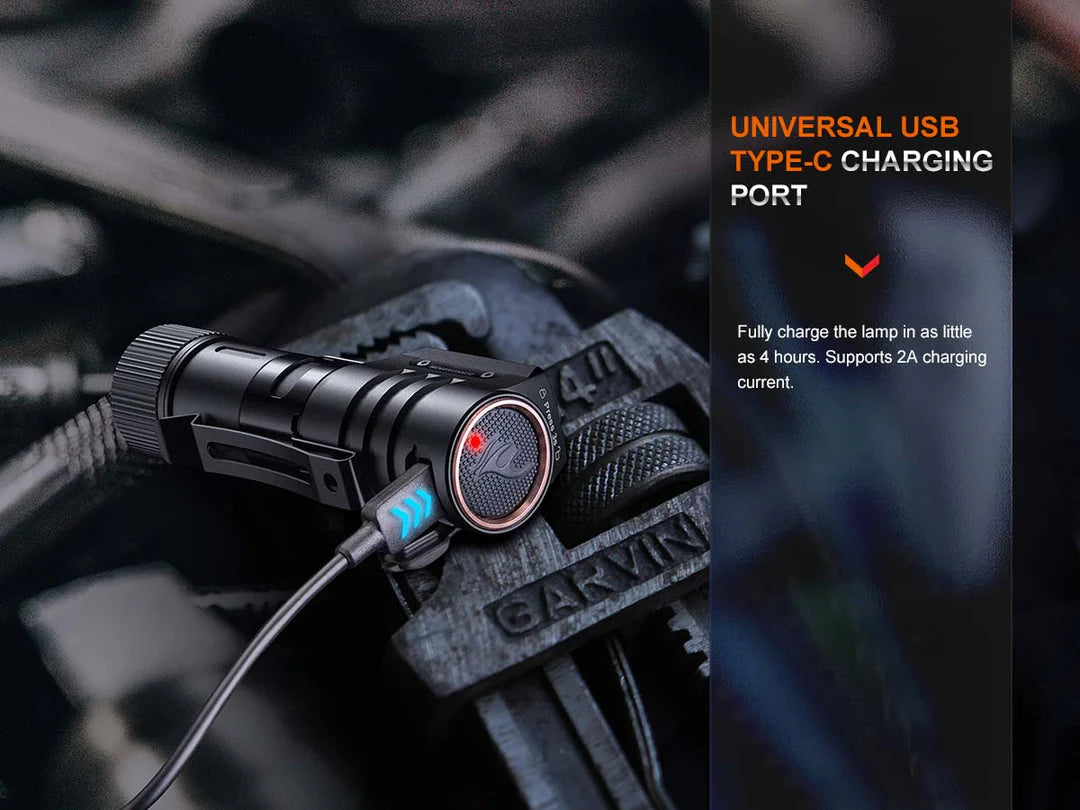

The USB Type-C charging port supports fast 2A charging, ensuring your headlamp is ready to go when you are. A battery level indicator helps you monitor the charge status, so you're never caught off guard by a low battery. Additionally, the headlamp's intelligent memory circuit remembers your last used settings, saving you time and effort.


Usage Instructions:



  • On/Off: Press and hold the switch for 0.5 seconds.
  • Mode Switching: With the lamp off, press and hold for 0.5 seconds for Spotlight mode, double-click for Floodlight mode. While on, press and hold for 1.2 seconds to switch modes.
  • Output Selection: In Spotlight, single-click to cycle through Low→Med→High→Turbo. In Floodlight, single-click to cycle through Read→Low→Med→High.
  • Lock/Unlock: Lock by holding the switch for 3 seconds (lamp blinks 4 times). Unlock by holding the switch for 3 seconds (lamp activates with 4 one-second blinks).


Safety and Maintenance


Safety is paramount with the Fenix HM71R. The headlamp includes intelligent overheat protection, automatically reducing output to prevent overheating. The low-voltage warning alerts you when it's time to recharge or replace the battery, ensuring continuous operation.


Maintenance Tips:

  • Periodically clean battery contacts with a cotton swab soaked in rubbing alcohol to maintain optimal performance.
  • Remove the battery if the headlamp will not be used for an extended period to prevent damage from electrolyte leakage.
  • Recharge the stored headlamp every four months to maintain battery health.


By adhering to these maintenance practices, you can extend the lifespan and performance of your Fenix HM71R headlamp, ensuring it remains a reliable tool for all your lighting needs.


The Fenix HM71R Rechargeable Headlamp is a powerful, versatile, and durable lighting solution designed for both professional and recreational use. Its combination of high-performance features, robust construction, and user-friendly operation makes it an excellent choice for anyone needing reliable illumination in challenging conditions. Whether you're working on a job site or adventuring outdoors, the Fenix HM71R will light your way.

Battery Specifications

Type

Dimensions

Nominal Voltage

Usability



Fenix ARB-L21 Series

21700

3.6V/3.7V

Recommended

√√

Rechargeable Battery  (Li-ion)

21700

3.7V

Usable

√

Rechargeable Battery  (Li-ion)

18650

3.7V

Banned

×

Warning: *21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short-circuiting are potential risks the user assumes.



Battery Replacement

Unscrew the cap to insert the battery with the anode side (+) towards the inside, then screw the cap back on.



Charging

  1. Uncover the anti-dust cap and plug the USB Type-C side of the charging cable into the charging port of the lamp.
  2. The normal charging time of the included Fenix ARB-L21-5000 V2.0 is about 4 hours (5V/2A) with the lamp being switched off.
  3. The indicator will display red while charging and turn green when fully charged.

* This only works with Fenix ARB-L21-5000 V2.0 battery.


Battery Level Indication

With the lamp switched off, single click the switch to check the battery status, the indicator will last for 3 seconds.

Green light on: saturated 100% - 80%

Green light flashes: sufficient 80% - 50%

Red light on: poor 50% - 20%

Red light flashes: critical 20% - 1%

Note: This only works with Fenix ARB-L21-5000 V2.0 battery.



Headband Assembly

1. The headband is factory-assembled by default.

2. Adjust the headband by sliding the buckle to the required length.



Usage and Maintenance

  • Disassembling the sealed head can cause damage to the lamp and will void the warranty.
  • Fenix recommends using an excellent quality Fenix battery.
  • If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
  • Loosen the cap or take out the battery to prevent accidental activation during storage or transportation.
  • Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
    A: The battery needs replacing.
    Solution: Replace the battery (Ensure the battery is inserted according to the manufacturer’s specifications).
    B: The contact point or contact of the battery or headlamp is dirty.
    Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact the distributor.



Warning

  • Do NOT place this headlamp in the reach of children!
  • Do NOT shine the headlamp directly into the eyes of anyone!
  • Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature!
  • Do NOT use the headlamp in inappropriate ways such as biting in the mouth, to avoid personal injury if the headlamp or internal battery fails!
  • This headlamp will accumulate a lot of heat while working, resulting in a high temperature of the headlamp shell. Pay attention to safe use to avoid scalding.
  • Turn off and lock the headlamp or remove the battery from the headlamp to prevent accidental activation when the headlamp is placed in a closed and flammable environment such as pockets and backpacks!
  • The LED of this headlamp is not replaceable; so the whole headlamp should be replaced when the LED reaches the end of its life.


MPN:  HM71RSBK
