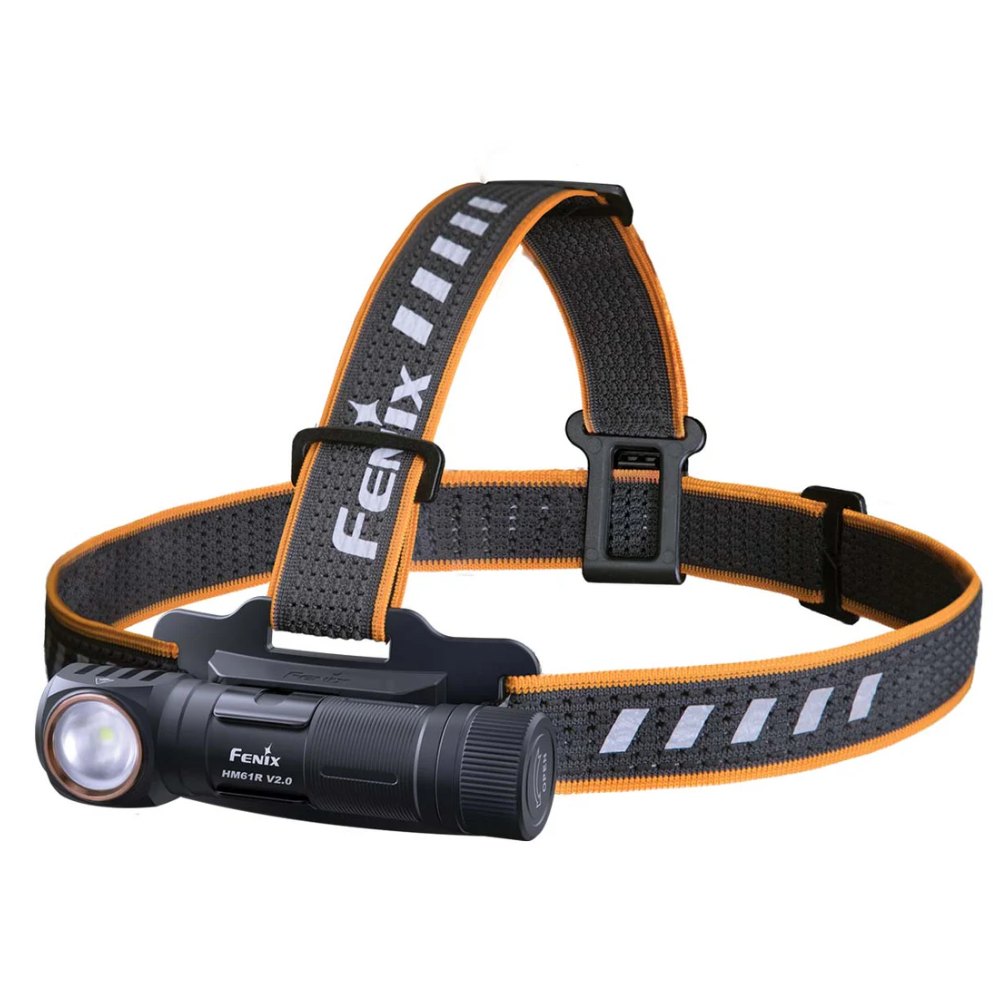

Fenix HM61R V2.0 Rechargeable Headlamp

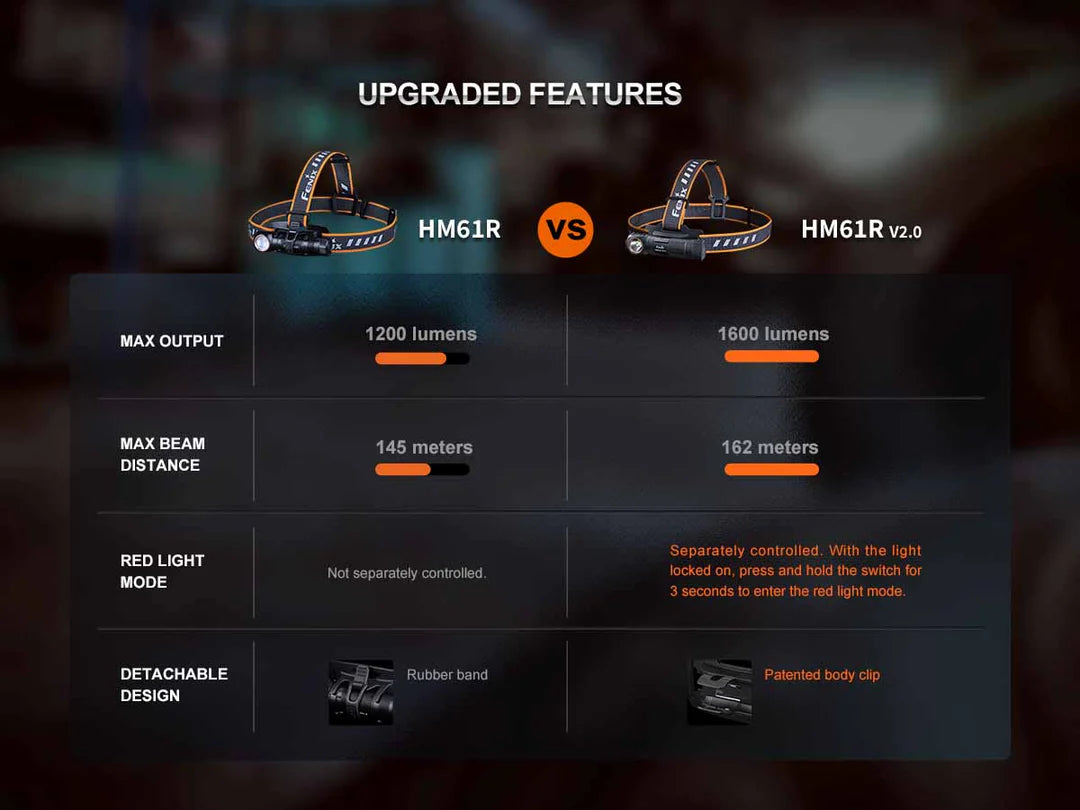

The Fenix HM61R V2.0 Rechargeable Headlamp is the ultimate hands-free lighting tool, designed to provide exceptional performance and versatility for various outdoor and work-related activities. This upgraded headlamp features a large, glove-friendly switch, allowing you to quickly and easily cycle through five brightness levels, including a powerful 1600-lumen turbo mode. Additionally, with a simple double tap, you can access three red light modes independently, eliminating the need to cycle through white light to get to the red light modes.

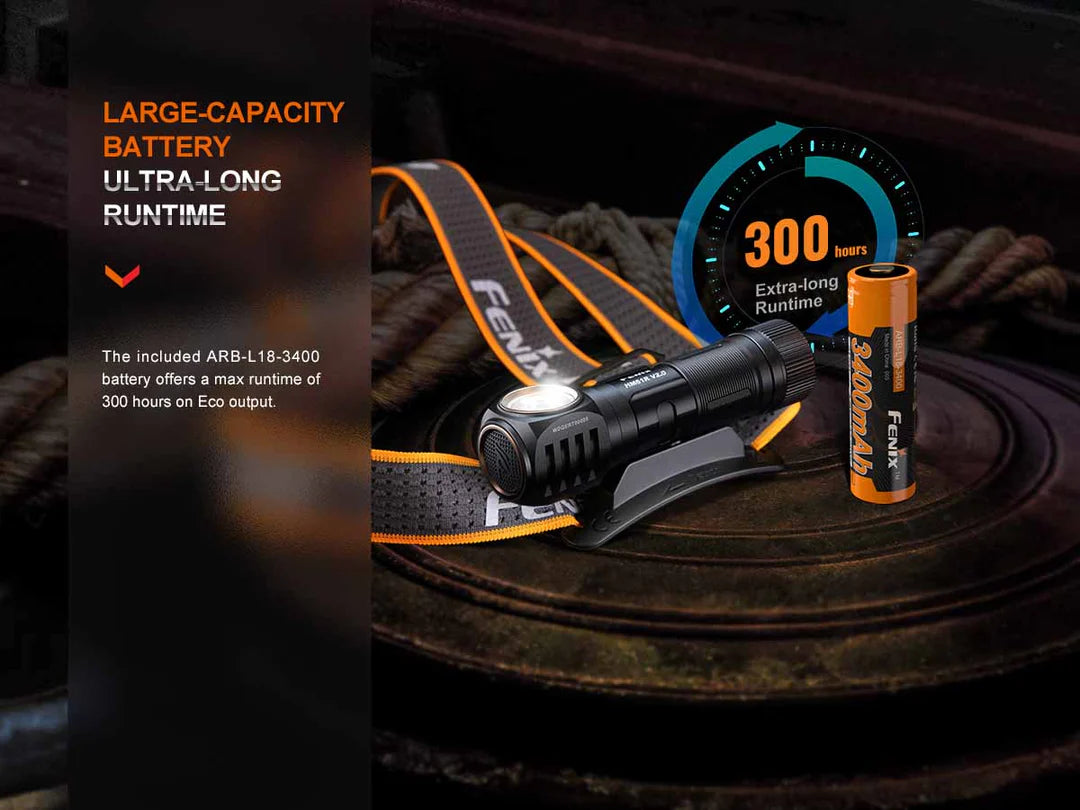

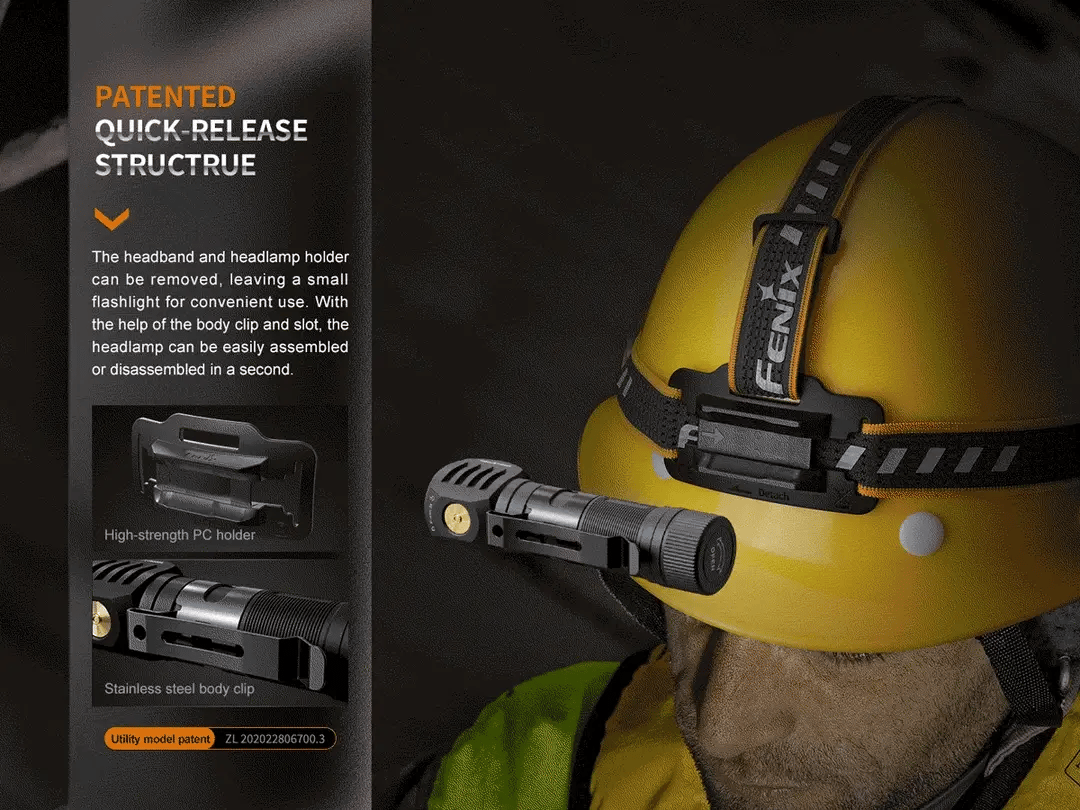

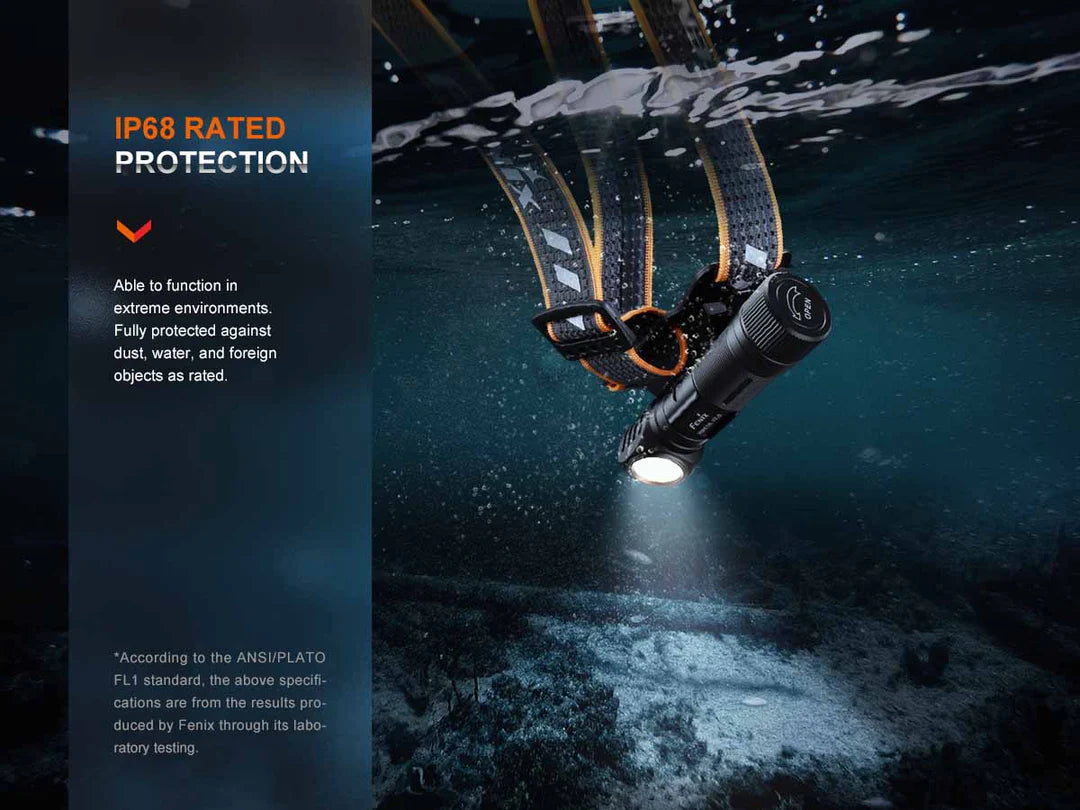

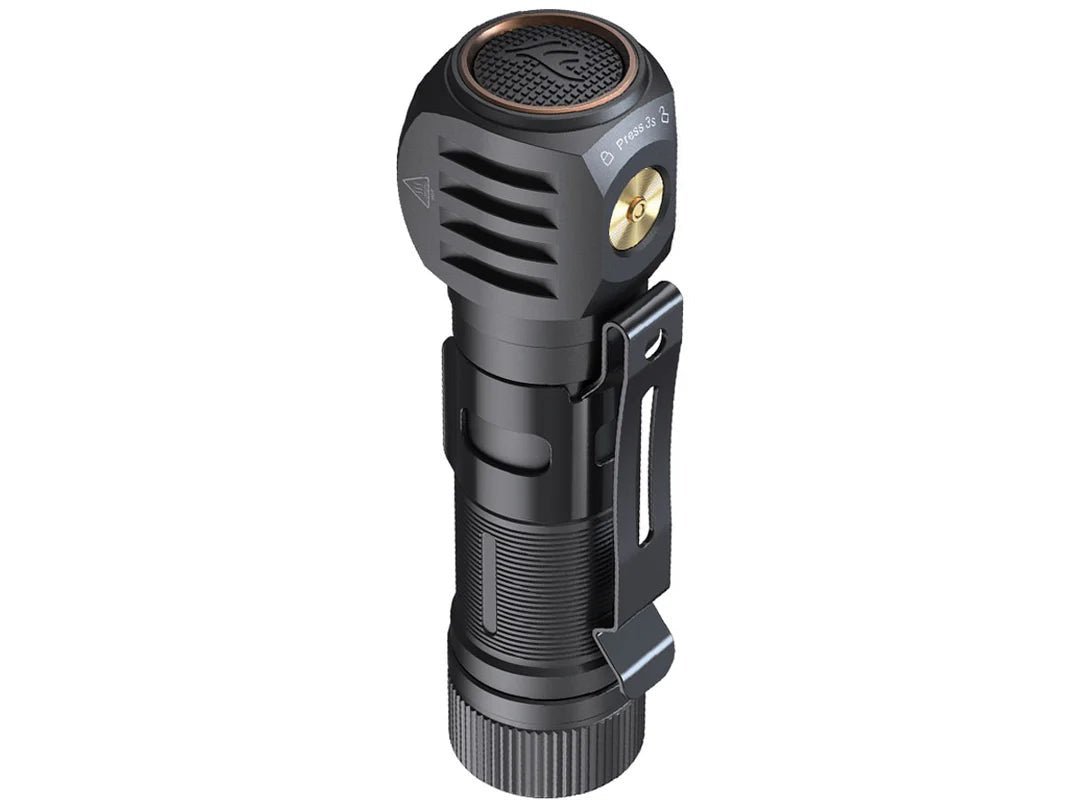

The HM61R V2.0 is more than just a headlamp. When detached from its headband, it transforms into a convenient right-angle flashlight. Its magnetic base and belt clip ensure continued hands-free use, making it a versatile tool for any situation. The headlamp is powered by an included high-capacity 18650 rechargeable battery, providing up to 300 hours of light on Eco mode. It also features magnetic recharging, a battery level indicator, and an IP68 waterproof and dustproof rating, making it a reliable companion for all your adventures.

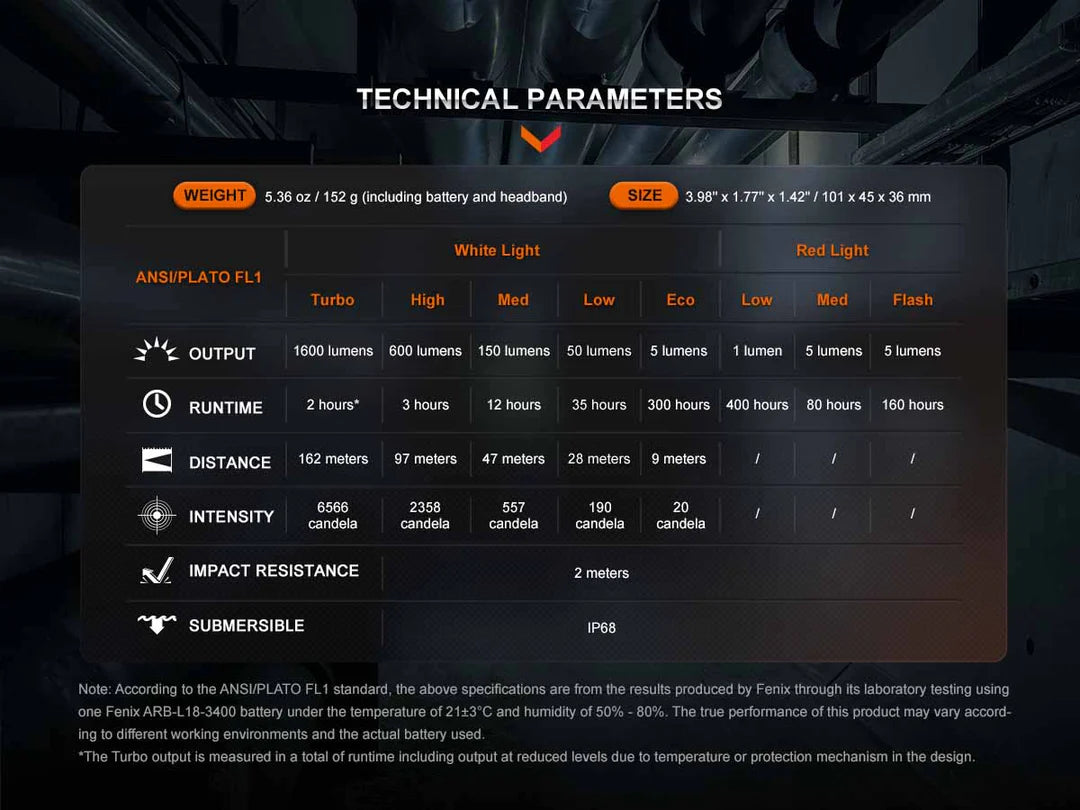

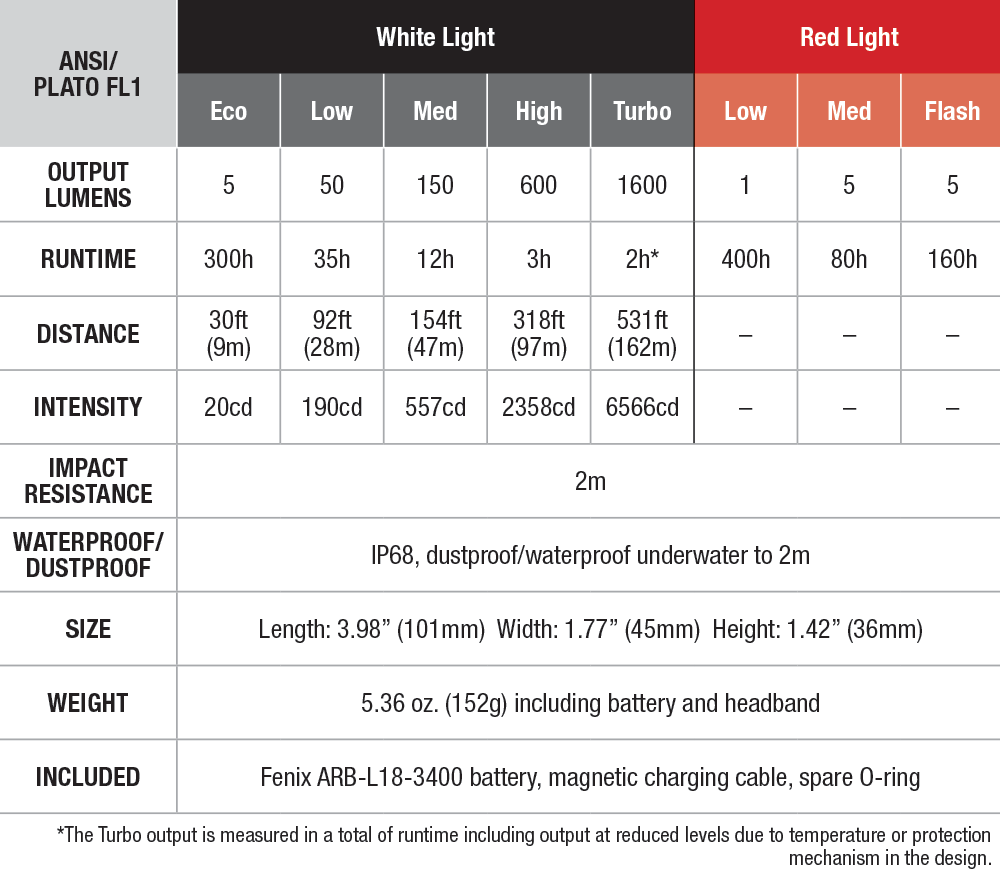

Key Features and Specifications

• Max Lumens: 1600
• Max Beam Distance: 531 feet (162 meters)

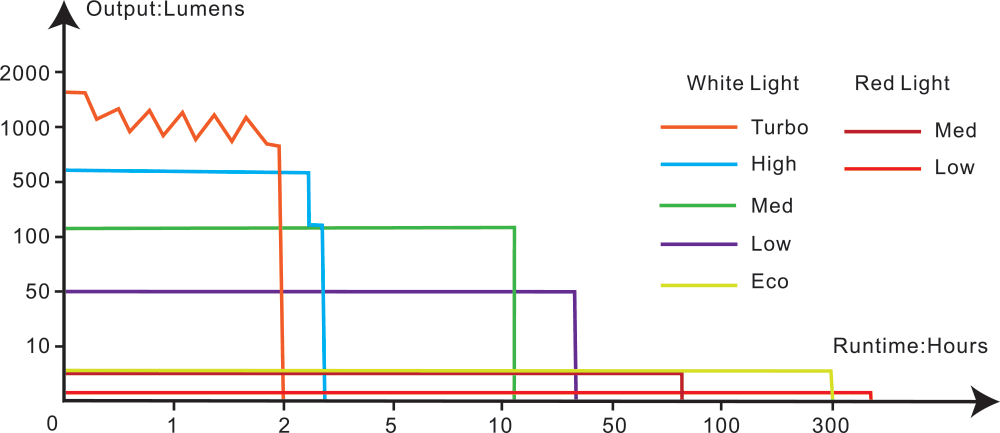

• Max Runtime: 300 hours
• Lighting Modes: Eight modes, including five brightness levels, two red light levels, and red flash
• Bulb Type: Luminus SST40 white and 2835 red LED
• Color Temperature: 6500 kelvin
• Size: Length: 3.98” (101mm), Width: 1.77” (45mm), Height: 1.42” (36mm)
• Weight: 5.36 oz. (152g) including battery and headband
• Battery: One included 18650 rechargeable Li-ion battery or two CR123A batteries

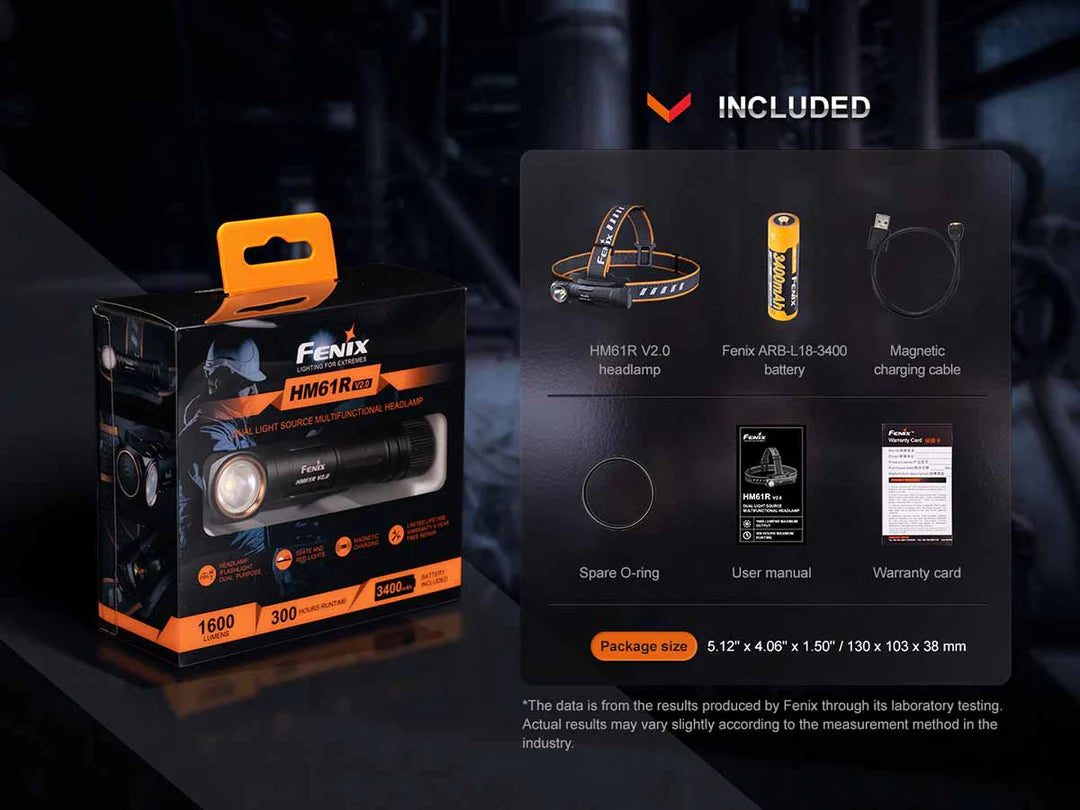

• Included Accessories: Fenix ARB-L18-3400 battery, magnetic charging cable, spare O-ring
• Warranty: Limited Lifetime Guarantee from Fenix Lighting USA

This headlamp is built to last, with Luminus SST40 white and 2835 red LEDs that boast a lifespan of 50,000 hours. It includes a 3400mAh battery but is also compatible with two CR123A cold-resistant batteries, ensuring reliable performance in various conditions. The simple operation is made even more user-friendly with a large side switch, allowing for easy toggling between modes. The detachable lamp can be used as a flashlight or a chest light, further enhancing its utility.

Operation and Maintenance

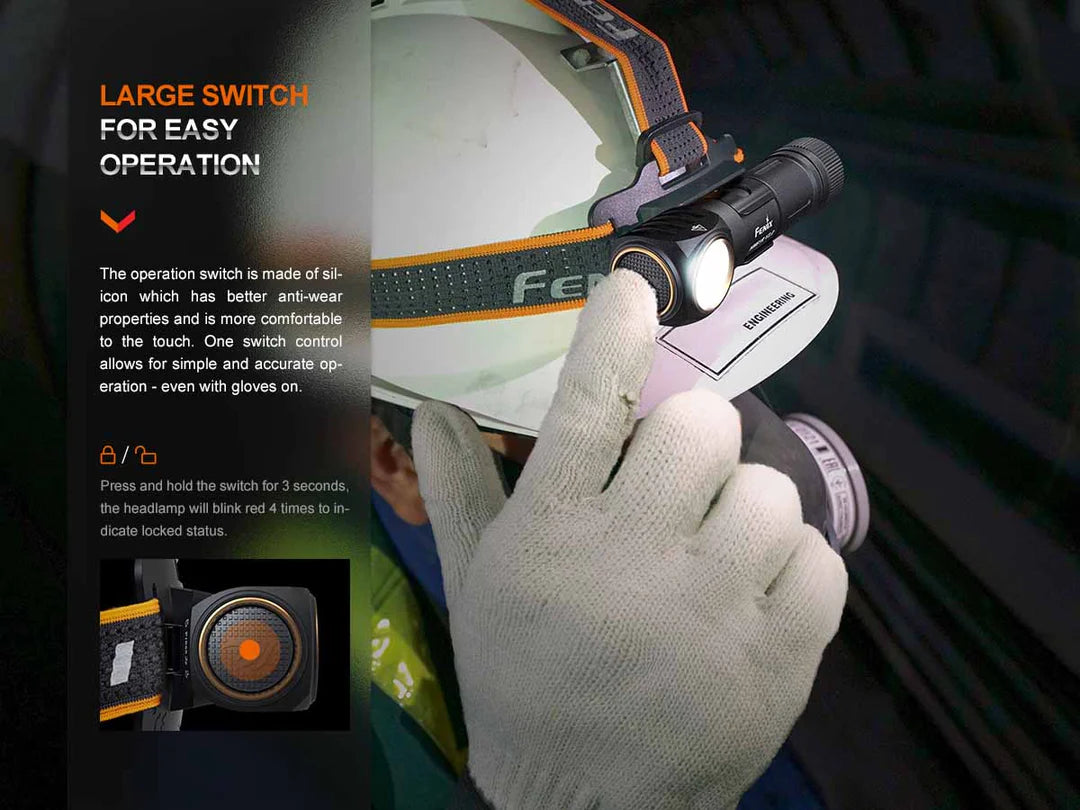

The Fenix HM61R V2.0 is designed with user convenience in mind. The large side switch allows for easy operation:

• On/Off: Press and hold the side switch for 0.5 seconds to enter white light mode or double-click to enter red light mode. To turn off, press and hold the switch for 0.5 seconds.
• Output Selection: In white light mode, single-click the side switch to cycle through Eco, Low, Medium, High, and Turbo. In red light mode, single click to cycle through Red Low, Red Medium, and Red Flash.
• Mode Switching: Press and hold the side switch for 1.2 seconds to switch between white and red modes.
• Lock/Unlock: To lock, press, and hold the switch for 3 seconds when the lamp is off. The lamp will blink red four times to indicate locked status. To unlock, press and hold the switch for 3 seconds; the lamp will blink red four times and activate on Red Low.

Battery Replacement:

• Unscrew the cap to insert the battery with the anode side (+) facing inside, then screw the cap back on.

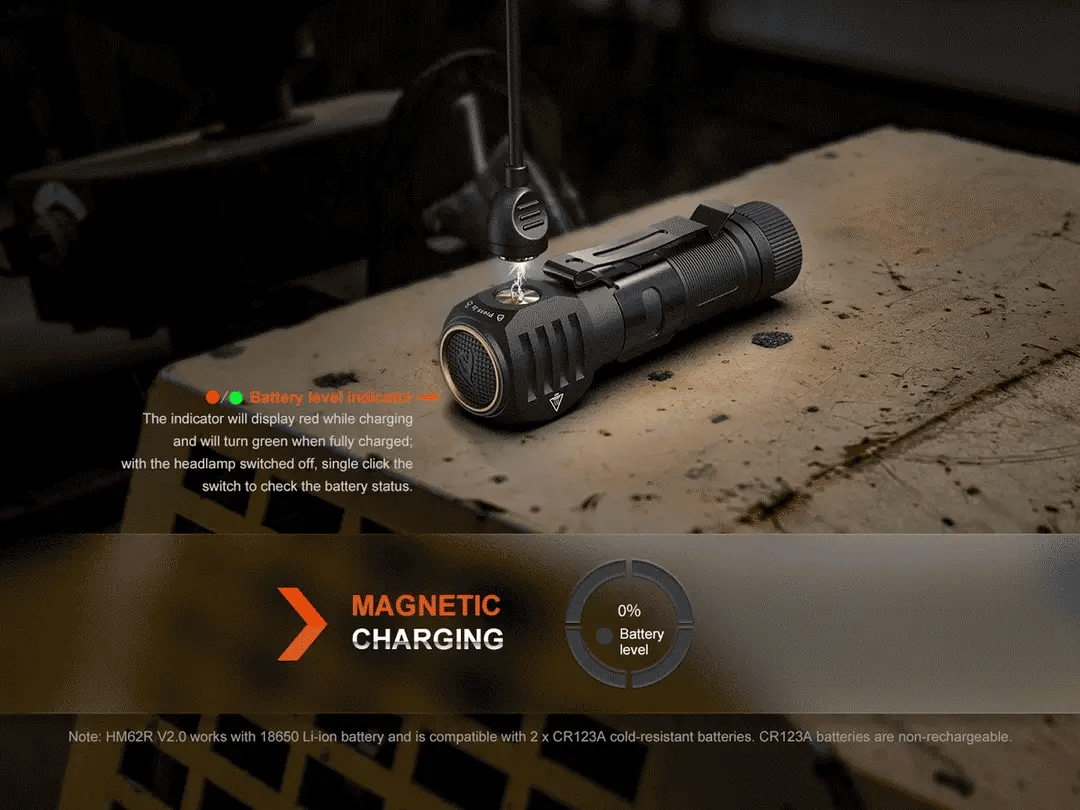

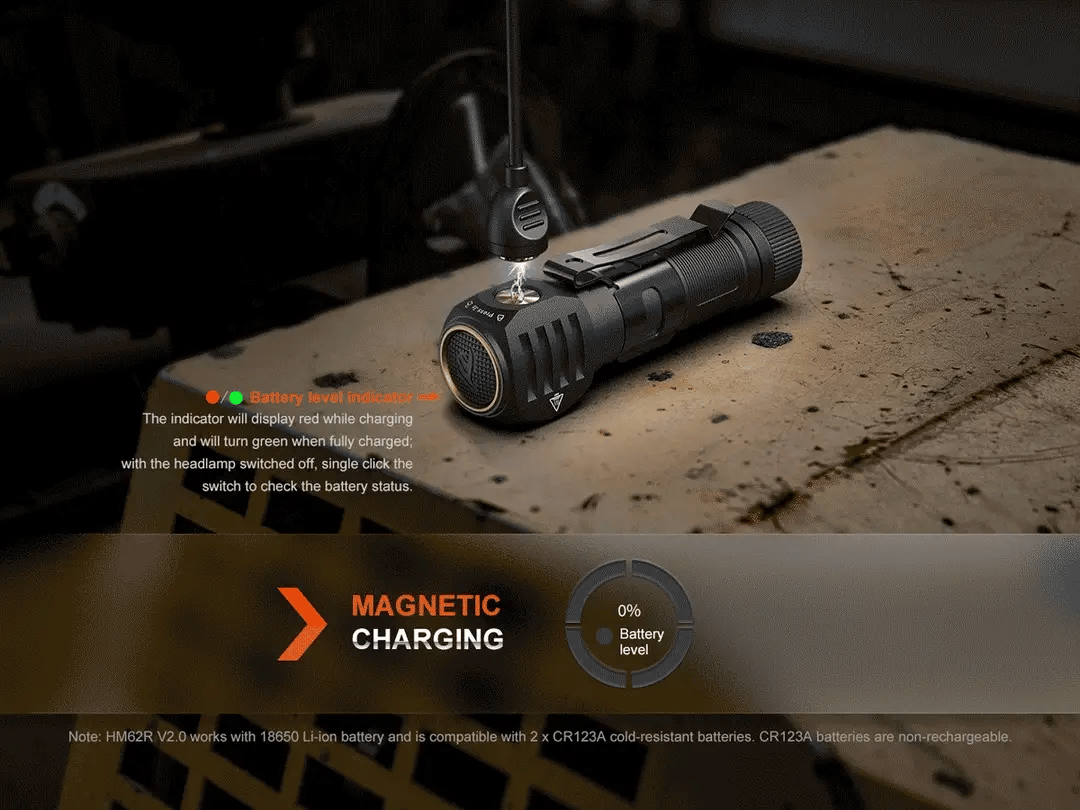

Charging:

• Connect the USB port of the charging cable to the power source. Hold the magnetic end of the charging cable close to the charging port of the headlamp. The cable will attach automatically, and charging will begin. The indicator will display red while charging and turn green when fully charged. Charging time from depletion to full is approximately 4 hours for the Fenix ARB-L18-3400 battery.

Battery Level Indication:

• With the lamp off, single-click the switch to check the battery status. The indicator will last for 3 seconds.
  • Green light on: 100% - 85%
  • Green light flashes: 85% - 50%
  • Red light on: 50% - 25%
  • Red light flashes: 25% - 1%

Low-Voltage Warning:

• The headlamp will downshift to a lower brightness level when the voltage level drops below the preset level until Low output is reached. It will blink three times every 10 minutes in Low output mode to remind you to recharge or replace the battery.

Intelligent Overheat Protection:

• To prevent overheating, the lamp will step down a few lumens when the temperature reaches 65°C or above. Once the temperature drops, it will allow reselection of High or Turbo modes.

Headband Assembly:

• Adjust the headband by sliding the buckle to the required length. Assemble the top headband to better secure the headlamp.

Usage and Maintenance:

• Disassembling the sealed head can cause damage and void the warranty. Fenix recommends using high-quality batteries and periodic cleaning of battery contacts to maintain optimal performance.

Warning:

• Keep the headlamp out of reach of children and do not shine it directly into eyes. Avoid using the headlamp inappropriately, such as biting in the mouth, to prevent personal injury. The headlamp generates heat; handle with care to avoid burns. Turn off and lock the headlamp or remove the battery to prevent accidental activation in closed and flammable environments.

The Fenix HM61R V2.0 Rechargeable Headlamp is a versatile, high-performance lighting tool designed to meet the demands of outdoor enthusiasts and professionals alike. Its robust features and user-friendly design make it an essential addition to your gear collection.

Battery Specifications

Warning

• Do place this headlamp out of the reach of children!
• Do NOT shine the headlamp directly into the eyes of anyone!
• Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature!
• Do NOT use the headlamp in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the headlamp or internal battery fails!
• This headlamp will accumulate a lot of heat while working, resulting in a high temperature of the headlamp shell. Pay attention to safe use to avoid scalding.
• Turn off and lock the headlamp or remove the battery from the headlamp to prevent accidental activation when the headlamp is placed in a closed and flammable environment such as pockets and backpacks!
• The LED of this headlamp is not replaceable; so the whole headlamp should be replaced when the LED reaches the end of its life.
