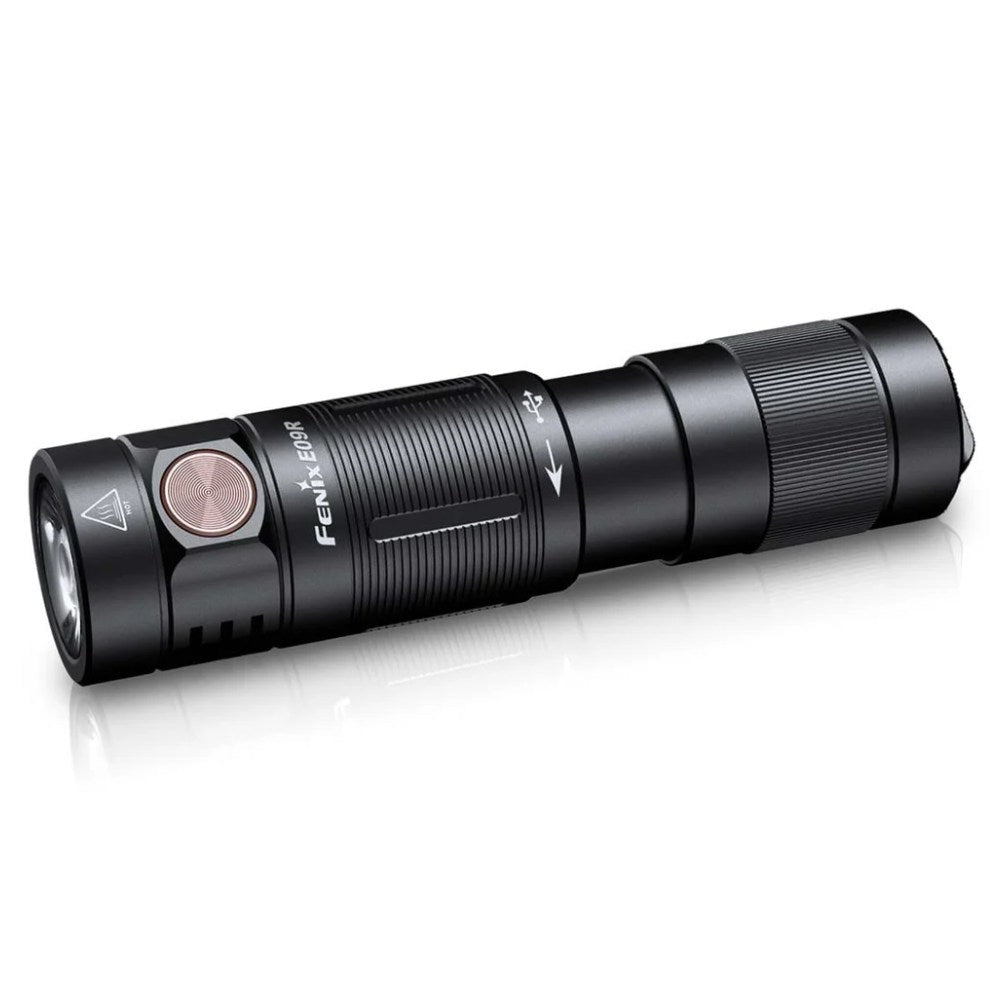

Fenix E09R Rechargeable EDC Flashlight Operating Instructions

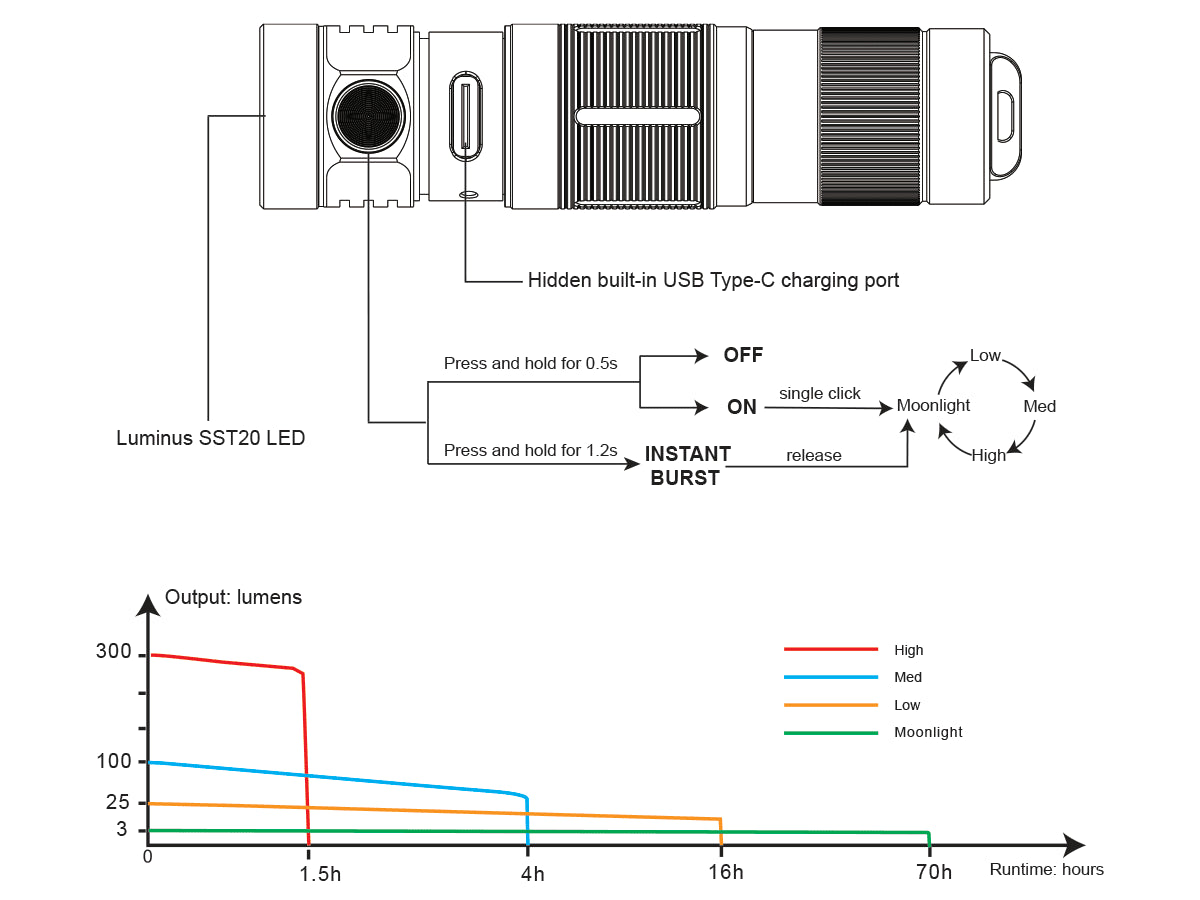

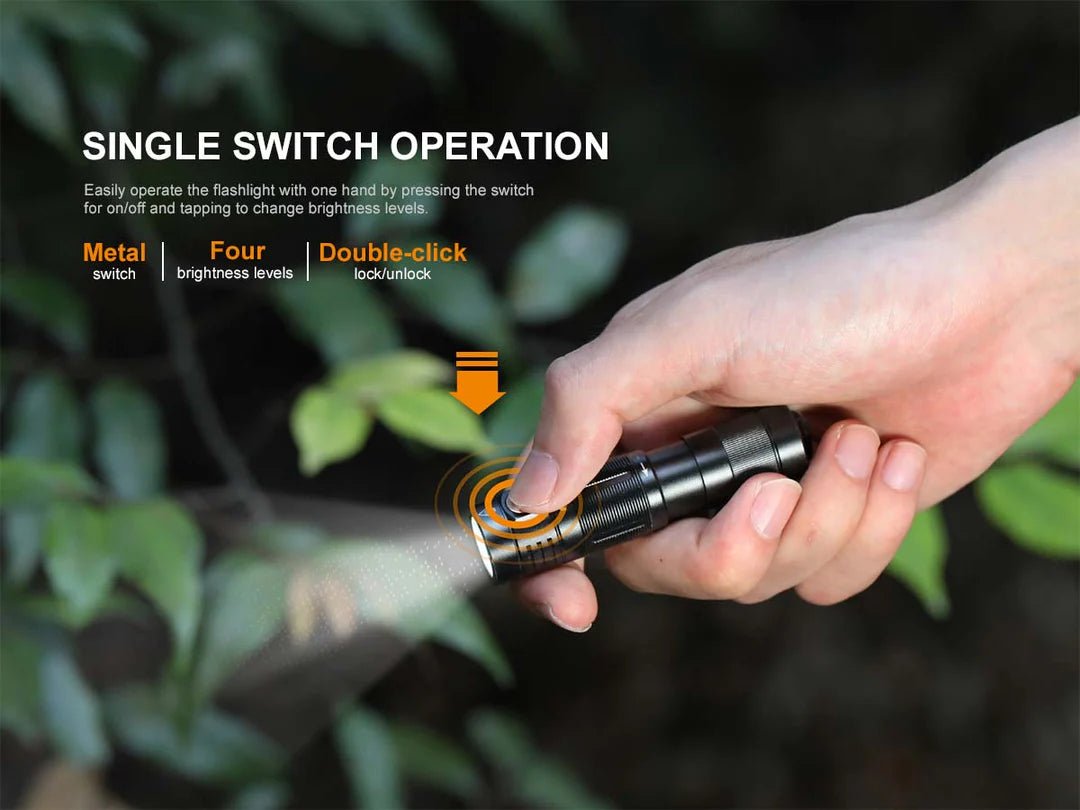

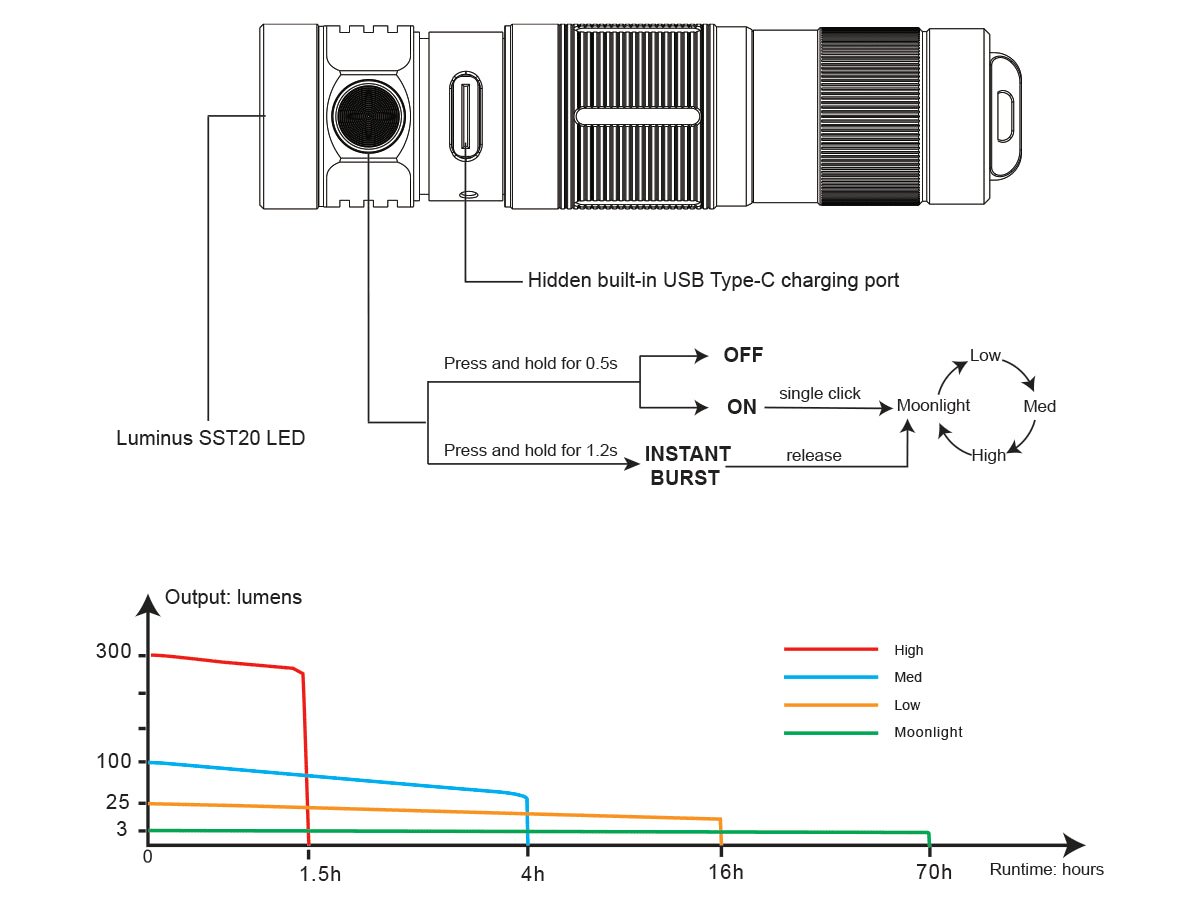

On/off of the E09R

Press and hold the side switch for 0.5 seconds to turn on/off the light.

Output Selection

With the light switched on, single click the side switch to cycle through Moonlight→Low→Med→High.

Instant Burst

Press and hold the side switch for 1.2 seconds to enter instant Burst, release it the light will turn back to Moonlight mode.

Lock/Unlock the E09R

Lock: with the light switched off, double click the switch within 0.5 seconds to lock the light, the light will blink twice on Moonlight to indicate locked status. Unlock: with the light locked, double click the switch within 0.5 seconds, the light will be unlocked and activated on Moonlight. *In locked status, clicking or pressing the switch will activate 2 one-second blinks on Moonlight to indicate locked status.

Intelligent Memory Circuit

The light memorizes the last selected output excluding burst. When turned on again the previously used output will be recalled.

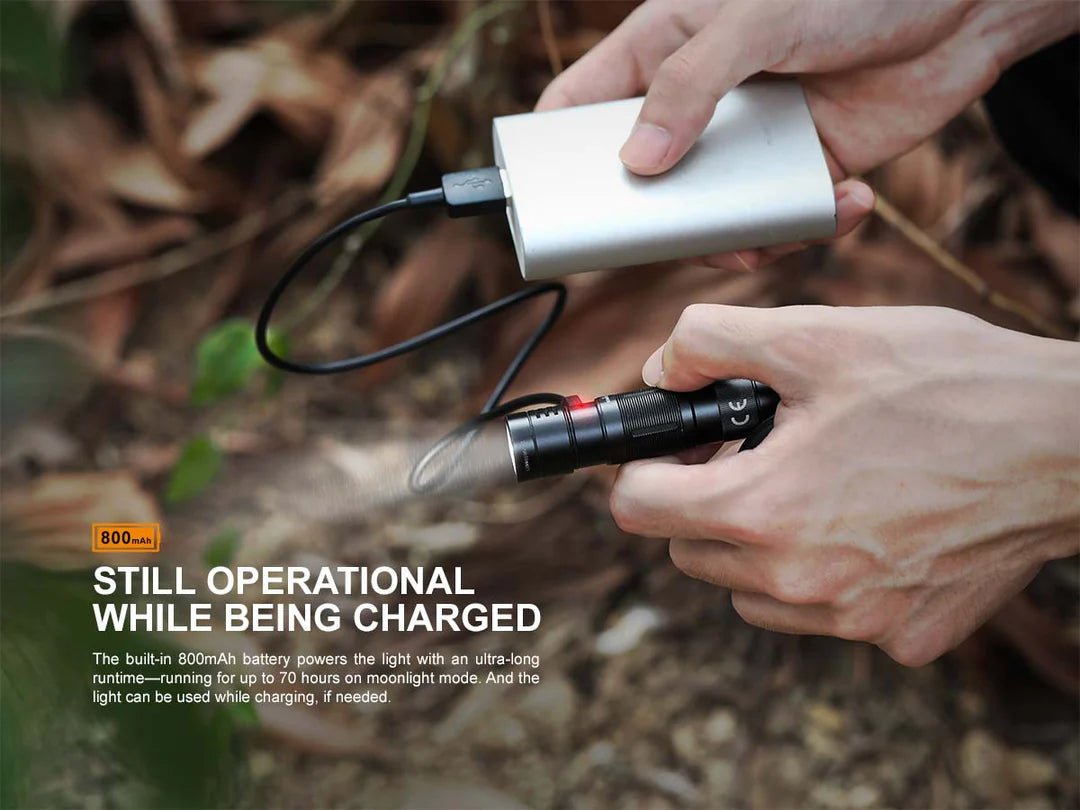

Charging the Fenix E09R

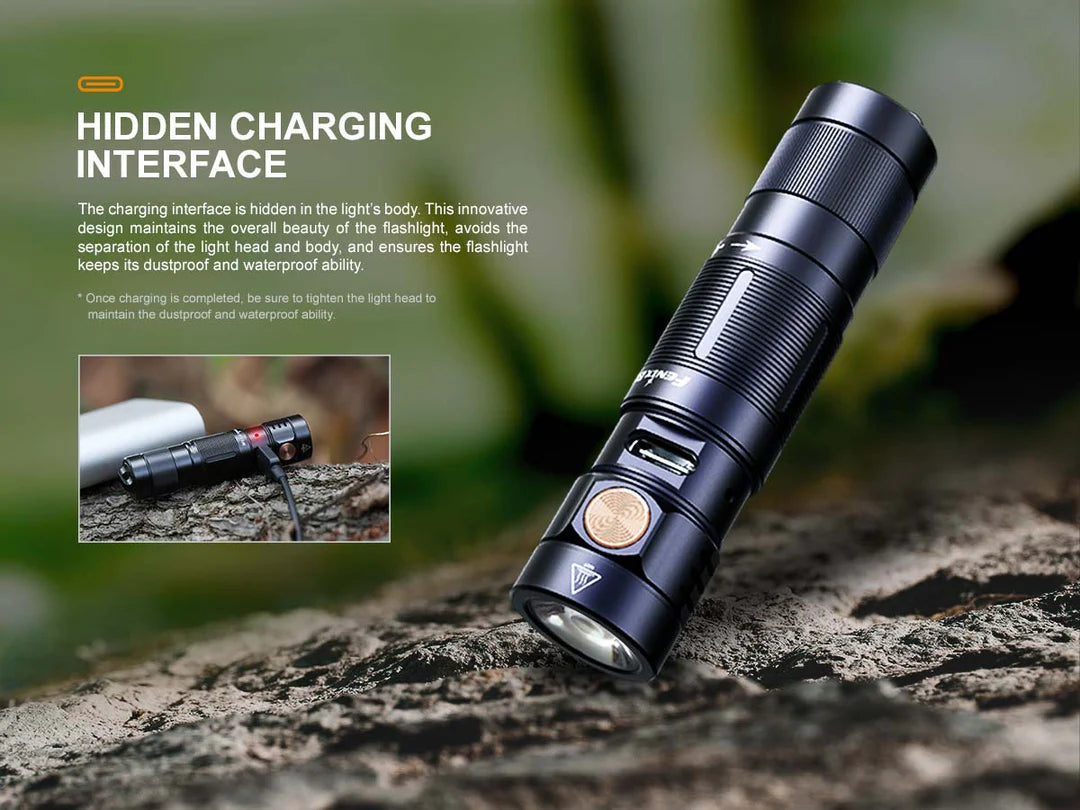

1. First loosen the light body to reveal the USB Type-C charging port and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB-C socket of the charging cable to the light.
2. The indicator will display red while charging and will turn green when fully charged.
3. Once charging is completed, be sure to tighten the light head to maintain the dustproof and waterproof ability.

Note:

1. Charge the light timely when the battery power gets too low to ensure the normal life of the battery.
2. The normal charging time is approximately 1 hour from depletion to full charging.
3. Recharge a stored light every four months to maintain the optimum performance of the battery.

Low Voltage/Low Battery Warning

If upon turning on the light, it blinks three times before it is consistently on, this indicates that the battery level is low and the light should be charged as soon as possible.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used at High mode for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user to reselect the mode.

Usage and Maintenance of the E09R

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Lock the light to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.

Warning

• The flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the light directly into anyone’s eyes.
• This flashlight will accumulate a lot of heat when used for extended periods, resulting in a high temperature of the flashlight Pay attention to safe use to avoid scalding.
• Do not shine an object at close range, to avoid burning the object or causing danger due to high temperature.
• The LED of this flashlight is not replaceable; so the entire light should be replaced when the LED reaches the end of its life.
• If any of the information provided in this manual is changed, the new version of the manual shall prevail; if your included user manual is an old one, it acquiesces that we won't send a new manual.

Q1. What is the product positioning of E09R? And who are the target customers?

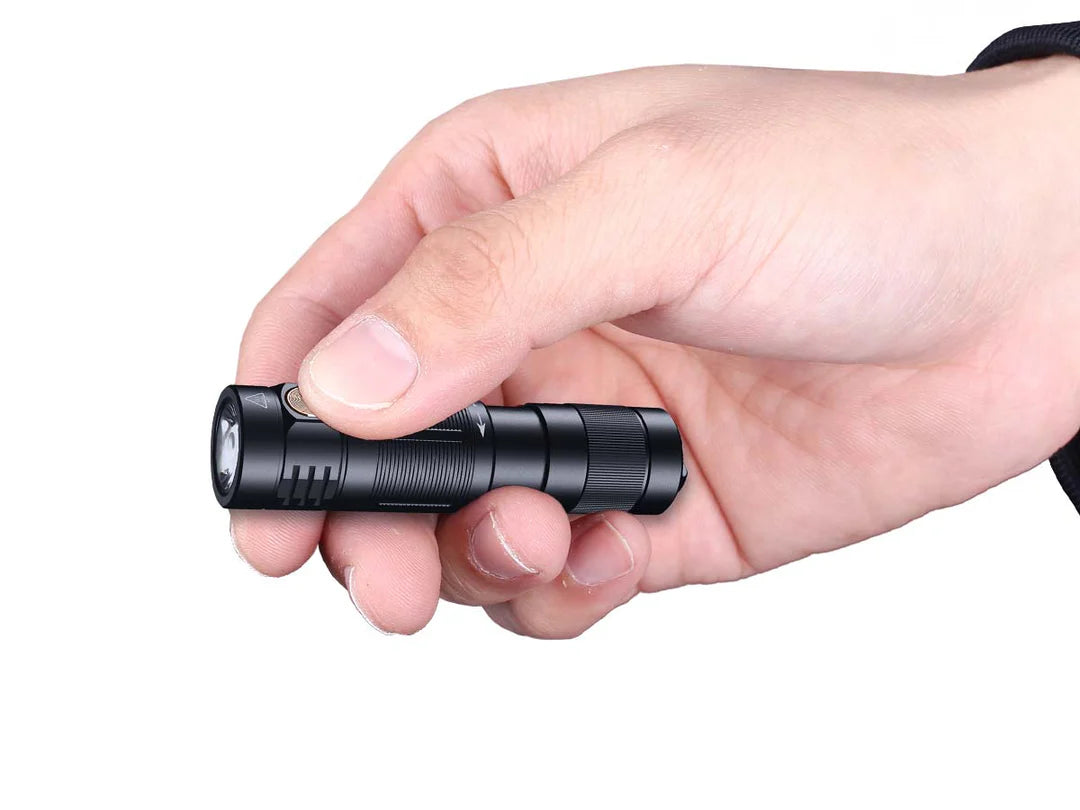

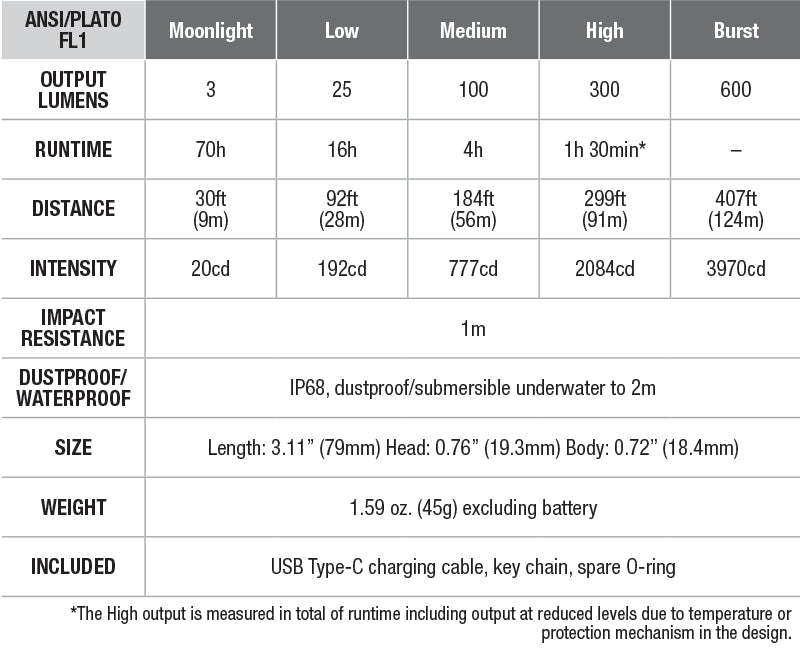

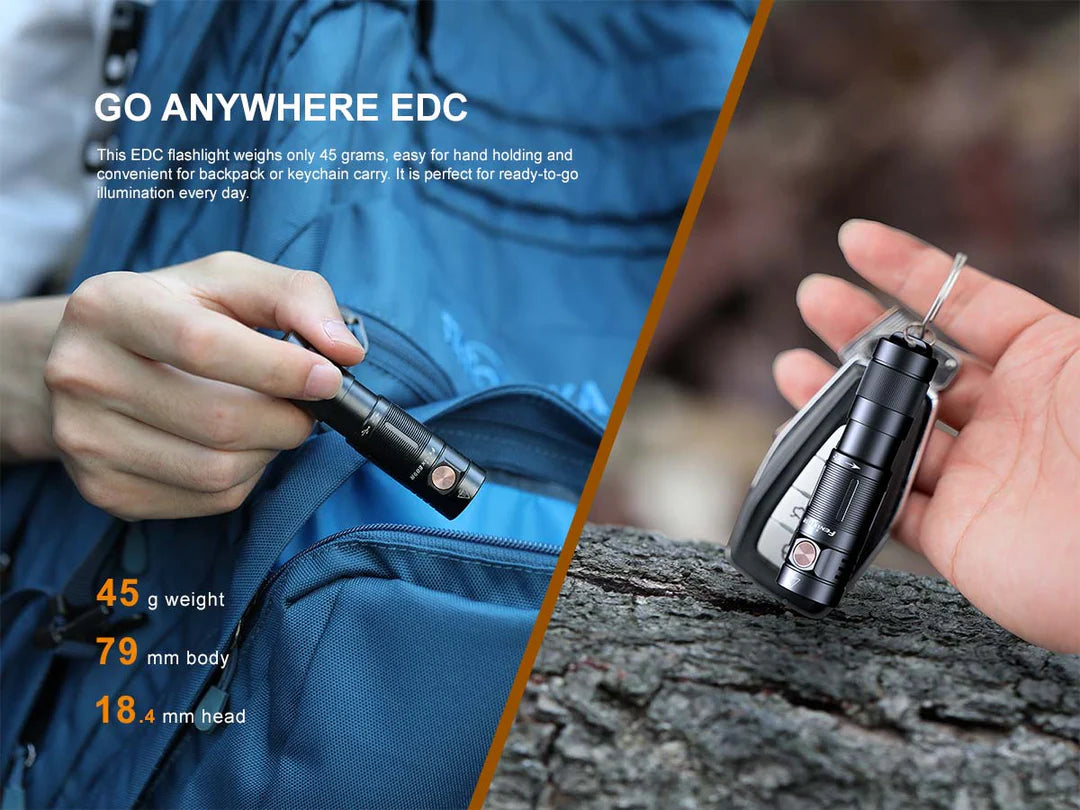

A: The Fenix E09R flashlight is a rechargeable high-output flashlight in a very compact size, it can emit up to 600 lumens from the built-in 800mAh Li-polymer battery, and its beam distance reaches 124meters. Fully rechargeable via a built-in USB Type-C charging port, the flashlight has a maximum runtime of 70 hours. Access four brightness levels with a simple press of the side switch, meeting various lighting demands. With the included key chain, this little flashlight is a perfect choice for everyday carry.

Q2. What are the key features and benefits of E09R?

A: 1) 600 lumens maximum output.

2)Hidden charging interface.

3) Instant Burst.

4) USB Type-C charging.

Q3. What kind of LED is used in E09R? And what are the beam angles?

A: Luminus SST20 LED.

Beam angles: spot beam angle of 13°, spill beam angle of 81°.

Q4. Does E09R have overheat protection?

A: Yes. The light will accumulate a lot of heat when used at High mode for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user for the reselection of the mode.

Q5. What battery does E09R support?

A: The light comes with a built-in 800mAh Li-polymer battery; it can't be replaced.

Q6. What’s the color temperature of E09R?

A: 6200K.

Q7. What’s the standby current of E09R?

A: Less than 20µA.

Q8. Note about IP68

A: IP68 ratings is ensured ONLY when the charging port is tightened.

Q9. What should I do if the E09R needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 2-year free repair: Fenix will repair a light free of charge within 2 years of purchase if problems develop with normal use.

3. Lifetime maintenance: If repair is required after 2 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. If you need warranty service, fill out the warranty form at https://www.fenixlighting.com/pages/warranty-repairs to start your repair claim
