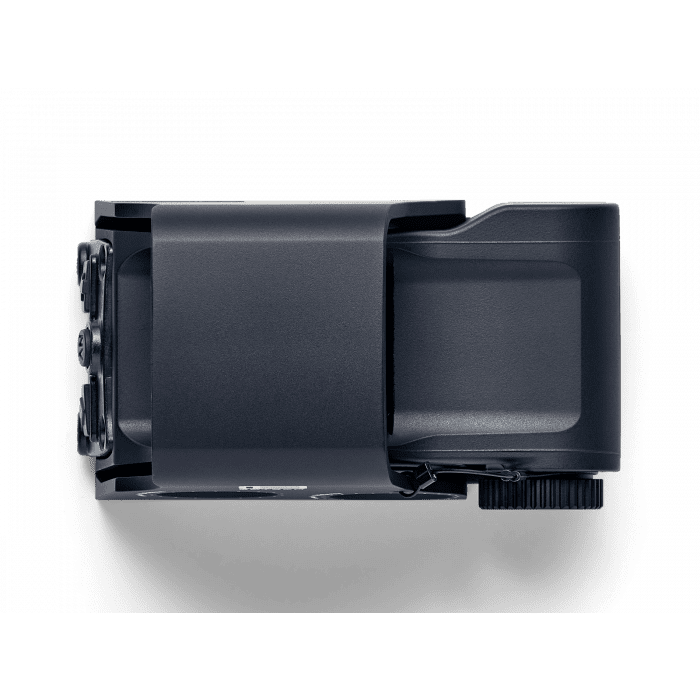

Overview of the EOTech XPS3 Holographic Weapon Sight | XPS3
The EOTech XPS3 Holographic Weapon Sight is a compact, night vision compatible optic for rifles, carbines, and shotguns. Model XPS3 comes in two reticles: the XPS3-0 with one dot and the XPS3-2 with two dots.
A long optic crowds your rail. Then your magnifier, night vision device, or backup irons have nowhere to go. EOTech states the XPS3 is its shortest and lightest night vision compatible HWS. A single CR123 battery keeps the body just 3.8 inches long.
Fast Aiming, Day or Night
You shoot with both eyes open and keep your view of the room or the field. The 1x, parallax-free sight has unlimited eye relief, so patrol officers, hunters, and home defenders get on target fast.
-
68 MOA ring for fast pickup at close range
-
1 MOA dot for precise shots
-

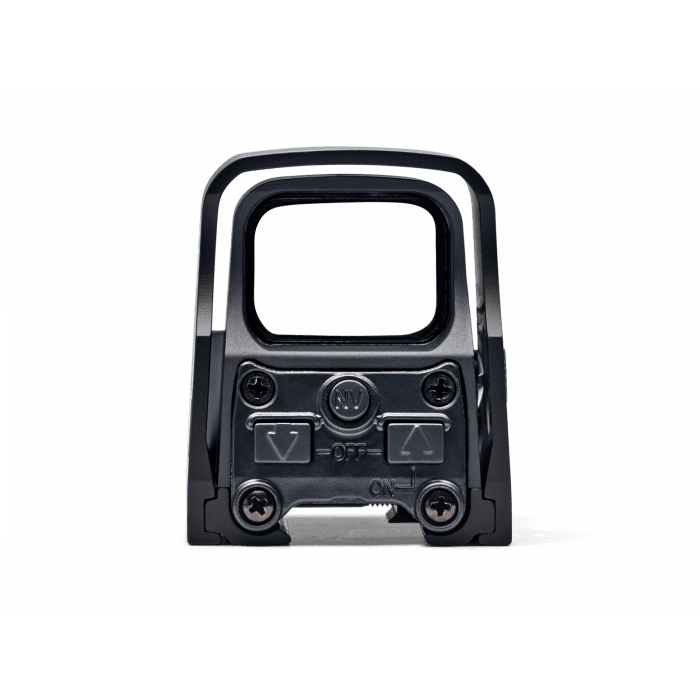

30 brightness settings for daylight and night vision use
-
Up to 1,000 hours of rated battery life
Key Features
-
Night vision compatible: 10 settings work with Gen I through III+ night vision devices.
-
Daylight brightness: 20 settings cover bright sun through low light.
-
Two reticle choices: Pick one dot (XPS3-0) or a second holdover dot below center (XPS3-2).
-
Single battery power: One CR123 lithium battery gives up to 1,000 continuous hours at setting 12 at room temperature, per EOTech.
-
Low battery warning: The reticle blinks when about 20 percent of battery life remains.
-
Auto shutoff: Selectable 4 hour or 8 hour shutoff helps save the battery.
-
More rail space: The short body leaves room for rear iron sights, magnifiers, or a night vision mount.
-
Rugged housing: The aluminum hood and body carry a black hardcoat finish.
-
Weather ready: The sight is submersible to 33 ft (10 m) and rated from -40°F to 140°F.
-

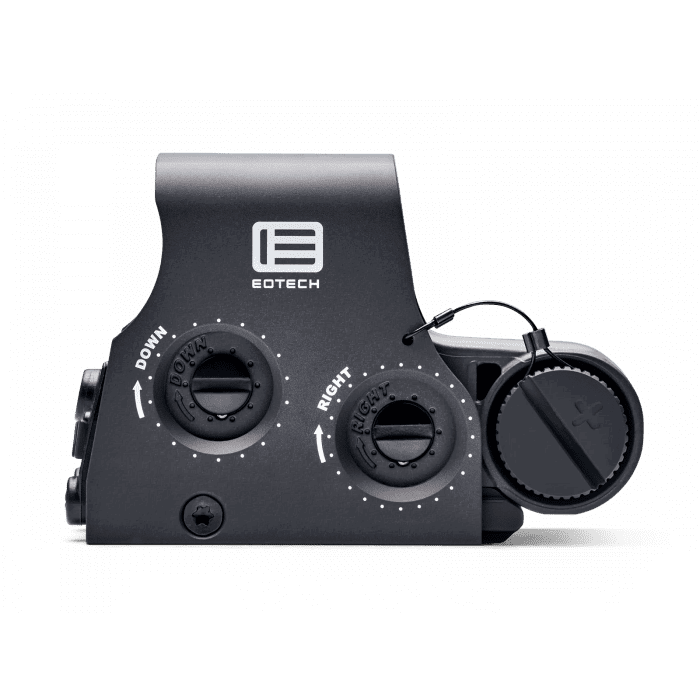

Precise zero: Windage and elevation adjust in 0.5 MOA clicks.
-
Care: Dampen the glass before you clean it, and never wipe it dry.
Specifications
| Brand |
EOTech |
| Model |
XPS3 |
| MPN |
XPS3-0, XPS3-2 |
| SKU |
EO-XPS3-0, EO-XPS3-2 |
| UPC |
672294600305, 672294600329 |
| Sight Type |
Holographic weapon sight (HWS) |
| Magnification |
1x |
| Reticle (XPS3-0) |
68 MOA ring with one 1 MOA dot |
| Reticle (XPS3-2) |
68 MOA ring with two 1 MOA dots |
| Reticle Color |
Red |
| Eye Relief |
Unlimited |
| Field of View |
30 yards at 100 yards |
| Sight Window |
1.2 x 0.85 in (30 x 23 mm) |
| Click Value |
0.5 MOA per click |
| Adjustment Range |
Plus or minus 40 MOA, windage and elevation |
| Brightness Settings |
20 daylight, 10 night vision |
| Power Source |
1 CR123 lithium battery |
| Battery Life |
Up to 1,000 continuous hours at setting 12 at room temperature |
| Auto Shutoff |
4 or 8 hours, selectable |
| Water Resistance |
Submersible to 33 ft (10 m) |
| Operating Temperature |
-40°F to 140°F (-40°C to 60°C) |
| Dimensions (L x W x H) |
3.8 x 2.1 x 2.5 in (96.5 x 53.3 x 63.5 mm) |
| Weight |
9.0 oz (255 g) |
| Mount |
Cross bolt for 1 inch Weaver or MIL-STD-1913 rail |
| Material |
Aluminum |
| Finish |
Black hardcoat |
| Color |
Black |
| Country of Origin |
Made in the USA |
Variant SKUs, MPNs, and UPCs
| Variant |
SKU |
UPC |
| XPS3-0, 68 MOA ring with one 1 MOA dot |
EO-XPS3-0 |
672294600305 |
| XPS3-2, 68 MOA ring with two 1 MOA dots |
EO-XPS3-2 |
672294600329 |
Compatibility
-
Rails: Clamps to 1 inch Weaver or MIL-STD-1913 Picatinny rails. It does not fit dovetail rails without an adapter.
-
Firearms: Fits rifles, carbines, and shotguns with a compatible rail. EOTech reticle aiming points are based on a .223 caliber, 62 grain load at 2,900 fps, so confirm your own holds with other loads.
-
Night vision: Works with Gen I through III+ night vision devices. If you never need night vision, the EOTech XPS2 shares this body style.
-
Magnifiers: You have rail room for the EOTech G33 3X magnifier or the EOTech G45 5X magnifier. Check mount height before you order.
-
Mounting style: This is a cross bolt mount, not a quick detach lever. For a quick detach mount and side buttons, choose the EOTech EXPS3.
Intended Users
Patrol officers and SWAT teams use the XPS3 on duty rifles and shotguns, including night work under night vision. Military members get a short optic that leaves rail room for a magnifier. Hunters like the light 9.0 oz weight when they carry a rifle in the woods. Civilian shooters use it for home defense, competition, and range training.
What's Included
- 1 EOTech HWS XPS3 sight
- 1 CR123 battery
- 1 protective case
- 1 quick-start guide
- 1 warranty card
Not included: Magnifier, backup iron sights, and spare batteries such as Streamlight CR123A lithium batteries. Order these separately.
