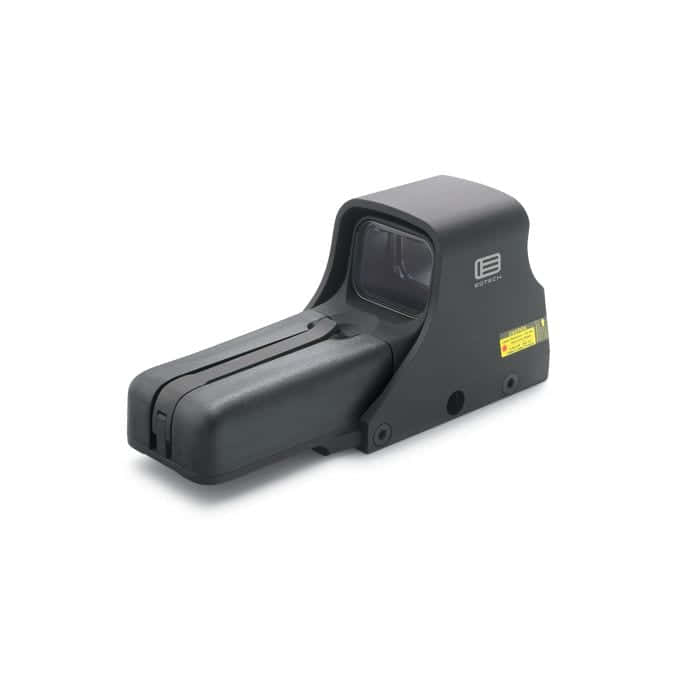

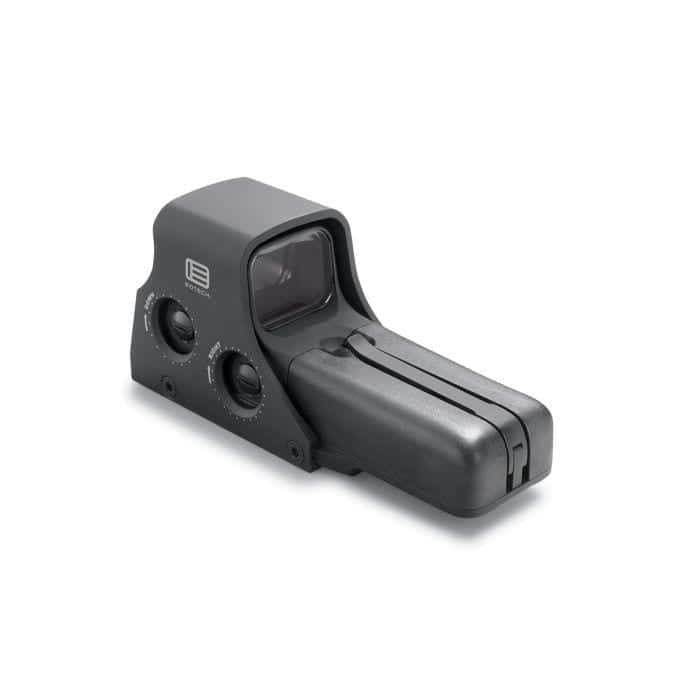

Lightning-fast target acquisition and reliable toughness make the 512™ our most popular Holographic Weapon Sight (HWS) without night vision compatibility. Available in black for the tactical/recreational shooter and personal defense. Powered by two AA batteries. Featuring buttons located on the rear with easy access for both right and left-hand shooters and 20 brightness settings for dawn-to-dusk hunting as well as competitive shooting.
For home defense applications compatible with night vision, check out our 552— the same sight with the added advantage of working in conjunction with night vision devices.
EXPORT RESTRICTIONS:
Export of this product is strictly controlled and enforced by the U.S. Department of Commerce, Bureau of Industry and Security, as prescribed in the Export Administration Regulation (EAR), Title 15, Code of Federal Regulations, Parts 730-774. EOTech LLC does not authorize any of its dealers or distributors to export this commodity without prior, written authorization, and will not provide warranty or post-sales support of unauthorized international exports.
PROP 65 WARNING: This product can expose you to chemicals including (Epichlorohydrin, Phenyl, Hydrazine or Cumene) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
TECHNICAL SPECIFICATIONS
| NON-NIGHT VISION COMPATIBLE |
|
| L X W X H |
5.6” x 2” x 2.5” (143 x 51 x 64 mm) |
| WEIGHT |
11.5 oz (325 g) |
| WATER-RESISTANT |
10 ft. (3 m) depth |
| MOUNT |
1” Weaver or MIL-STD-1913 rail |
| BRIGHTNESS |
20 daylight settings |
| POWER SOURCE |
2 x 1.5 V AA batteries
Supports lithium, alkaline, or rechargeable |
| BATTERY LIFE |
Lithium: 2,500 continuous hours at nominal setting 12 at room temperature.
Alkaline: 2,200 continuous hours at nominal setting 12 at room temperature. |
| COUNTRY OF ORIGIN |
Made in USA |
| WARRANTY |
EOTECH’s Prestige Warranty guarantees products to be free from manufacturing defects in material and workmanship under normal use for a period of ten (10) years from the manufacturer’s date or customer’s proof of purchase. See EOTECH's Prestige Warranty details for more Information. |
HWS® PERFORMANCE CHARACTERISTICS
FOR MOST MODELS
RETICLE OPTIONS
EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot, allowing the shooter to quickly pick up and lock on a target.
 |
Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points were based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes end in -0. |
 |
Our two-dot reticle pattern can be easily distinguished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points were based on the following load: .223 cal. 62 gr. 2,900 vel. For ordering this reticle, the model codes end in -2. |
RANGE ESTIMATION WITH UNMAGNIFIED HWS
The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.
BRIGHTNESS OPTIONS
The 512™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.
VERSATILITY WITH OTHER WEAPON PLATFORMS
With its advanced holographic technology, the HWS-2-dot reticle solves a number of fire control issues for a host of applications and weapon platforms.
| LOAD |
CENTER DOTFIRST ZERO |
CENTER DOTSECOND ZERO |
SECOND DOTZERO |
BOTTOM OF CIRCLE |
| .223 CAL. 62 GR., 2,900 VEL. |
50 Yards |
200 Yards |
500 Yards |
7 Yards |
| .44 MAG. 240 GR., 1,300 VEL. |
25 Yards |
50 Yards |
165 Yards |
165 Yards |
| 12 GAUGE. 385 GR., 1,850 VEL. |
25 Yards |
100 Yards |
250 Yards |
250 Yards |
| .50 CAL. BLACK POWDER 350 GR., 1,850 |
25 Yards |
100 Yards |
250 Yards |
250 Yards |
