Overview of the Streamlight TLR-1 HL | 69260

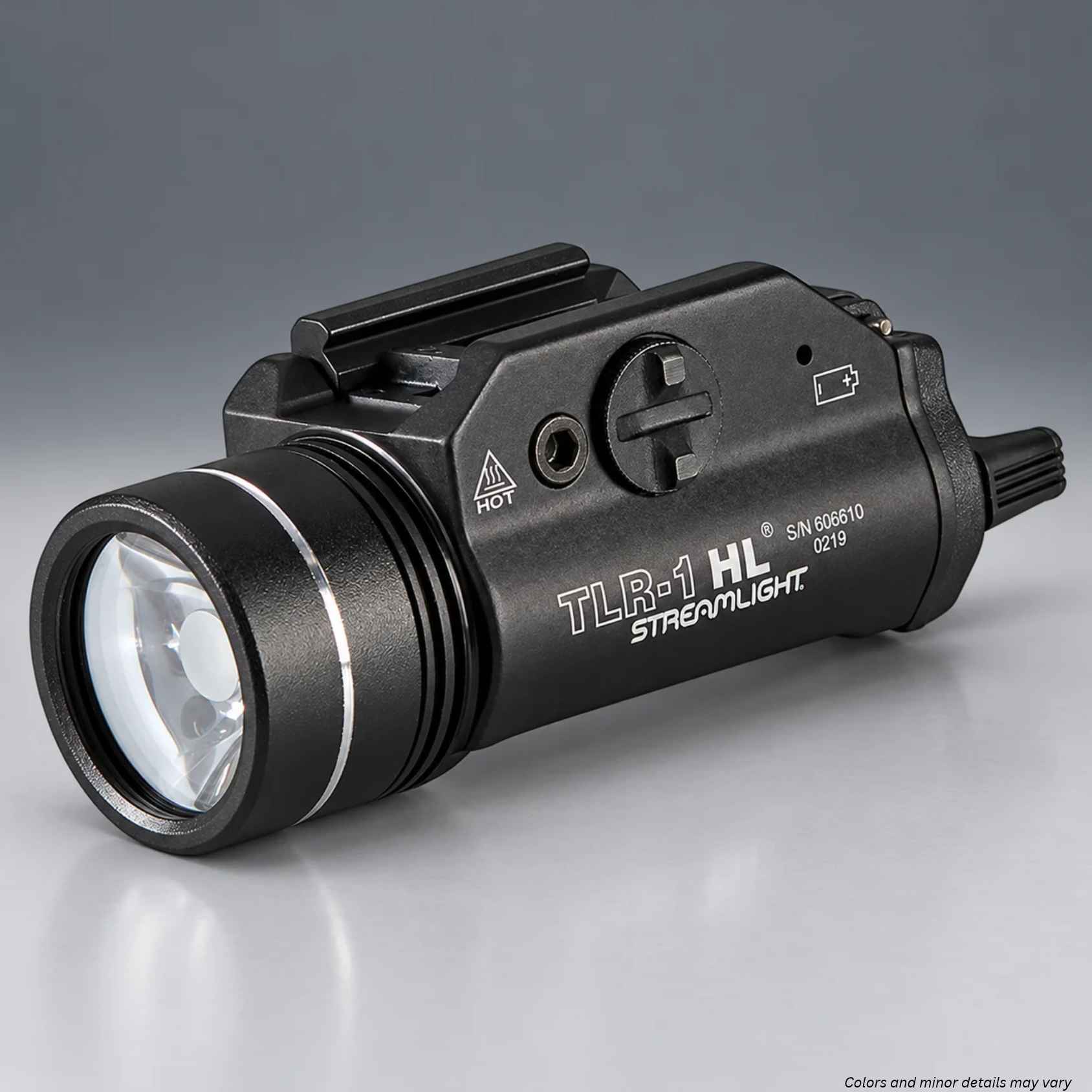

The Streamlight TLR-1 HL 69260 is a rail-mounted tactical weapon light that puts 1,000 lumens on target the moment you press the switch. It is the black model of the TLR-1 HL gun light, and it ships with rail locating keys and two CR123A lithium batteries.
A dark hallway, a parking structure, or a tree line at night leaves no room for guesswork. You need to identify a threat before you act, and you need both hands on your firearm while you do it.
Light That Fills the Room
-
1,000 lumens and 20,000 candela with a 283-meter beam distance, per Streamlight
-
Wide peripheral beam that lights up corners and side areas
-
1.5 hours of run time on two CR123A batteries
Built for Duty
Police officers, SWAT operators, military personnel, and armed homeowners mount the TLR-1 HL on pistols, rifles, and shotguns. Streamlight states the rail clamp attaches and detaches with no tools and without placing your hands in front of the muzzle.
Key Features
-
High output: 1,000 lumens, 20,000 candela, and a 283-meter beam distance.
-
Tool-free rail clamp: Moves between a handgun and a long gun in seconds.
-
Six rail keys included: GLOCK-style, MIL-STD-1913 Picatinny, Beretta 90two, Smith & Wesson SW99, Smith & Wesson TSW, and SIG SAUER P320 rails.
-

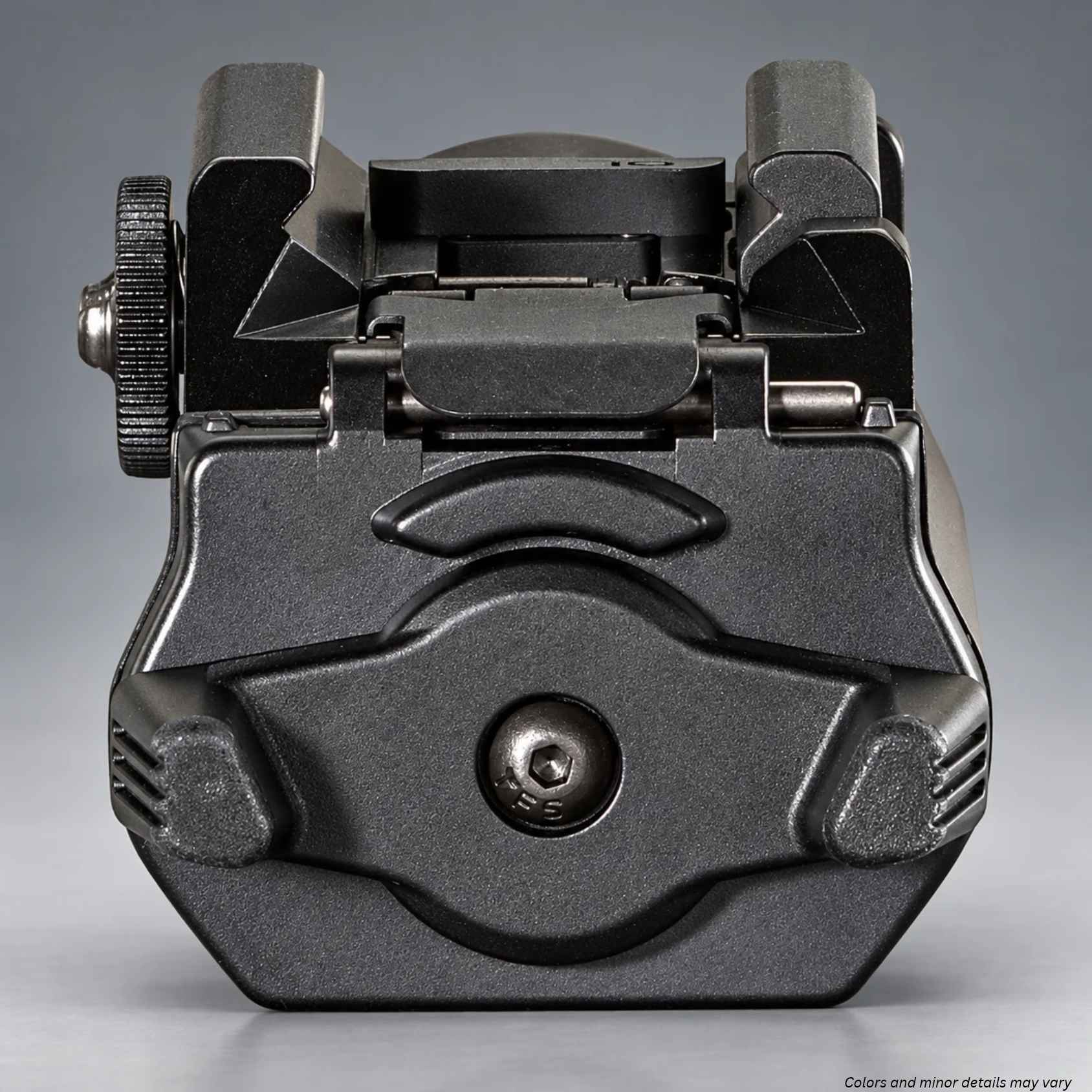

Ambidextrous switch: Momentary or constant-on activation from either side of the gun.
-
User-programmable strobe: Turn the strobe on for signaling and disorienting, or off for steady light only.
-
Tough lens: High-temperature, shock-mounted, impact-resistant BOROFLOAT glass lens.
-
Waterproof: IPX7 rated to 1 meter for 30 minutes.
-

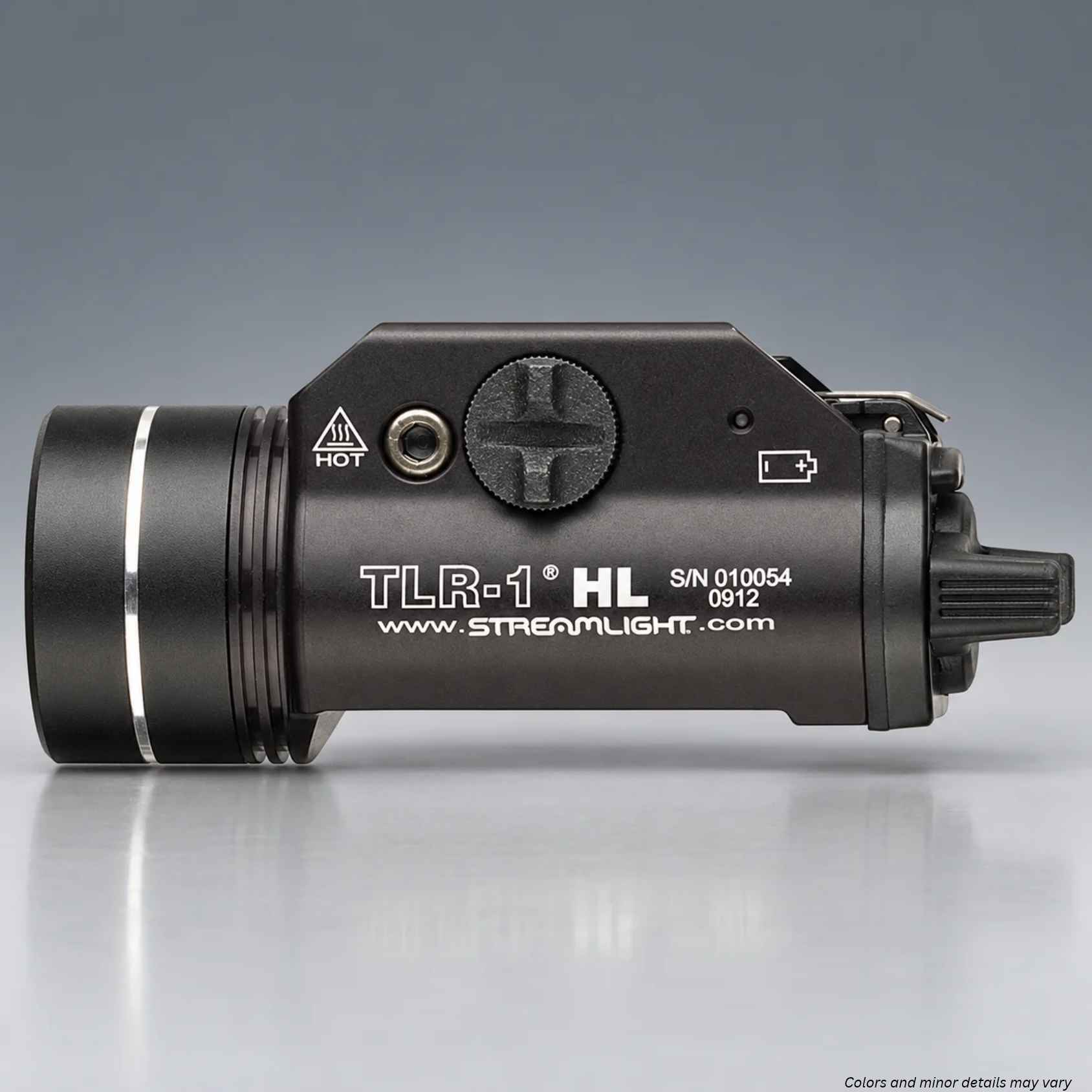

Durable housing: 6000 Series machined aircraft aluminum with a black anodized finish.
-
Remote switch ready: Accepts optional remote pressure and tape switches with the Streamlight TLR Remote Door Switch 69130 or the Streamlight TLR Safe Off Door Switch 69161.
-
Warranty: Streamlight limited lifetime warranty.
Specifications
| Brand |
Streamlight |
| Model |
TLR-1 HL |
| MPN |
69260 |
| SKU |
69260 |
| UPC |
080926692602 |
| Light Output |
1,000 lumens |
| Peak Beam Intensity |
20,000 candela |
| Beam Distance |
283 meters |
| Run Time |
1.5 hours |
| Batteries |
2 x CR123A 3-volt lithium (included) |
| Modes |
Momentary, constant-on, user-programmable strobe |
| Material |
6000 Series machined aircraft aluminum, black anodized |
| Lens |
Shock-mounted, impact-resistant BOROFLOAT glass |
| Water Rating |
IPX7, waterproof to 1 meter for 30 minutes |
| Length |
3.39 in (8.61 cm) |
| Weight |
4.32 oz (122.5 g) |
| Color |
Black |
| Mount |
Tool-free rail grip clamp with rail locating keys |
| Country of Origin |
Assembled in the USA of U.S. and foreign parts |
| Warranty |
Limited lifetime |
Compatibility
-

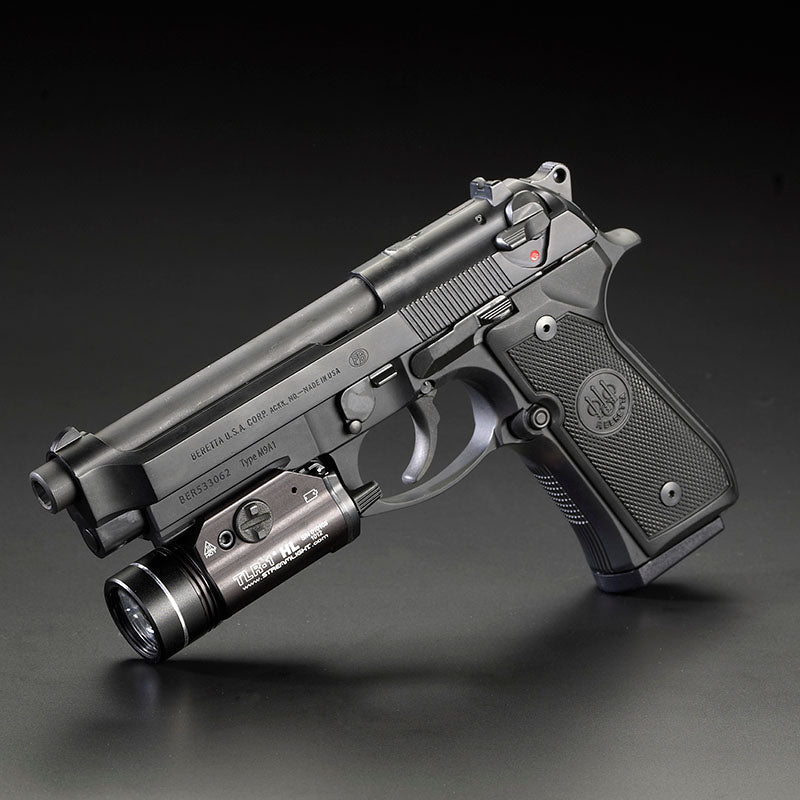

Handguns: Fits GLOCK-style rails, Beretta 90two, Smith & Wesson SW99 and TSW, and SIG SAUER P320 rails with the included keys.
-
Long guns: Fits MIL-STD-1913 Picatinny rails on rifles and shotguns.
-
Holsters: Streamlight states it fits most existing light-bearing holsters built for the TLR-1 series.
-
Remote switches: Remote pressure and tape switches such as the Streamlight TLR Remote Tape Switch 69132 require a 69130 or 69161 remote door switch.
-
Other finishes and kits: Choose the Streamlight TLR-1 HL 69264 earless screw model, the Streamlight TLR-1 HL 69266 in Flat Dark Earth, the Streamlight TLR-1 HL 69267 in Flat Dark Earth Brown, or the Streamlight TLR-1 HL Long Gun Kit 69262. Need a red laser too? Step up to the Streamlight TLR-2 HL 69261.
-
Exclusions: This light needs an accessory rail. It does not fit railless subcompact pistols. Streamlight does not recommend carrying a TLR-equipped firearm without a holster that fully covers the trigger guard.
Compatible Streamlight Accessories
Streamlight lists these accessories for the TLR-1 HL. Remote pressure switches plug into a 69130 or 69161 remote door switch.
Intended Users
Patrol officers and deputies use the TLR-1 HL to search buildings, alleys, and vehicles while keeping both hands on a duty pistol. SWAT and tactical teams mount it on patrol rifles and shotguns for room clearing. Military personnel rely on its waterproof aluminum body in harsh field conditions. Armed security officers carry it for night patrols, and homeowners keep it on a home defense handgun or carbine to identify what is in the house before acting.
What's Included
- 1 x Streamlight TLR-1 HL weapon light, black
- 1 x set of rail locating keys (GLOCK-style, Picatinny, Beretta 90two, S&W SW99, S&W TSW, SIG SAUER P320)
- 2 x CR123A 3-volt lithium batteries
Not included: light-bearing holster, spare Streamlight CR123A Lithium Batteries 2 Pack 85175, remote door switch, remote pressure or tape switch, and a replacement Streamlight TLR-1/TLR-2 Key Kit 69175. Order these separately.
