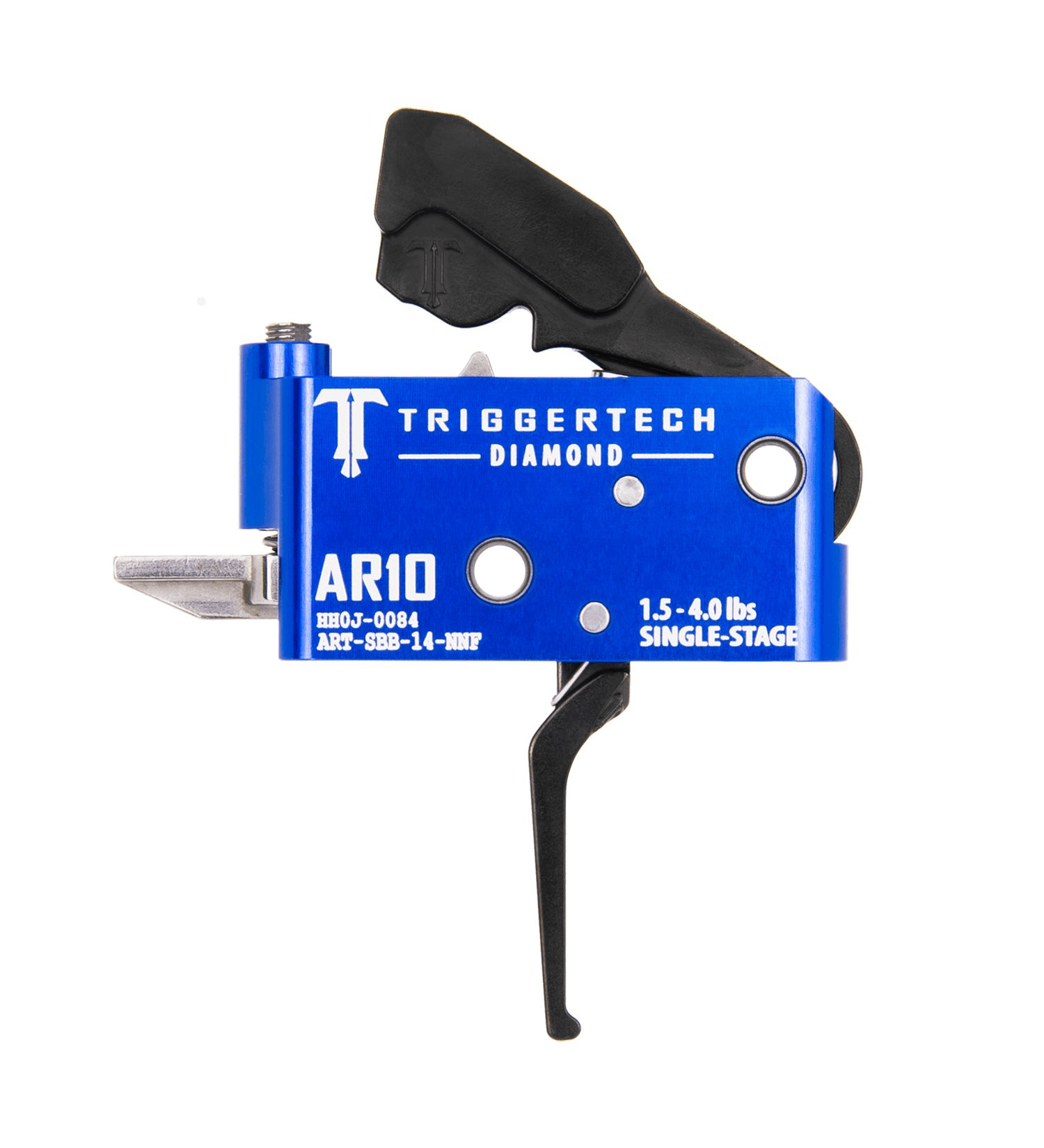

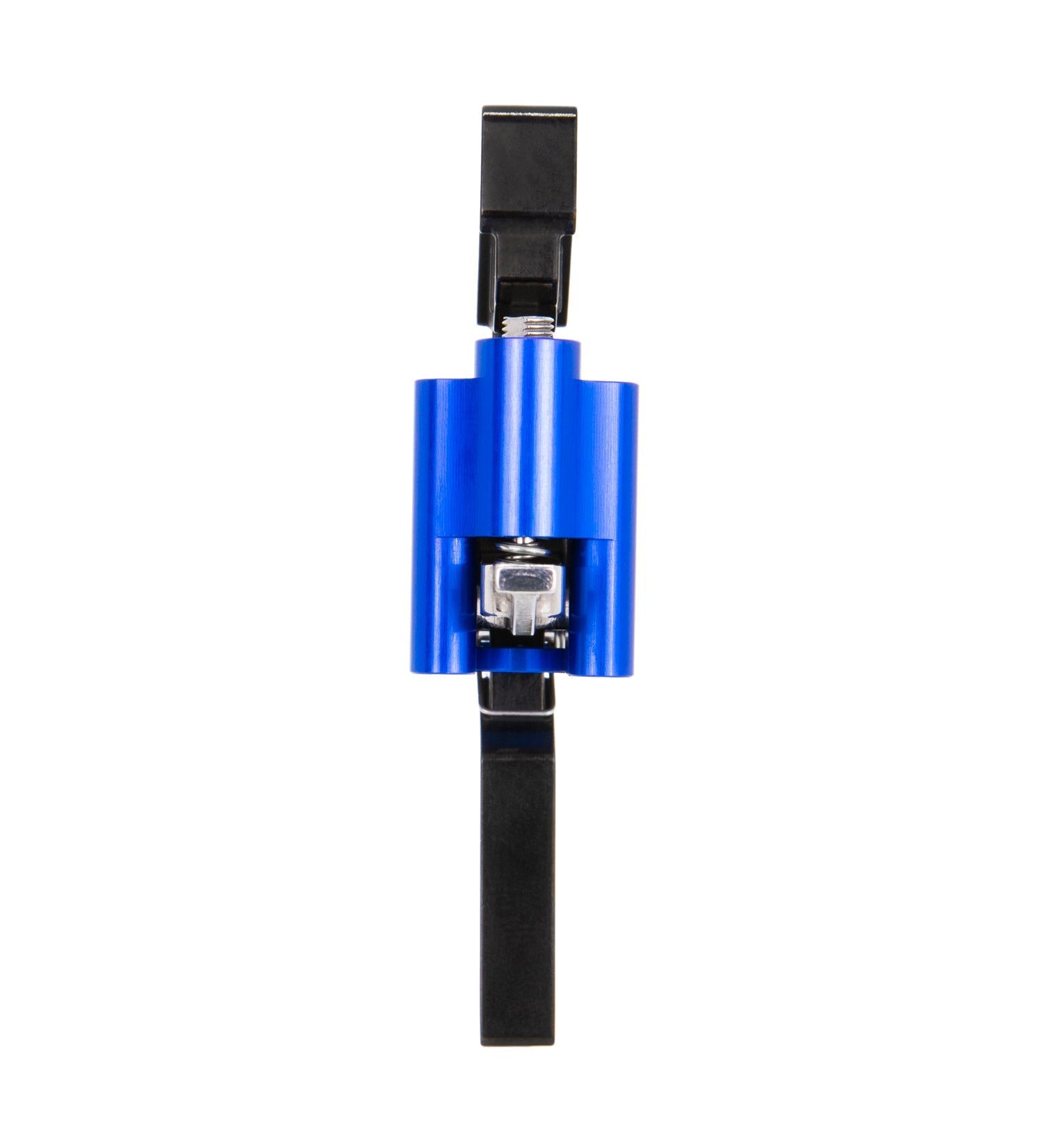

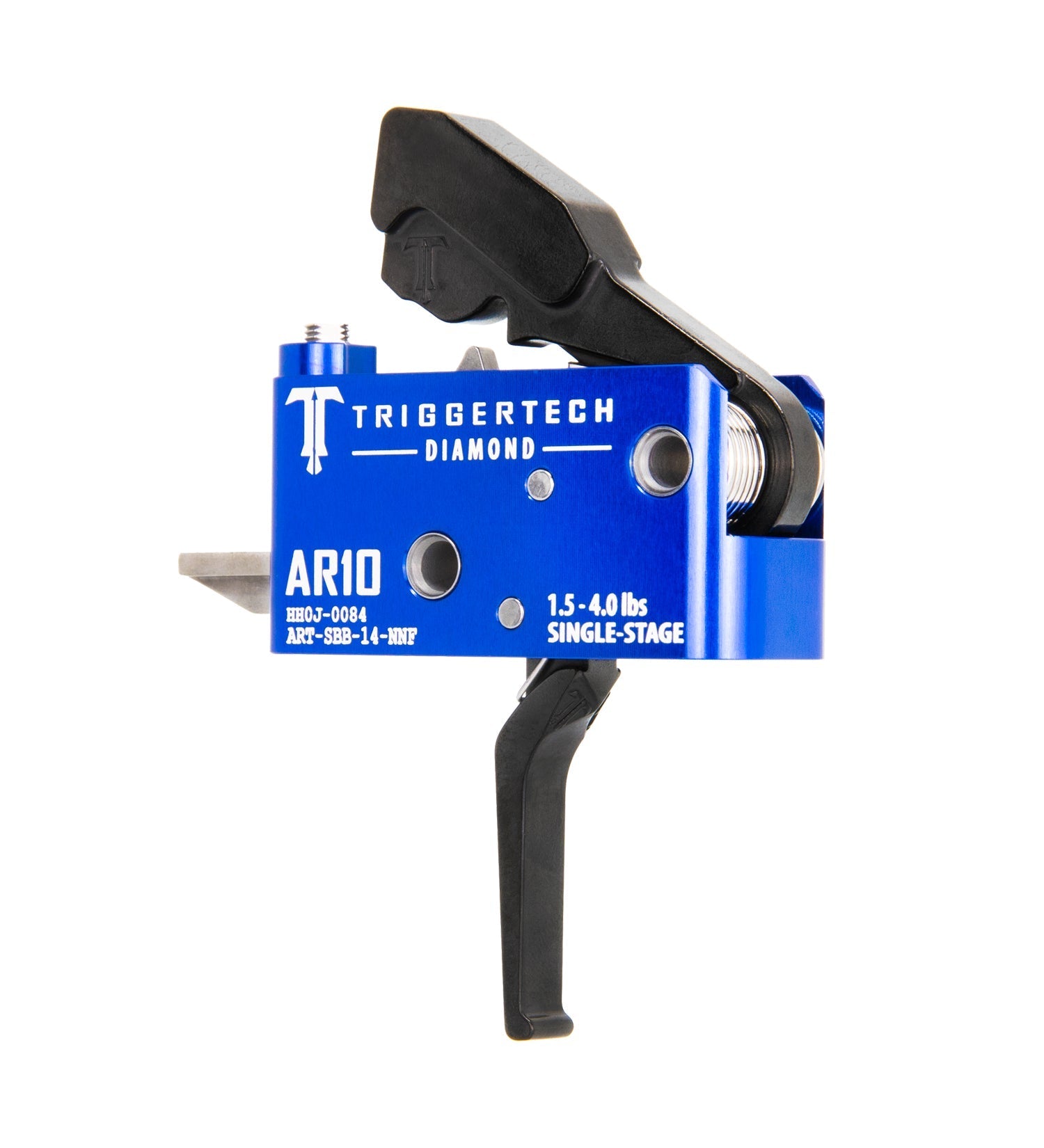

Overview of the TriggerTech AR10 Single-Stage Diamond Trigger | MPN: ART-SAB-14-NN

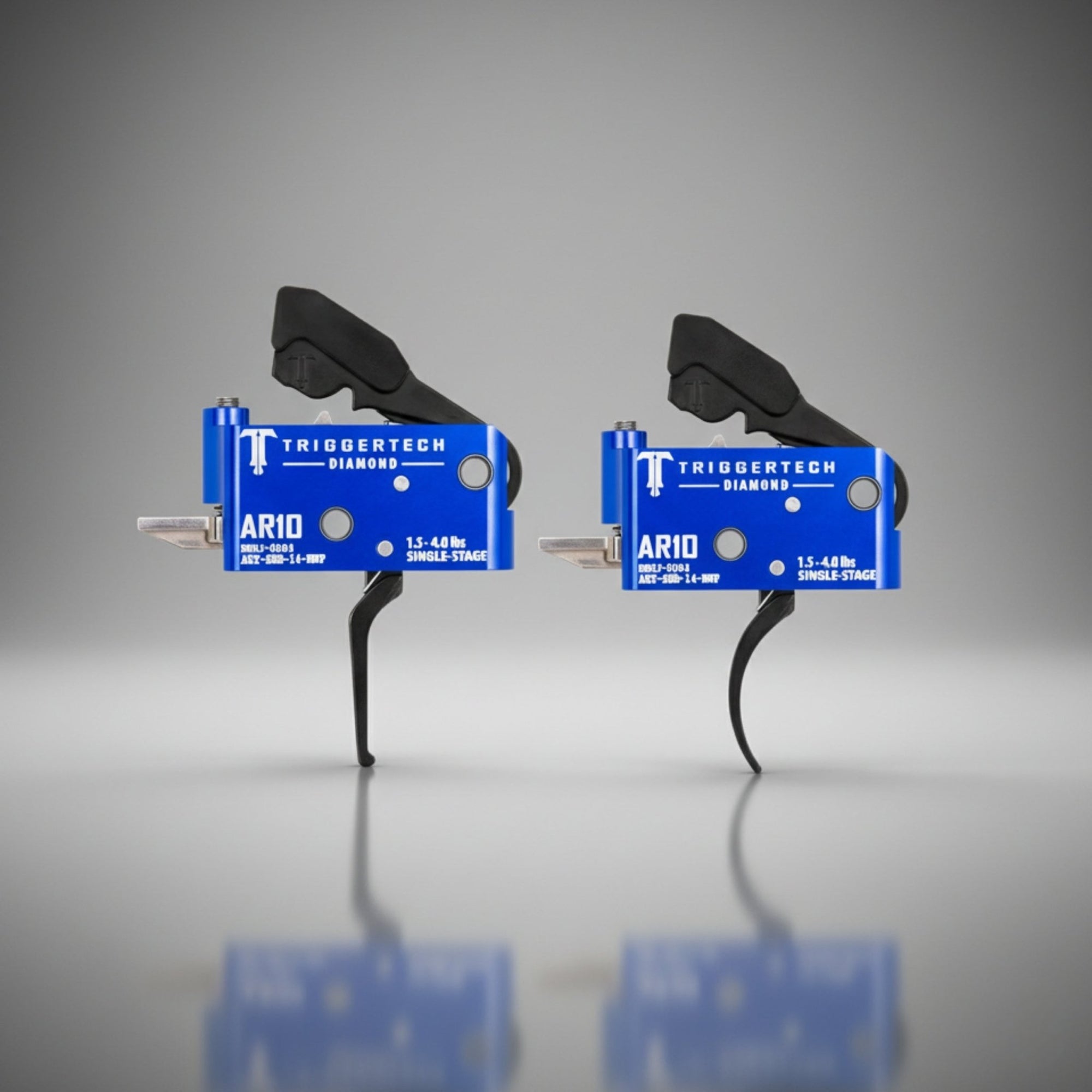

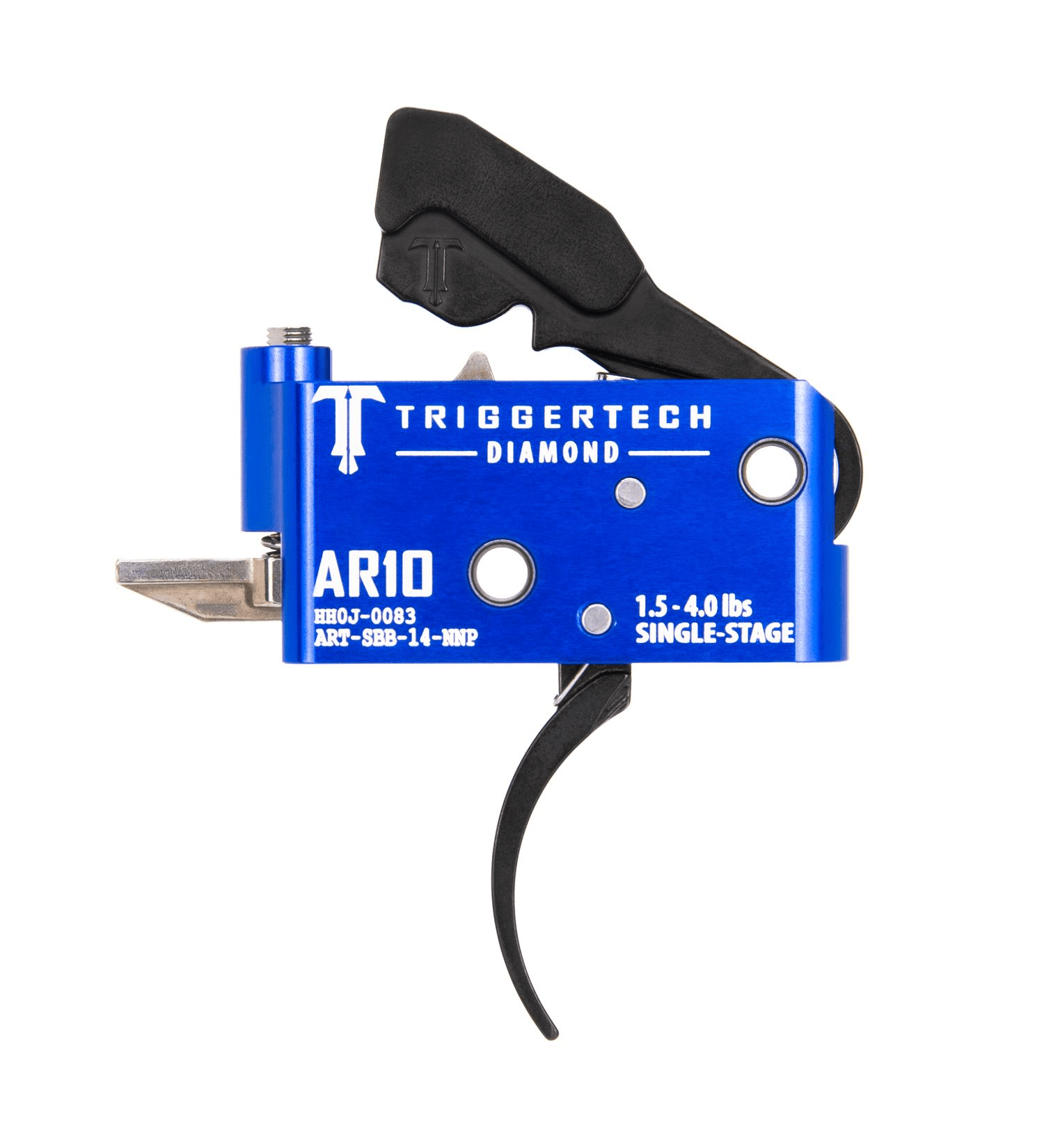

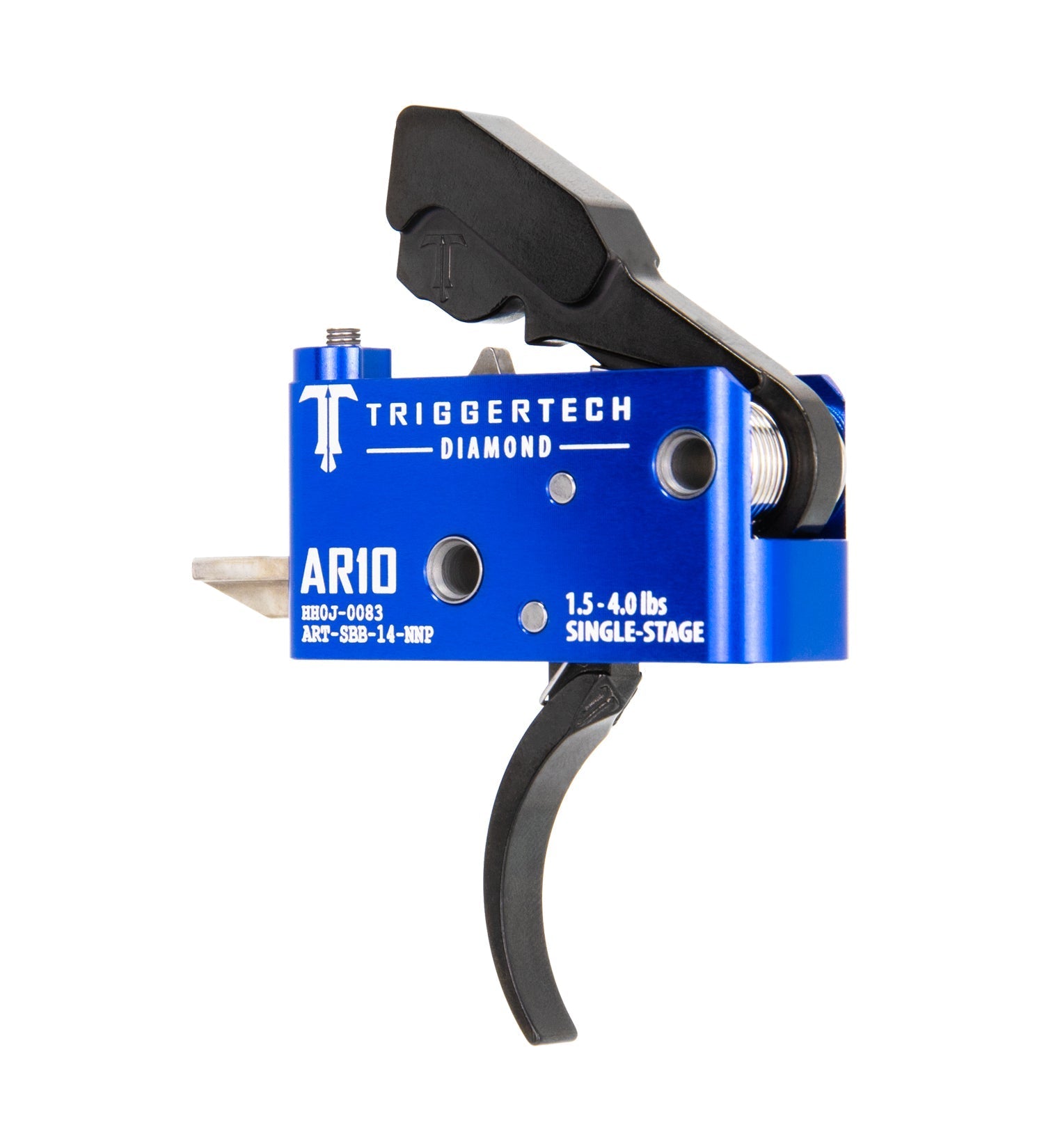

You want a clean break, fast reset, and trust under pressure. The TriggerTech AR10 Single-Stage Diamond Trigger delivers a true zero-creep break, less than 0.015 inch overtravel, and a sub 0.030 inch reset. Adjust pull weight from 1.5 to 4.0 lb in precise 2 oz steps with CLKR while keeping full hammer force for reliable primer ignition. Choose the Pro Curved lever, MPN ART-SAB-14-NNP, or the Flat Straight lever, MPN ART-SAB-14-NNF.
Built for consistency and control

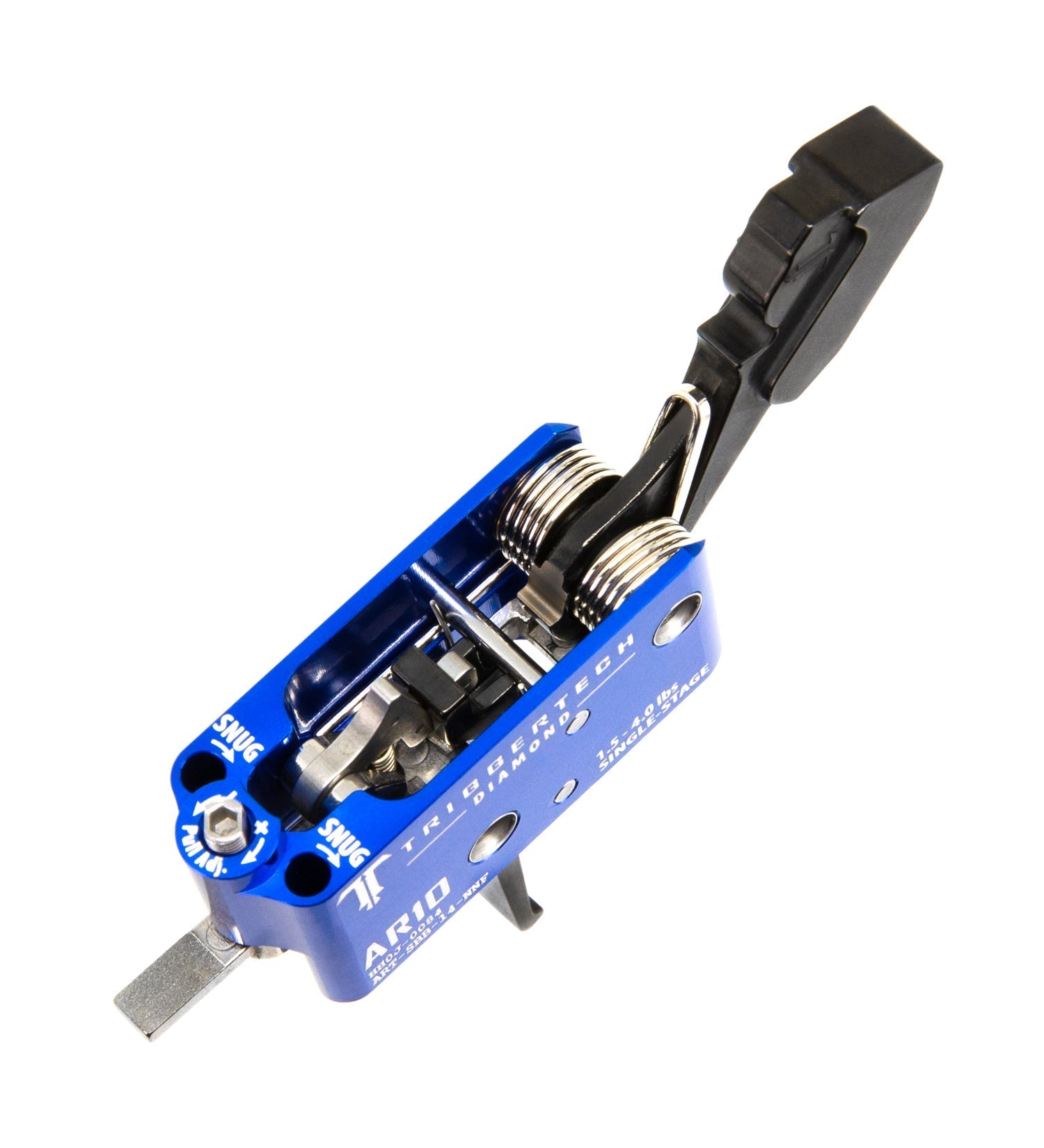

Zero Creep Technology and hardened 440C stainless internals keep your pull smooth and repeatable in dust, rain, and cold. The 7075 aluminum housing and PVD finished externals resist wear through high round counts. Most shooters feel the break about a half pound lighter than friction designs at the same setting. Ideal for precision shooting, 3-Gun, duty rifles, and rugged hunting. All pull weights and measurements are approximate.
Key Features
-
Action: Single stage with true zero creep.
-
Pull Weight: 1.5 to 4.0 lb, CLKR 2 oz increments.
-
Reset: Less than 0.030 in, tactile mid force.
-
Overtravel: Less than 0.015 in for quick follow-up shots.
-
Materials: 440C stainless key parts, 7075 aluminum housing.
-
Finish: PVD black external stainless components.
-
Technology: Zero Creep, TKR, FLTWR, CLKR.
-
Reliability: Full hammer strike at all settings.
-
Compatibility: AR-10 lowers with 0.154 in mil-spec pins.
-
Warranty: Product lifetime
Compatibility
-
Platforms: AR-10 pattern receivers with standard 0.154 in pins.
-
Selectors: Works with most mil-spec safeties.
-
Exclusions: Not for large-pin or 0.170 in lowers.
-
Use Cases: Precision, competition, law enforcement, hunting.
What’s Included
-
Trigger Module: AR10 Diamond Single-Stage cassette.
-
Adjustment Tool: Hex key for CLKR pull weight.
-
Hardware: Receiver set screws. Trigger pins not included.
-
Guide: Quick start instructions.
Frequently Asked Questions about AR10 Single-Stage Diamond Trigger
Question 1
Will it fit my AR-10 with standard pins?
Yes. It fits 0.154 in mil-spec pins. It will not fit large-pin lowers.
Question 2
Which MPN is curved vs flat?
Pro Curved is ART-SAB-14-NNP. Flat Straight is ART-SAB-14-NNF.
Question 3
Does changing pull weight affect primer strikes?
No. Hammer force stays full across the entire range.
Question 4
What pull weight should I start with?
Set 2.5 to 3.0 lb for general use, then fine tune to preference.
Question 5
Do I need threadlocker on the set screws?
Use a small amount of medium threadlocker after final adjustment.
Why Buy from WCUniforms
WCUniforms is owned by a former law enforcement officer, EMT, and veterans of the US Marine Corps and Coast Guard. We have used the products we sell in real-world, high-pressure situations, so we know they perform when it matters most. Most orders ship the same day, and we aim to ship in-stock items within 48 business hours. You also get hassle-free 30-day returns (with a few exceptions) and real-time SMS and email tracking updates on every order. Need help? Our team is ready with instant chat during business hours or by phone at 855-452-4440. Shop now and experience the WCUniforms difference with fast shipping, proven gear, and customer support you can trust.
All pull weights and measurements are approximate.
Note: The installation guide is directed to experienced professional gunsmiths who understand the workings of their AR rifle and know how to fully detail strip the lower receiver. If you do not have these skills, we strongly suggest you retain the services of a competent professional gunsmith to install your trigger, and perform all important safety checks.
